Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | D-FJ9M |
| Country of Manufacture | Italy |
| Height | 1.4 |
| Length | 8.6 |
| Width | 1.4 |
| Weight | 2.64 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 7/8-12 (-24) |
| Side 2 Type | JIC |
Description

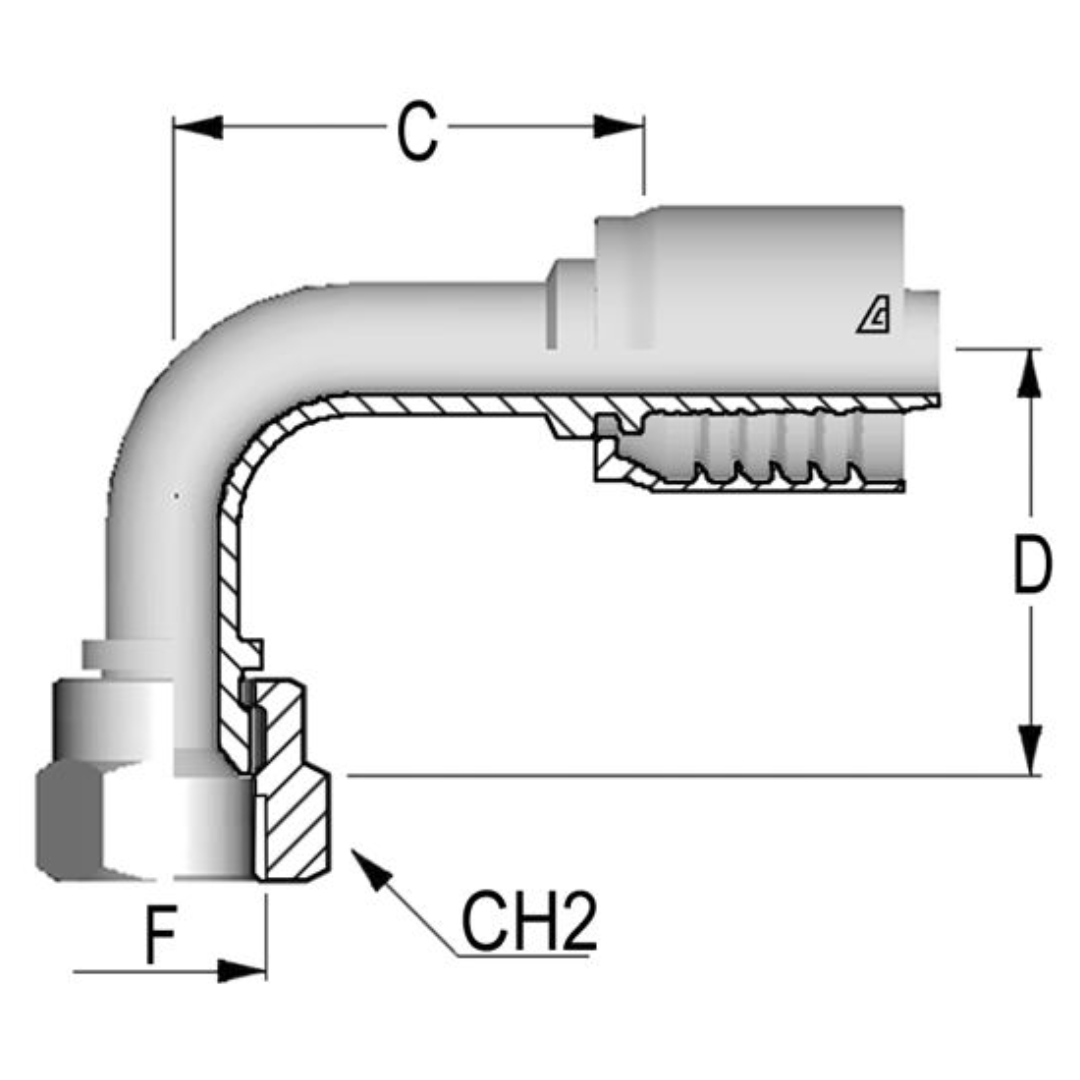

The Alfagomma One-Piece AlfaCrimp D-FJ9M Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° JIC (Joint Industrial Council) female swivel connection with a 37° seat and a medium drop design. This fitting uses a non-skive crimp, which means you don’t need to remove or prepare any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing high strength and resistance to pressure. The 90° JIC female swivel connection with medium drop ensures a durable, reliable seal, making this fitting ideal for high-pressure fluid power systems and industrial applications that require strong, long-lasting connections.
