Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | D-FBO9 |
| Country of Manufacture | Italy |
| Height | 1.4 |
| Length | 8.959999999999999 |
| Width | 1.4 |
| Weight | 2.7 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/2-11 (-24) |
| Side 2 Type | BSP |
Description

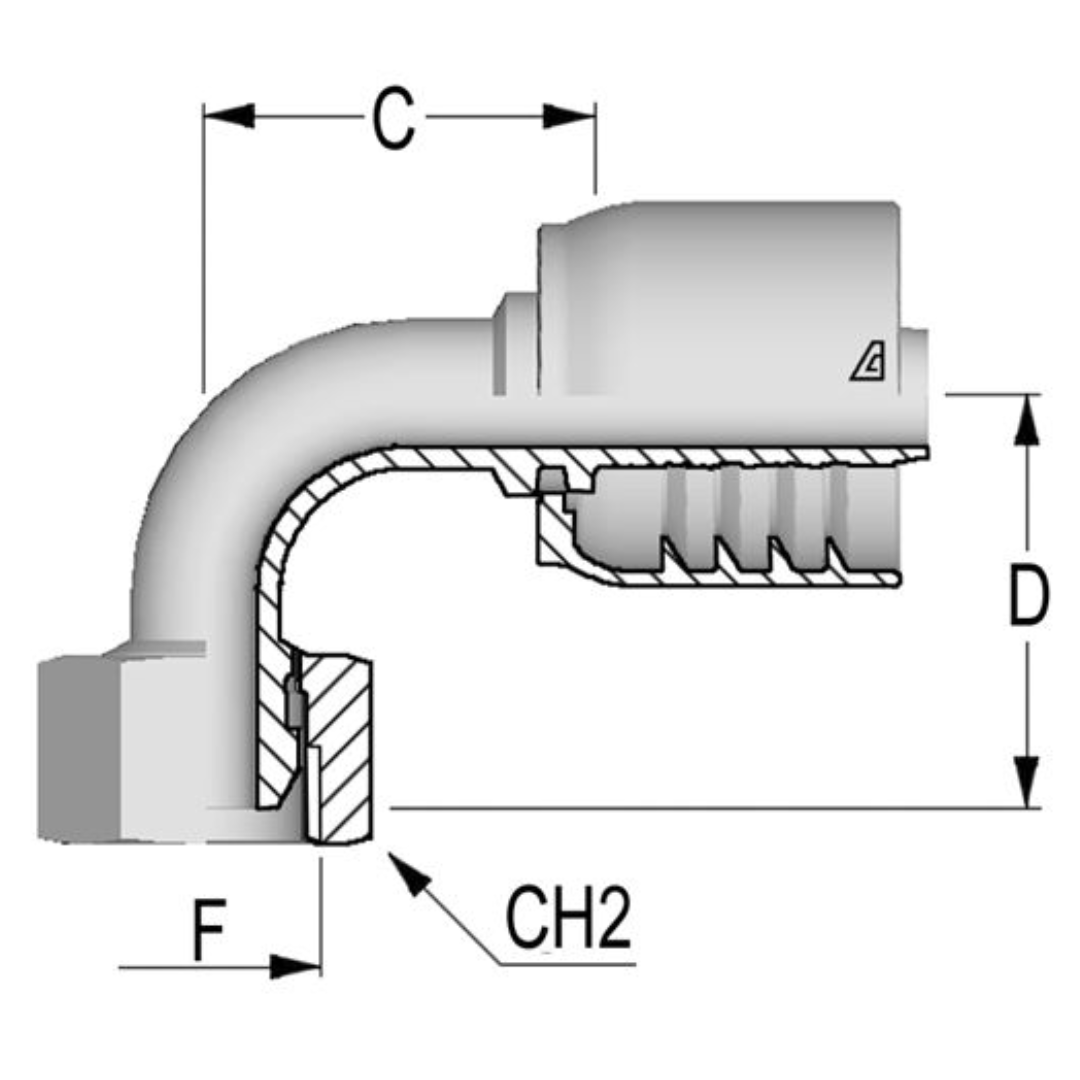

The Alfagomma One-Piece AlfaCrimp D-FBO9 Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° BSP (British Standard Pipe) O-ring female swivel connection with a 60° cone. This fitting features a non-skive crimp design, meaning you don't need to remove or prep any part of the hose before installation, making it quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering increased strength and resistance to high pressures. The BSP O-ring female swivel 60° cone ensures a durable and reliable connection, making this fitting ideal for high-pressure fluid systems and industrial applications where a secure, long-lasting seal is essential.
