D-2020-FO9M : Alfagomma 90-Degree Steel Fitting, 1 1/4 (-20) Hose x 1 11/16-12 (-20) Female ORFS Medium Drop

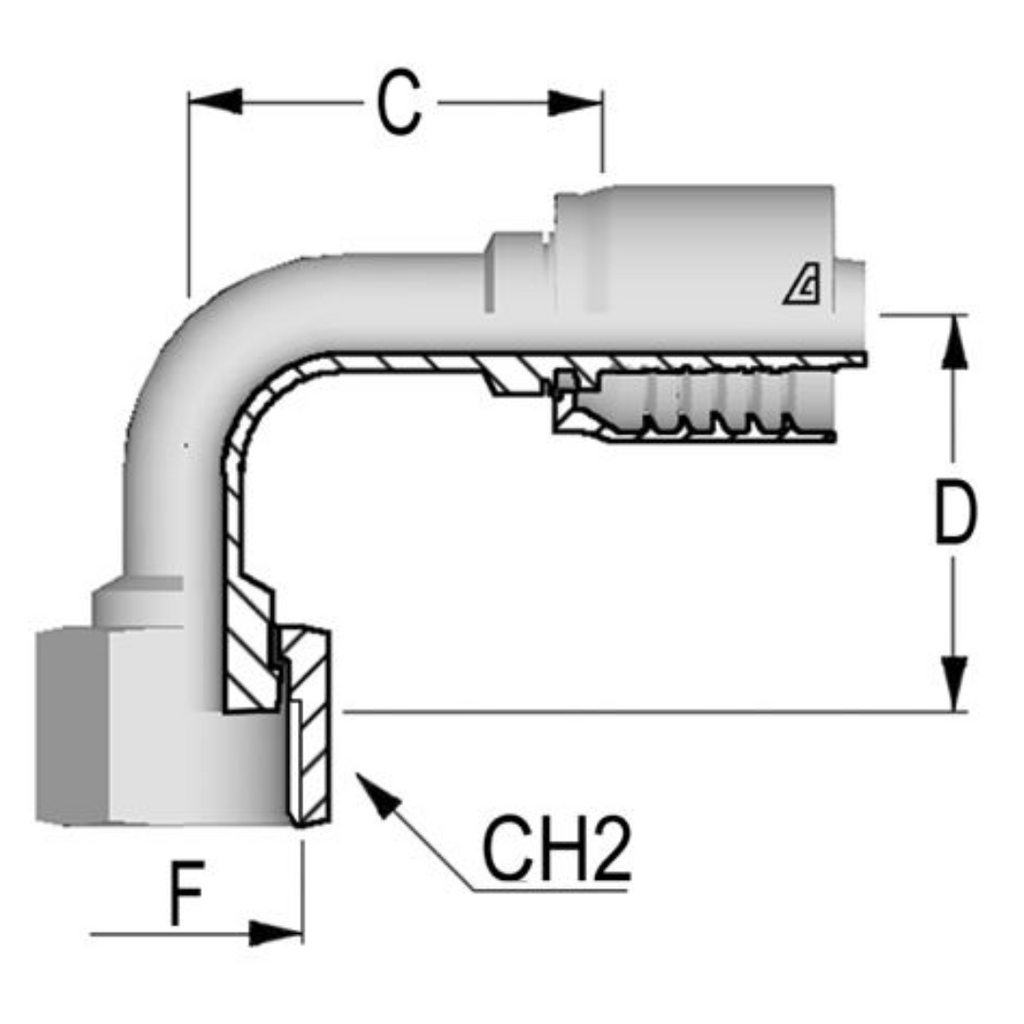

The Alfagomma One-Piece AlfaCrimp D-FO9M Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° ORFS (O-Ring Face Seal) female connection, following the ISO 12151-1 standard with a medium drop design. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° ORFS female connection with a medium drop ensures a durable, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
