Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | '6000 |
| Fitting Style | Rigid |
| Series | D-C629 |
| Country of Manufacture | Italy |
| Height | 1.4 |
| Length | 9.31 |
| Width | 1.4 |
| Weight | 2.36 |
| Side 1 Size | 1 1/4 (-20) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1.25" (-20) |
| Side 2 Type | Code 62 |
Description

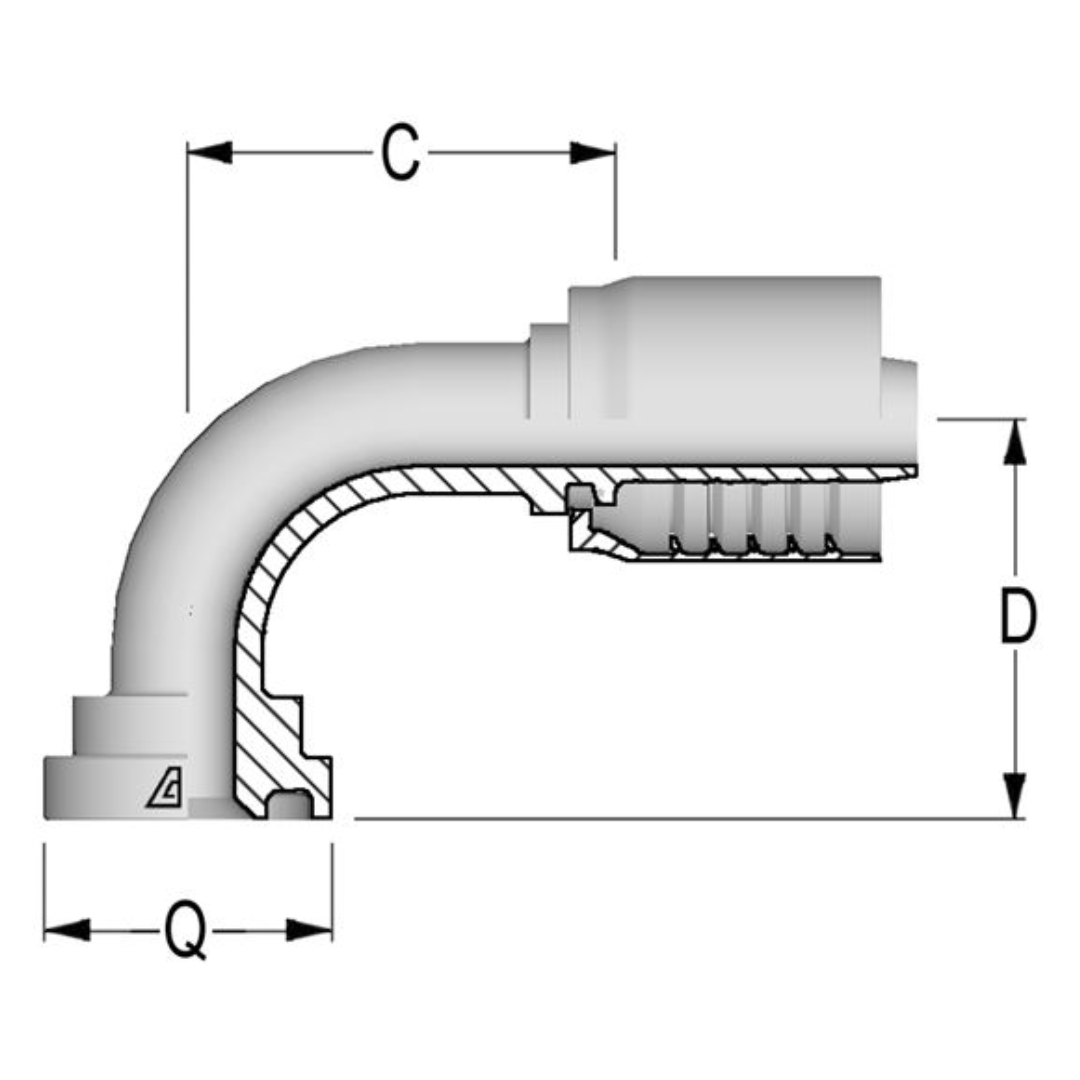

The Alfagomma One-Piece AlfaCrimp D-C629 Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° flange with a 6000 PSI SAE J518 Code 62 flange. This fitting uses a non-skive crimp design, which means there’s no need to remove or prep any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° flange with a 6000 PSI rating and SAE J518 Code 62 ensures a durable, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting seals.
