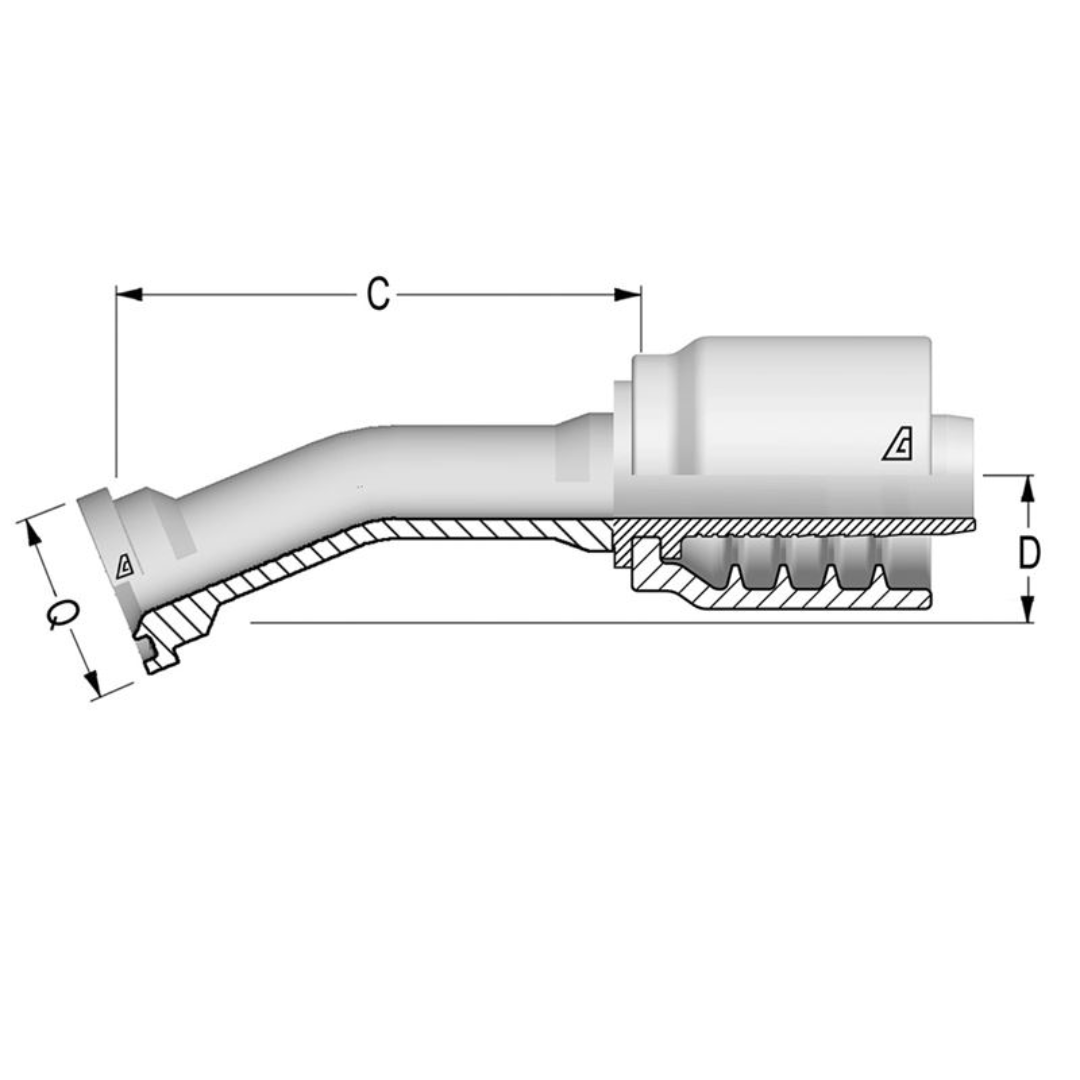

D-2020-C612 : Alfagomma 22.5-Degree Steel Fitting, 1 1/4 (-20) Hose x 1.25" (-20) Code 61 Flange, 4000psi

The Alfagomma One-Piece AlfaCrimp D-C612 Fitting is a 22.5-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 22.5° O-ring flange with a SAE J518 Code 61 flange. This fitting uses a non-skive crimp design, meaning there's no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing strength and resistance to high-pressure environments. The 22.5° O-ring flange with SAE J518 Code 61 ensures a secure, reliable seal, making this fitting ideal for fluid power systems in high-pressure applications that require durable, long-lasting connections.
