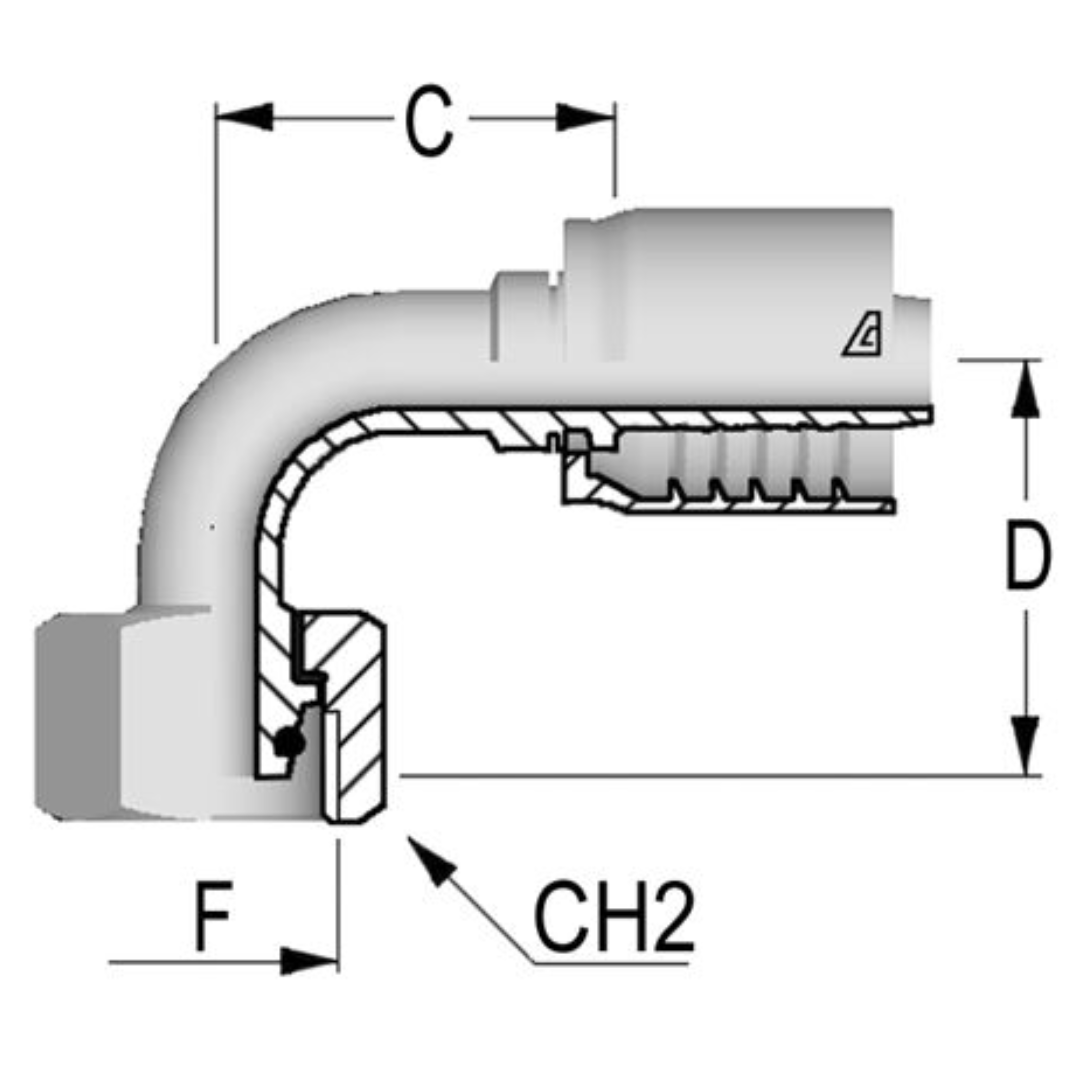

D-1642-FM9H : Alfagomma 90-Degree Steel Fitting, 1 (-16) Hose x M42x2 (-S30) Female Heavy Duty DIN Tube with O-Ring

The Alfagomma One-Piece AlfaCrimp D-FM9H Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° Metric O-Ring female swivel connection with a 24° seat, following the DIN 3865 Heavy standard. This fitting uses a non-skive crimp design, which means there’s no need to remove or prep any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering enhanced strength and resistance to pressure. The 90° Metric O-Ring female swivel 24° seat ensures a durable, reliable connection, making this fitting ideal for high-pressure fluid power systems and industrial applications that require secure, long-lasting seals in demanding environments.
