Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MNPT |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 4.67 |
| Width | 1.2 |
| Weight | 1.23 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1 1/4-11 1/2 (-20) |
| Side 2 Type | NPTF |
Description

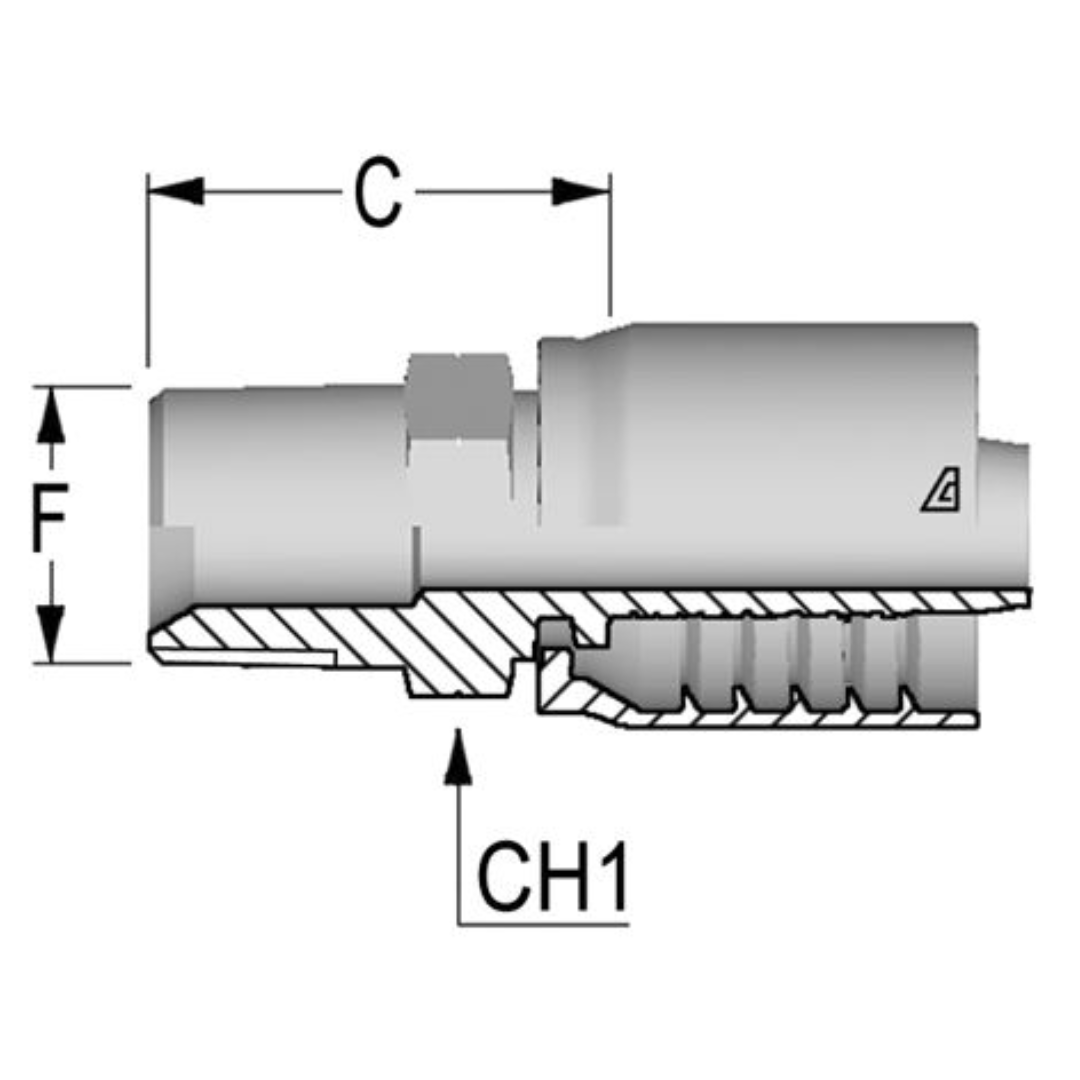

The Alfagomma One-Piece AlfaCrimp D-MNPT Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an NPTF (National Pipe Tapered Fuel) male 60° seat. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making it quicker and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to high pressure. The fitting is suitable for wire-braided hoses with an inside diameter (ID) greater than 1" and for specific Alfabiotech 3000 and 4000 hoses, ensuring a reliable, durable connection in high-pressure fluid power systems.
