Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 60-Degree |
| Pressure Rating | '4000 |
| Fitting Style | Rigid |
| Series | D-C616 |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 10.39 |
| Width | 1.2 |
| Weight | 1.58 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1.25" (-20) |
| Side 2 Type | Code 61 |
Description

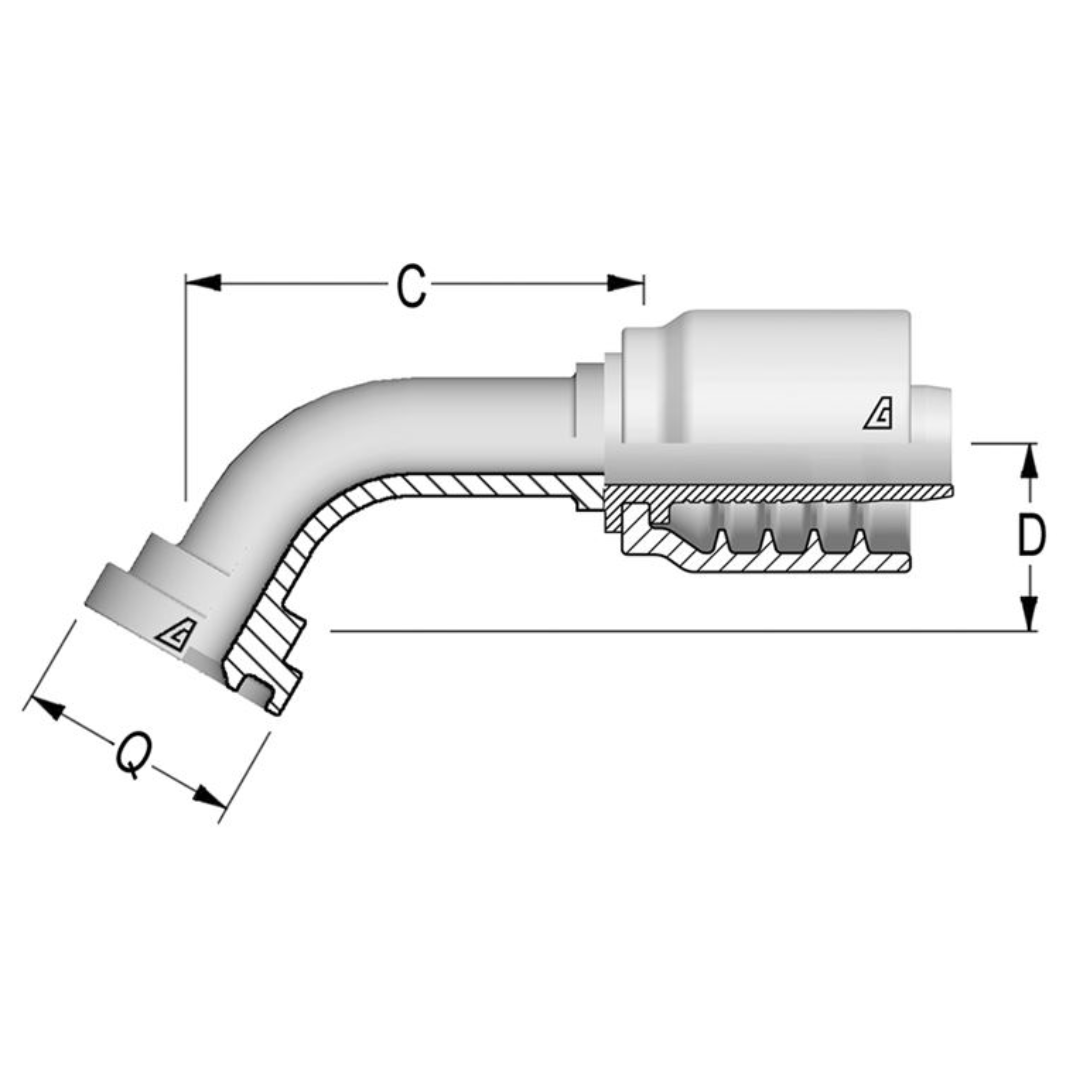

The Alfagomma One-Piece AlfaCrimp D-C616 Fitting is a 60-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 60° O-ring flange with a SAE J518 Code 61 flange. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering increased strength and resistance to high pressure. The 60° O-ring flange with SAE J518 Code 61 ensures a reliable, durable connection, making this fitting ideal for high-pressure fluid systems and industrial applications that require secure, long-lasting seals.
