Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | D-MNPS |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 5.7 |
| Width | 1.2 |
| Weight | 1.06 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1-11 1/2 (-16) |
| Side 2 Type | NPTF |
Description

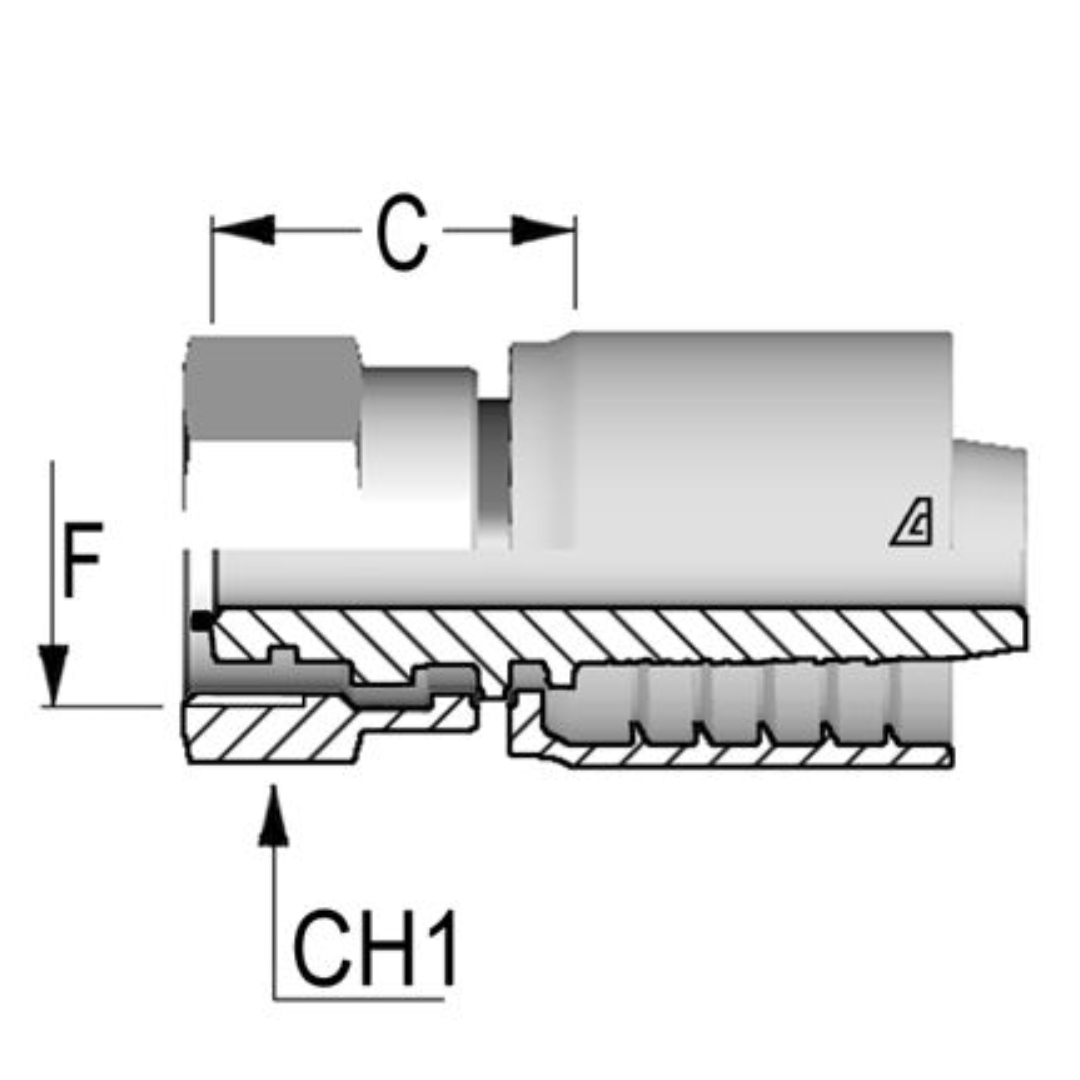

The Alfagomma One-Piece AlfaCrimp D-MNPS Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an NPTF (National Pipe Tapered Fuel) male swivel connection with a 60° seat. This fitting features a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process quicker and easier. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering high strength and resistance to pressure. The fitting is suitable for wire-braided hoses with an inside diameter (ID) greater than 1" and for specific Alfabiotech 3000 and 4000 hoses, ensuring a reliable and durable connection in high-pressure fluid power systems, ideal for heavy-duty applications.
