Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MBPP |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 3.98 |
| Width | 1.2 |
| Weight | 1.01 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1-11 (-16) |
| Side 2 Type | BSP |
Description

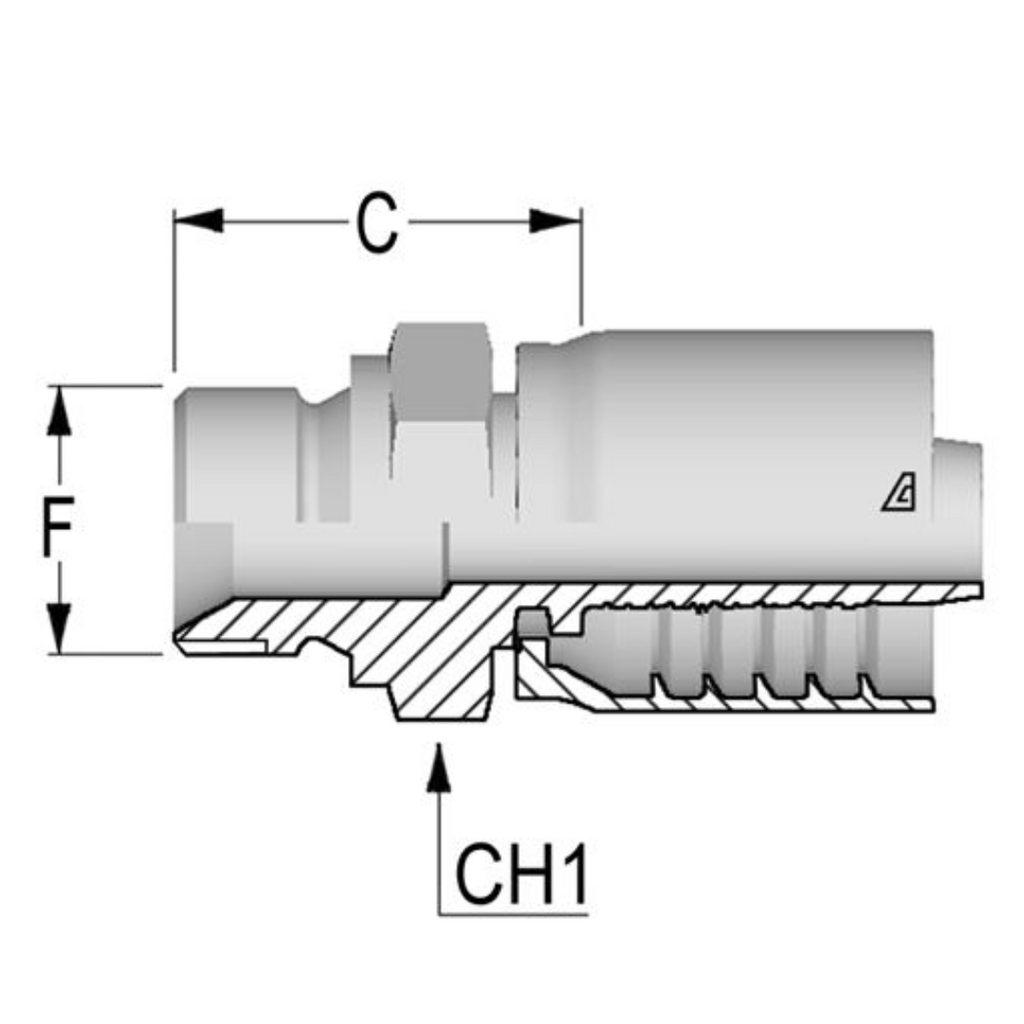

The Alfagomma One-Piece AlfaCrimp D-MBPP Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a BSP (British Standard Pipe) male parallel connection with a 60° seat. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing extra strength and resistance to pressure. The BSP male parallel connection with a 60° seat ensures a reliable and durable seal, making this fitting ideal for high-pressure fluid systems and industrial applications that require secure, long-lasting connections.
