Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-FPMS |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 3.4899999999999998 |
| Width | 1.2 |
| Weight | 1.02 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1-11 1/2 (-16) |
| Side 2 Type | NPSM |
Description

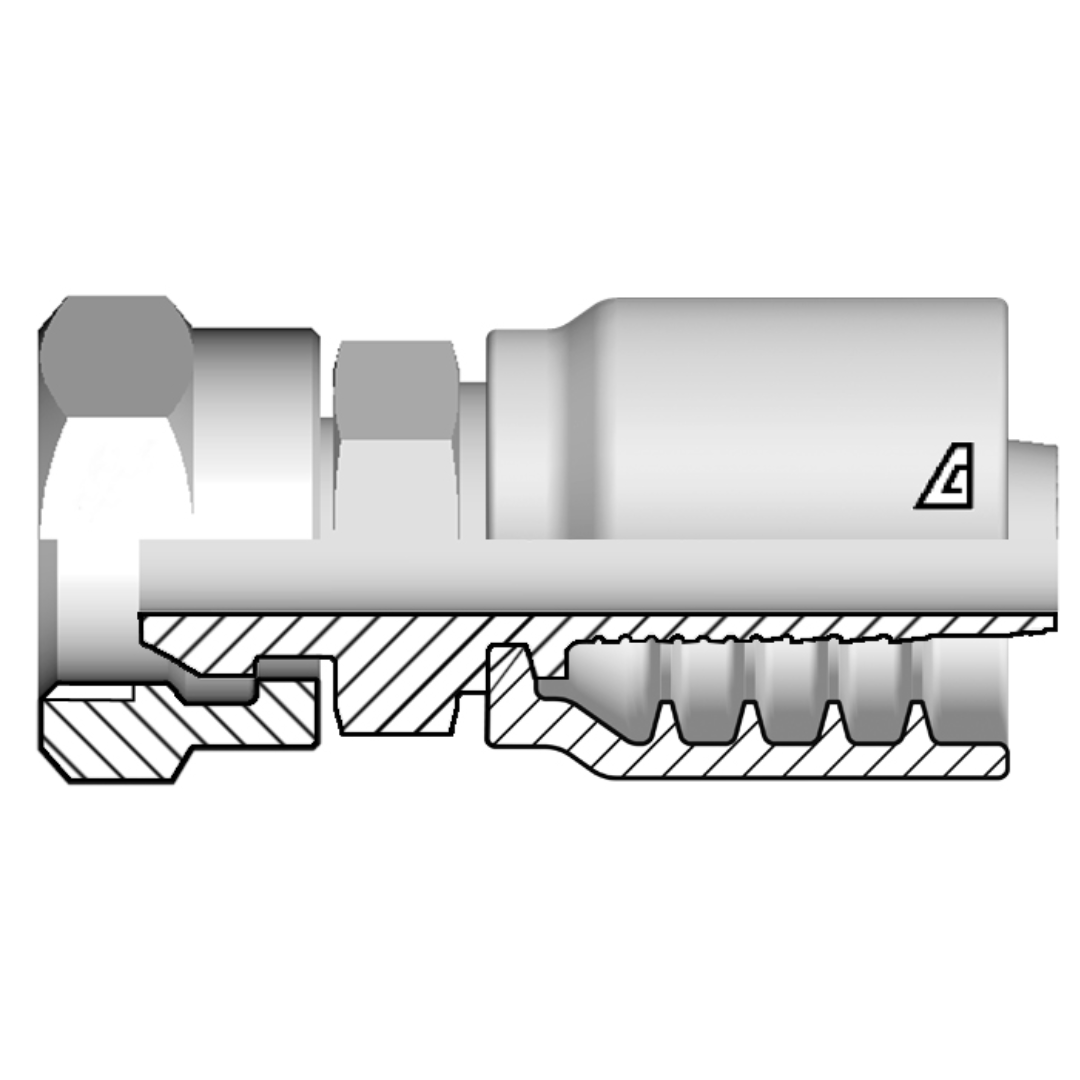

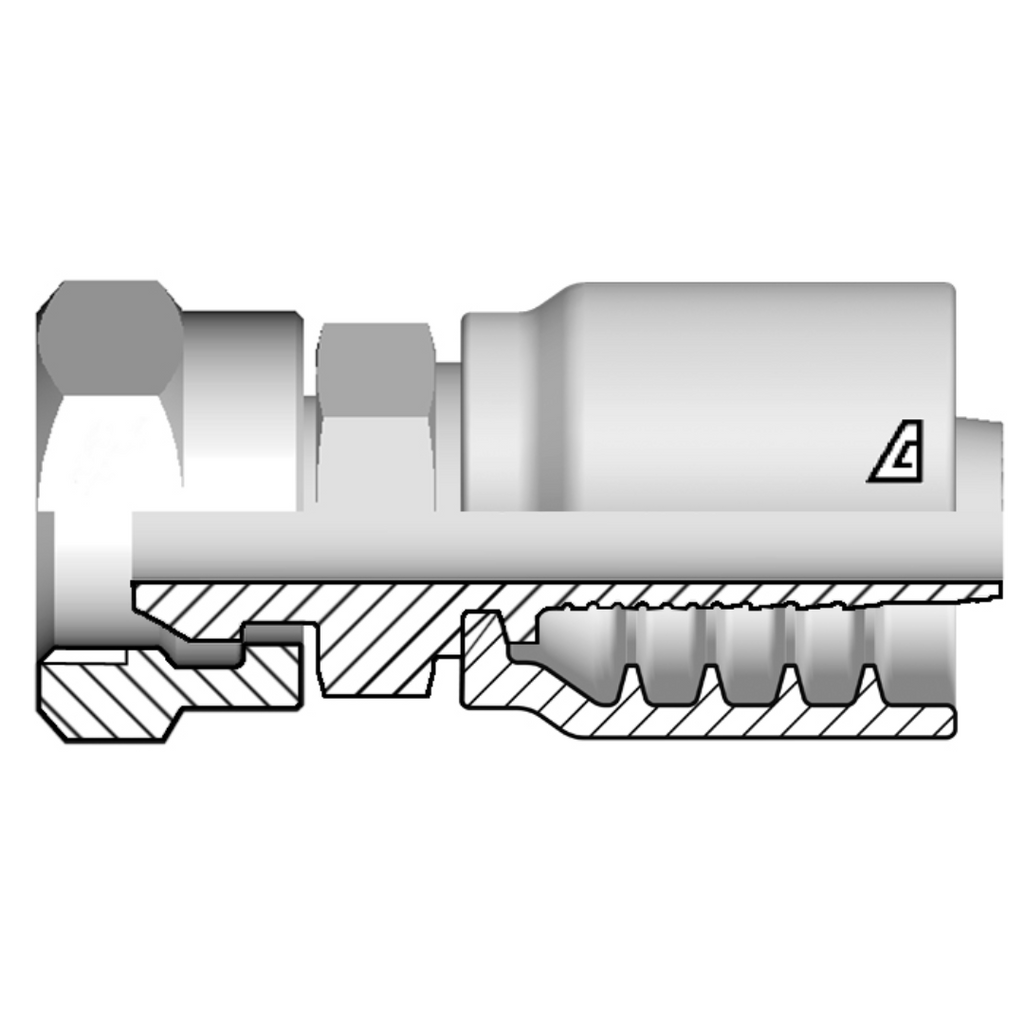

The Alfagomma One-Piece AlfaCrimp D-FPMS Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an NPSM (National Pipe Straight Mechanical) female connection. This fitting uses a non-skive crimp design, meaning there's no need to remove or prepare any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering high strength and resistance to pressure. The fitting is designed for wire-braided hoses with an inside diameter (ID) greater than 1" and for specific Alfabiotech 3000 and 4000 hoses, ensuring a durable, reliable connection for high-pressure fluid power systems and industrial applications.
