Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-FNPR |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 4.42 |
| Width | 1.2 |
| Weight | 1.01 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1-11 1/2 (-16) |
| Side 2 Type | NPTF |
Description

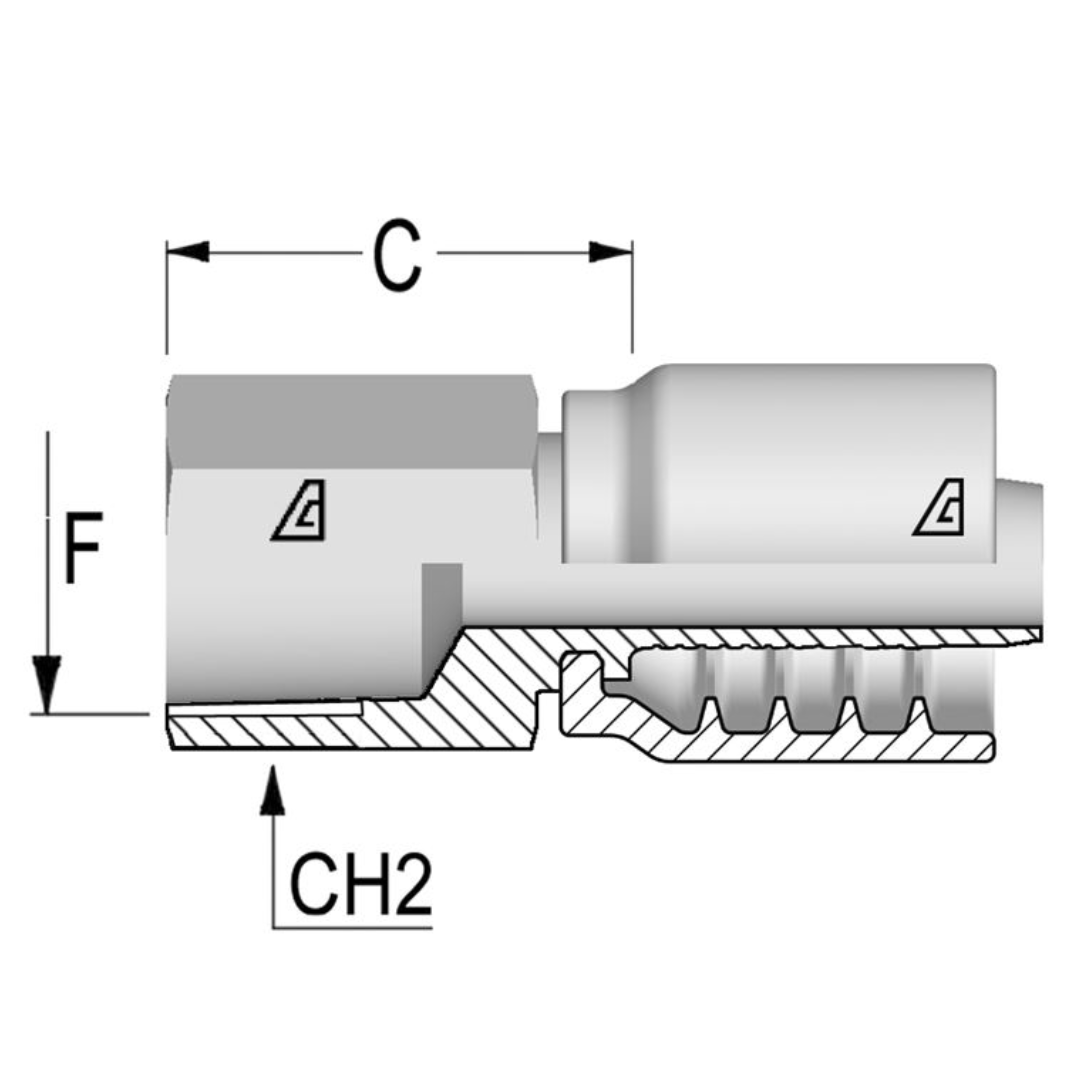

The Alfagomma One-Piece AlfaCrimp D-FNPR Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an NPTF (National Pipe Tapered Fuel) female rigid connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing extra strength and resistance to high pressure. The fitting is ideal for hoses with an inside diameter (ID) greater than 1" and for specific Alfabiotech 3000 and 4000 hoses, ensuring a durable and reliable connection in high-pressure fluid power systems for industrial applications.
