Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | D-FO9L |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 4.93 |
| Width | 1 |
| Weight | 1.03 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 3/16-12 (-12) |
| Side 2 Type | ORFS |
Description

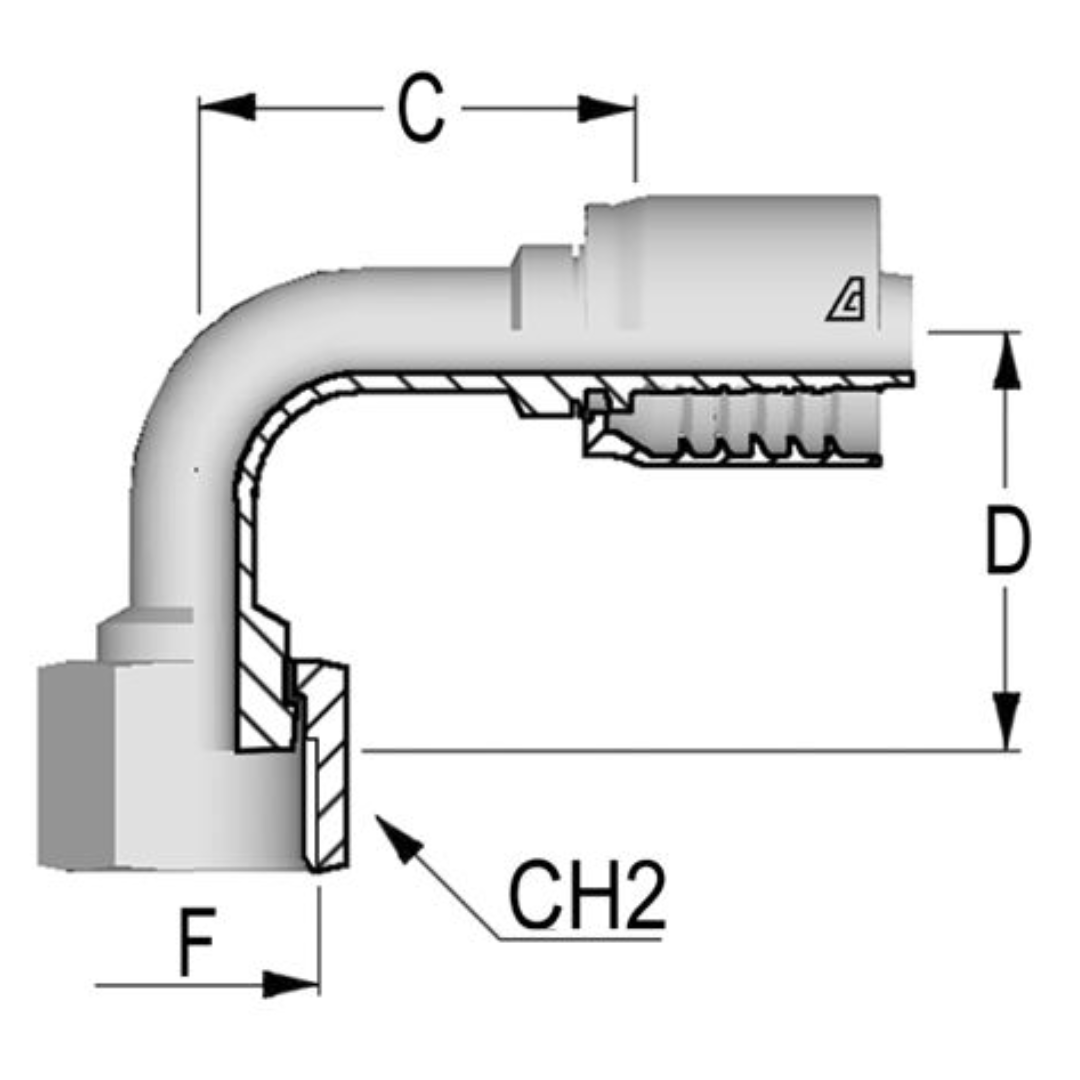

The Alfagomma One-Piece AlfaCrimp D-FO9L Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° ORFS (O-Ring Face Seal) female connection, following the ISO 12151-1 standard with a long drop design. This fitting uses a non-skive crimp, meaning there’s no need to remove or prepare any part of the hose before installation, making it faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° ORFS female connection with a long drop ensures a durable, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections with more hose flexibility.
