Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | D-FJ9S |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 5.7299999999999995 |
| Width | 1 |
| Weight | 0.86 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 1/16-12 (-12) |
| Side 2 Type | JIC |
Description

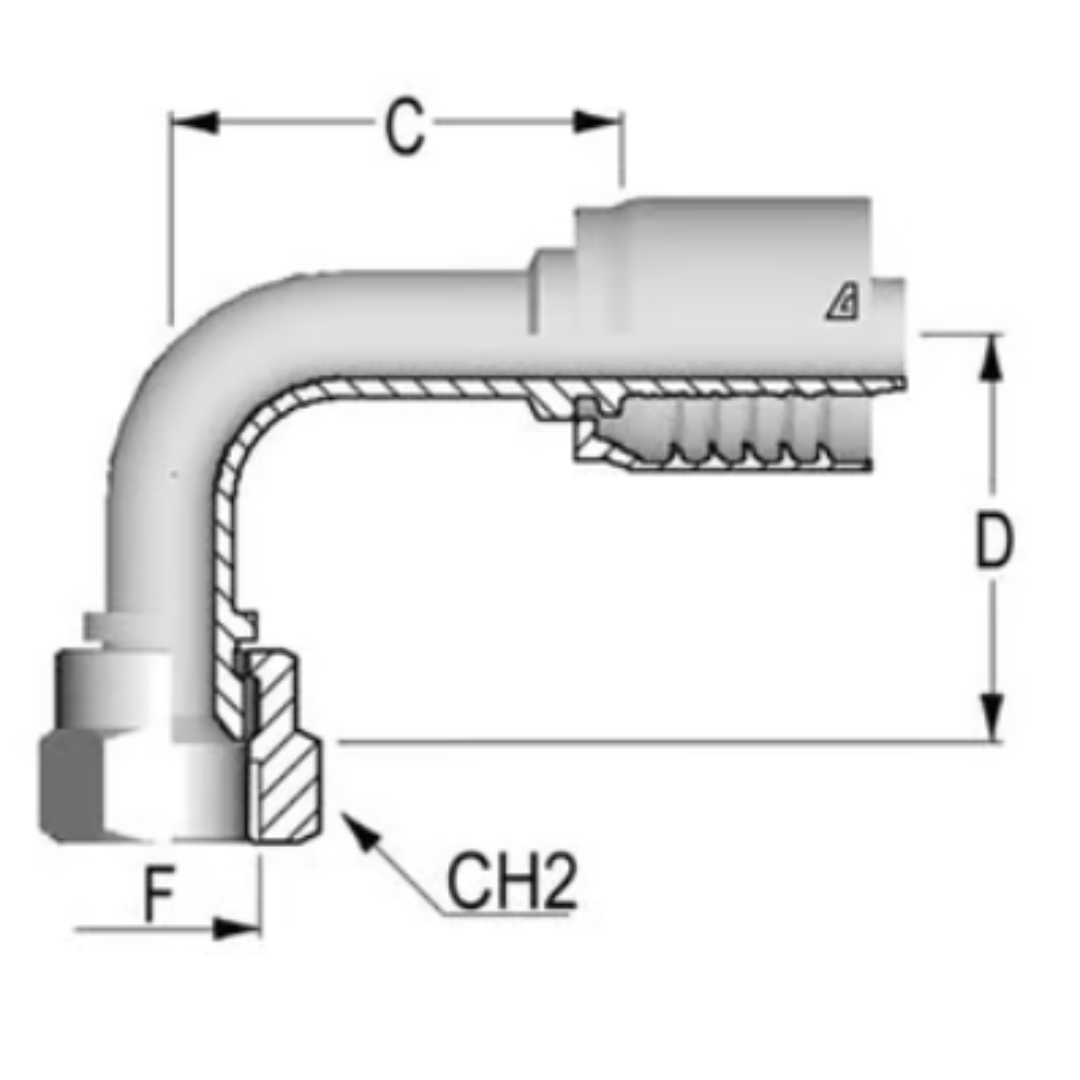

The Alfagomma One-Piece AlfaCrimp D-FJ9S Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° JIC (Joint Industrial Council) female swivel connection with a 37° seat and a short drop design. This fitting uses a non-skive crimp, meaning there’s no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing strength and resistance to high pressure. The 90° JIC female swivel connection ensures a reliable, durable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
