Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MOFS |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 3.07 |
| Width | 1 |
| Weight | 0.51 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1-14 (-10) |
| Side 2 Type | ORFS |
Description

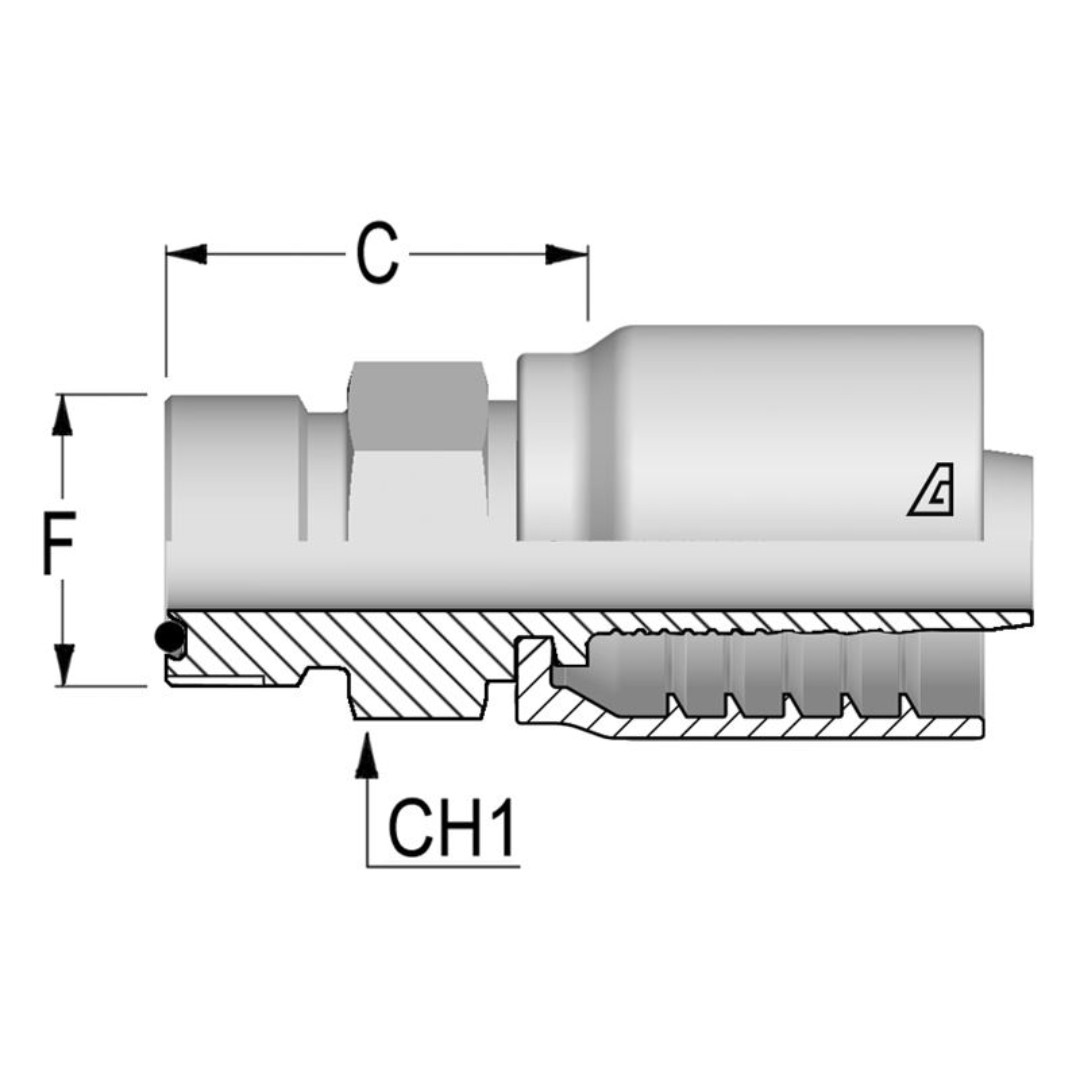

The Alfagomma One-Piece AlfaCrimp D-MOFS Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an ORFS (O-Ring Face Seal) male connection. This fitting uses a non-skive crimp design, meaning you don’t need to remove or prep any part of the hose before installation, which makes the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing increased strength and resistance to high-pressure environments. The ORFS male connection ensures a durable, reliable seal, making this fitting ideal for fluid power systems in high-pressure applications where a secure, long-lasting connection is essential.
