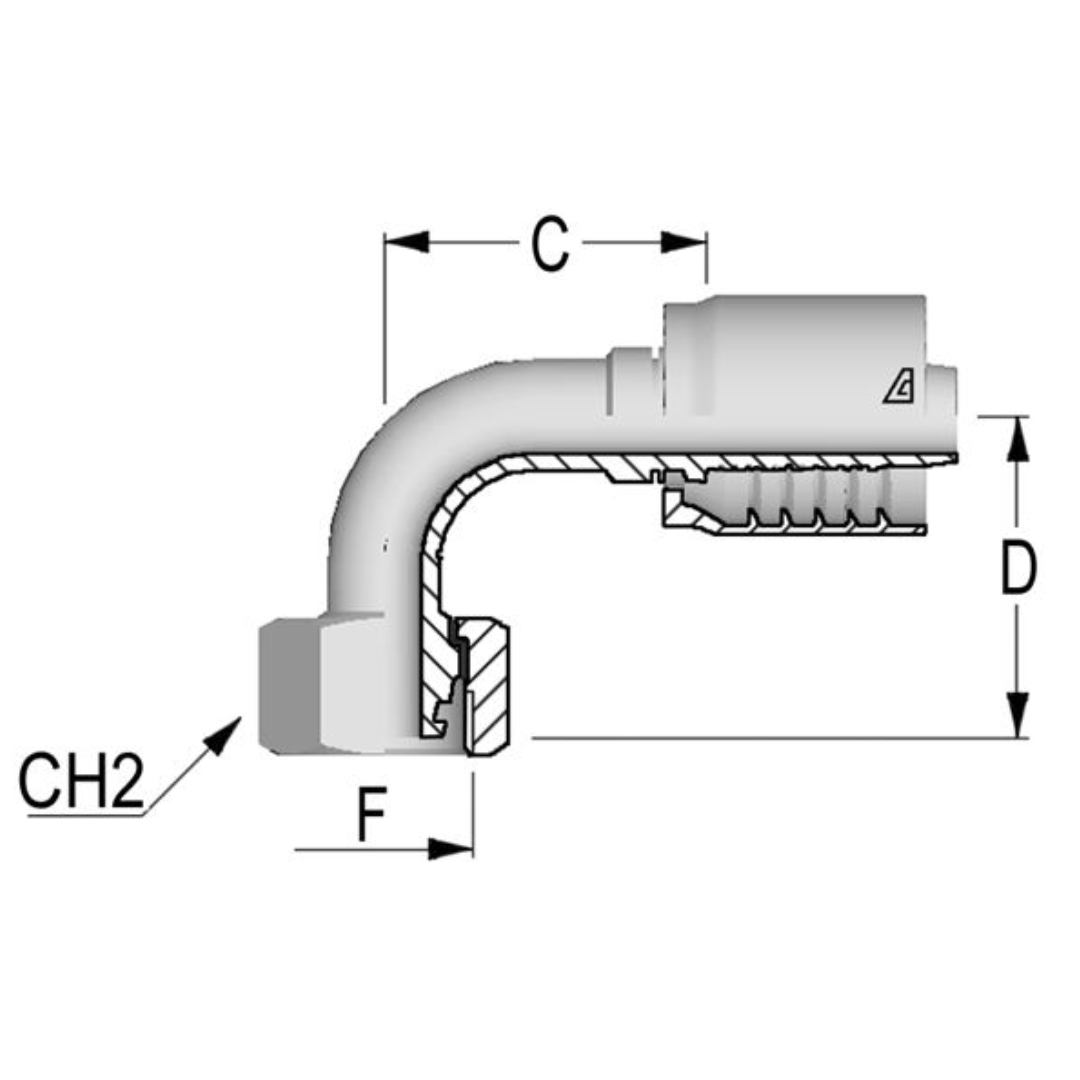

D-1026-FM9L : Alfagomma 90-Degree Steel Fitting, 5/8 (-10) Hose x M26x1.5 (-L18) Female Light Duty DIN Tube with O-Ring

The Alfagomma One-Piece AlfaCrimp D-FM9L Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° Metric O-Ring female swivel connection with a 24° seat, following the DIN 3865 Light standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which makes the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° Metric O-Ring female swivel connection with a 24° seat ensures a durable and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
