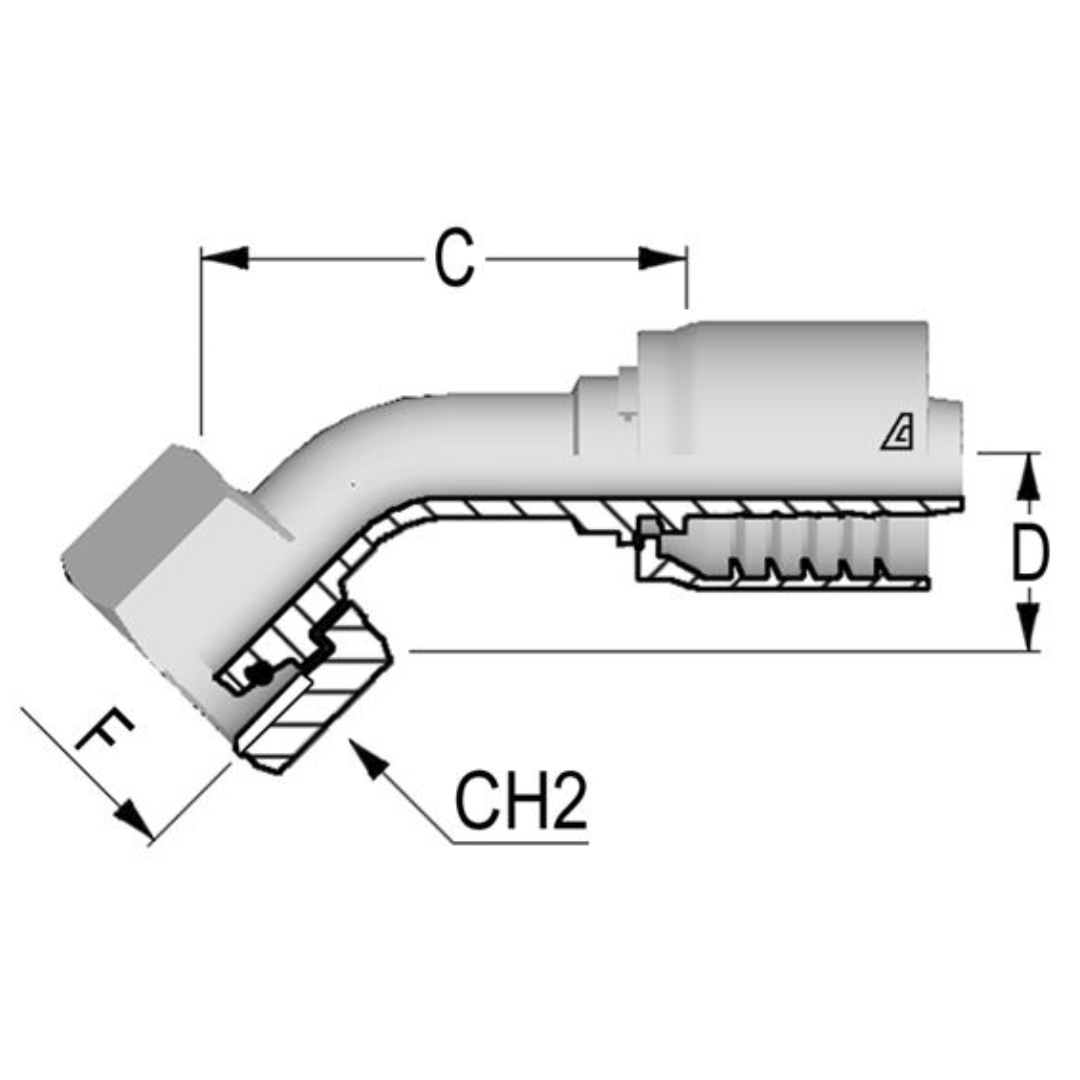

D-0824-FM4H : Alfagomma 45-Degree Steel Fitting, 1/2 (-08) Hose x M24x1.5 (-S16) Female Heavy Duty DIN Tube with O-Ring

The Alfagomma One-Piece AlfaCrimp D-FM4H Fitting is a 45-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 45° Metric O-Ring female swivel connection with a 24° seat, following the DIN 3865 Heavy standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering high strength and resistance to pressure. The Metric O-Ring female swivel 24° seat ensures a durable, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections in demanding environments.
