Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | '5000 |
| Fitting Style | Rigid |
| Series | D-C619 |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 4.46 |
| Width | 0.7 |
| Weight | 0.78 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | Code 61 |
Description

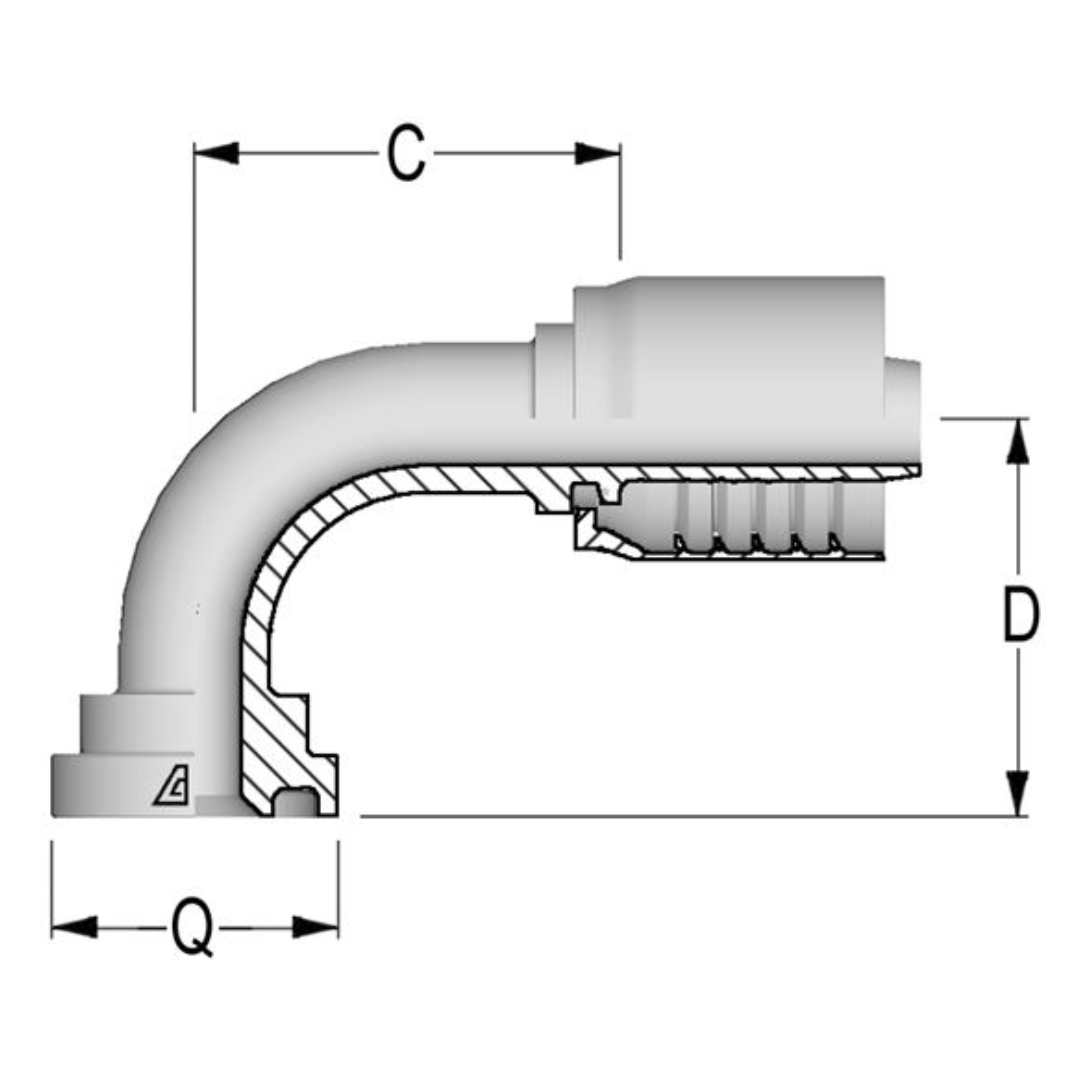

The Alfagomma One-Piece AlfaCrimp D-C619 Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° O-ring flange with a SAE J518 Code 61 flange. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° O-ring flange with SAE J518 Code 61 ensures a reliable, durable connection, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
