Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | D-FJ9L |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.6799999999999997 |
| Width | 0.7 |
| Weight | 0.46 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

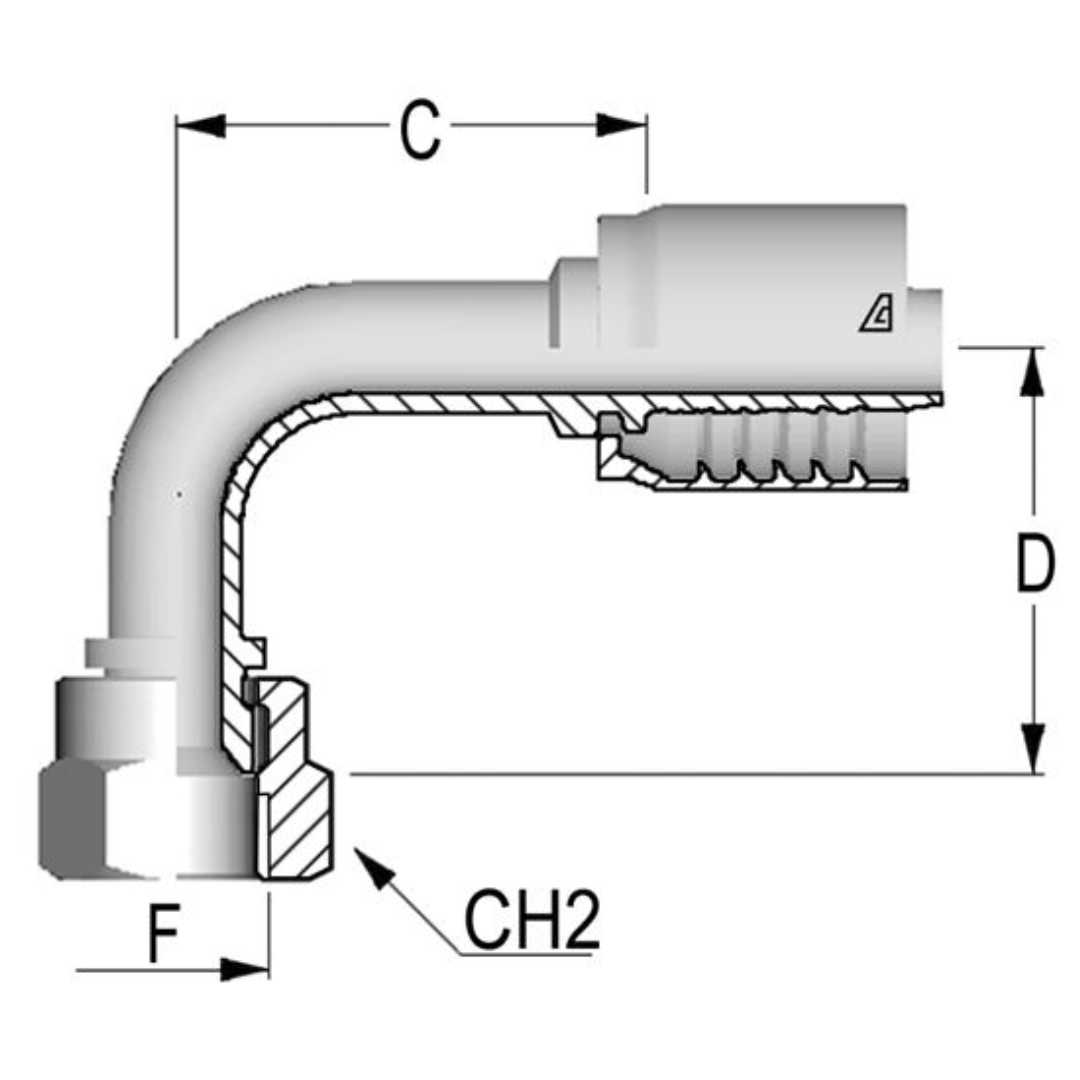

The Alfagomma One-Piece AlfaCrimp D-FJ9L Fitting is a 90-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 90° JIC (Joint Industrial Council) female swivel connection with a 37° seat and a long drop design. This fitting features a non-skive crimp, meaning there’s no need to remove or prep any part of the hose before installation, which simplifies the process. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° JIC female swivel connection with long drop ensures a reliable, durable seal, making this fitting ideal for high-pressure fluid power systems and industrial applications where a secure, long-lasting connection is needed.
