Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MMSH |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.69 |
| Width | 0.5 |
| Weight | 0.23 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M22x1.5 (-S14) |
| Side 2 Type | HEAVY DUTY DIN TUBE |
Description

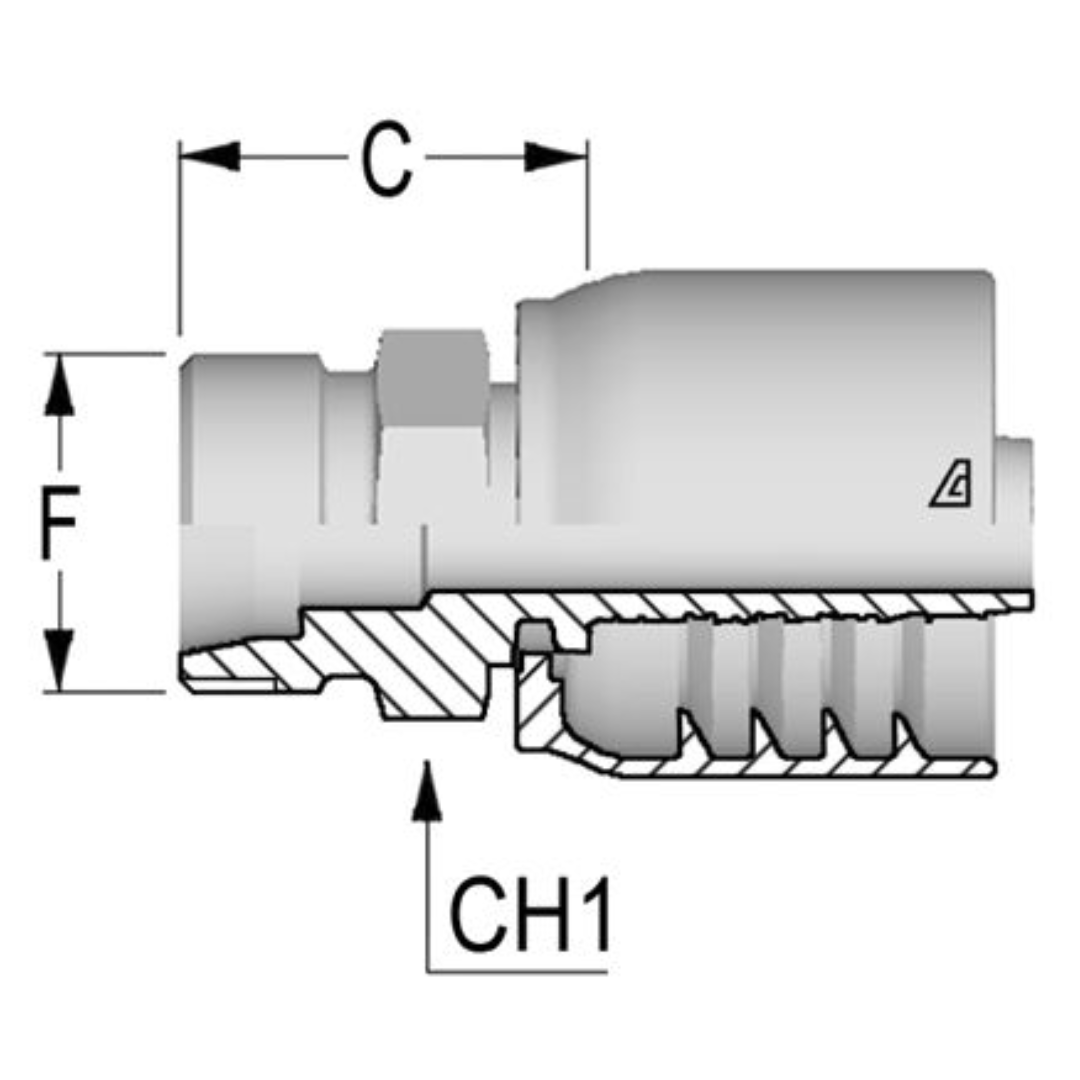

The Alfagomma One-Piece AlfaCrimp D-MMSH Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a Metric Male 24° seat, following the DIN 3861 Heavy standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing extra strength and resistance to high pressures. The Metric Male 24° seat ensures a durable, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
