Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | D-FMOL |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.4 |
| Width | 0.5 |
| Weight | 0.23 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M18x1.5 (-L12) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

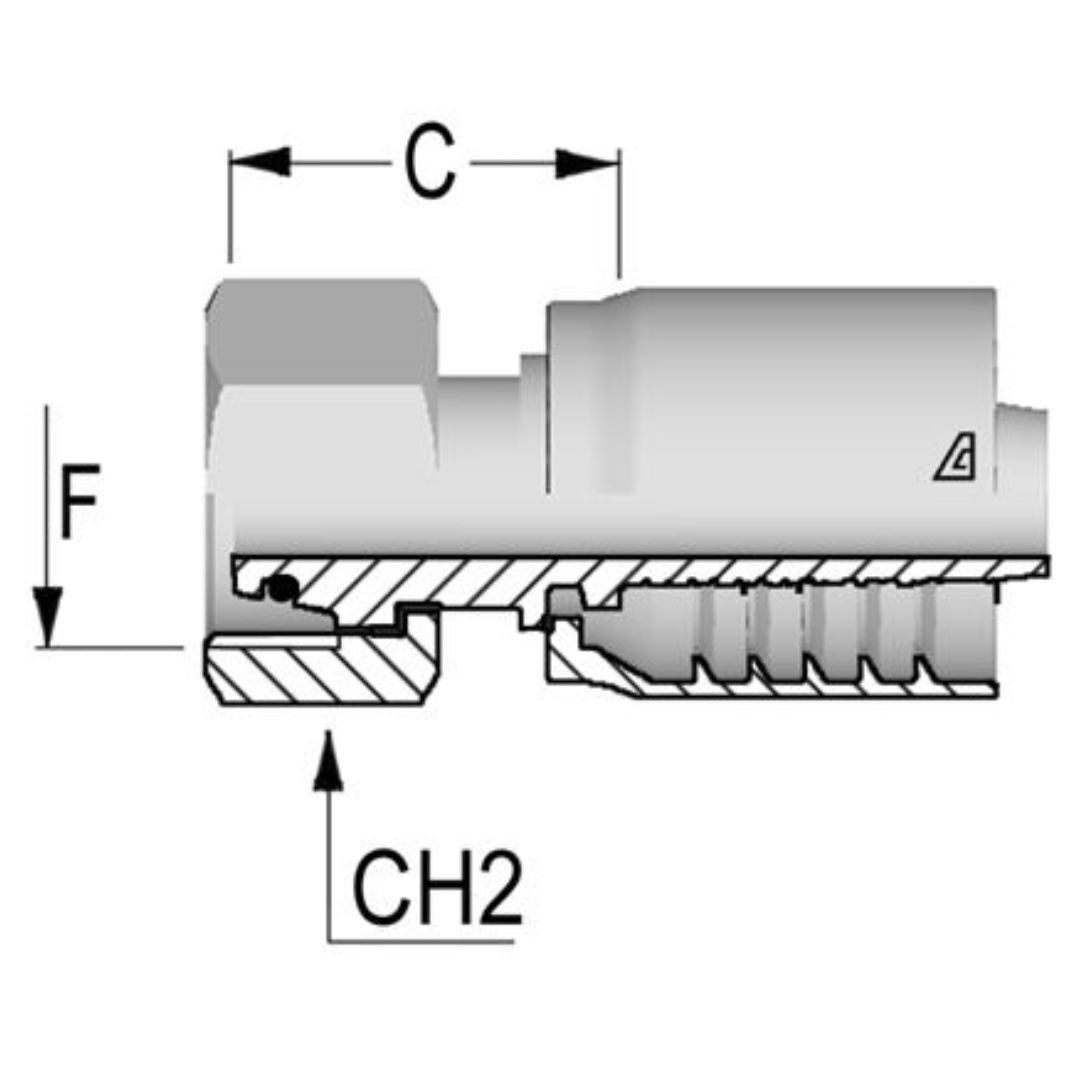

The Alfagomma One-Piece AlfaCrimp D-FMOL Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a Metric Swivel Female O-Ring connection with a 24° seat, following the DIN 3865 Light standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, which makes the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing high strength and resistance to pressure. The Metric Swivel Female O-Ring 24° seat ensures a durable, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications that require long-lasting, secure seals.
