Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MMSL |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.3 |
| Width | 0.5 |
| Weight | 0.18 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M16x1.5 (-L10) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

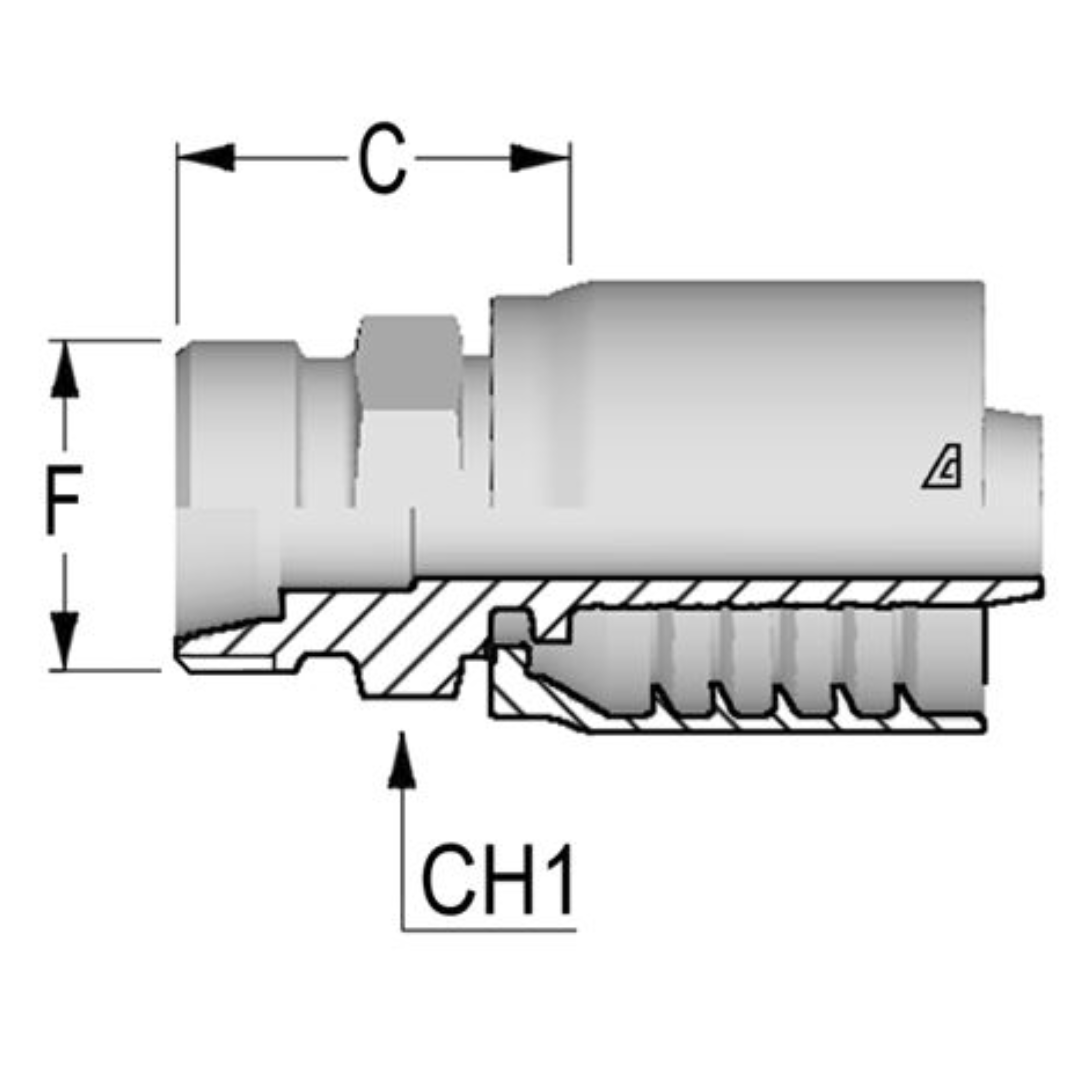

The Alfagomma One-Piece AlfaCrimp D-MMSL Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a Metric Male 24° seat, following the DIN 3853 Light standard. This fitting uses a non-skive crimp design, which means you don’t need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The Metric Male 24° seat ensures a reliable, durable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
