Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-FOFS |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 3.48 |
| Width | 0.5 |
| Weight | 0.32 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 13/16-16 (-08) |
| Side 2 Type | ORFS |
Description

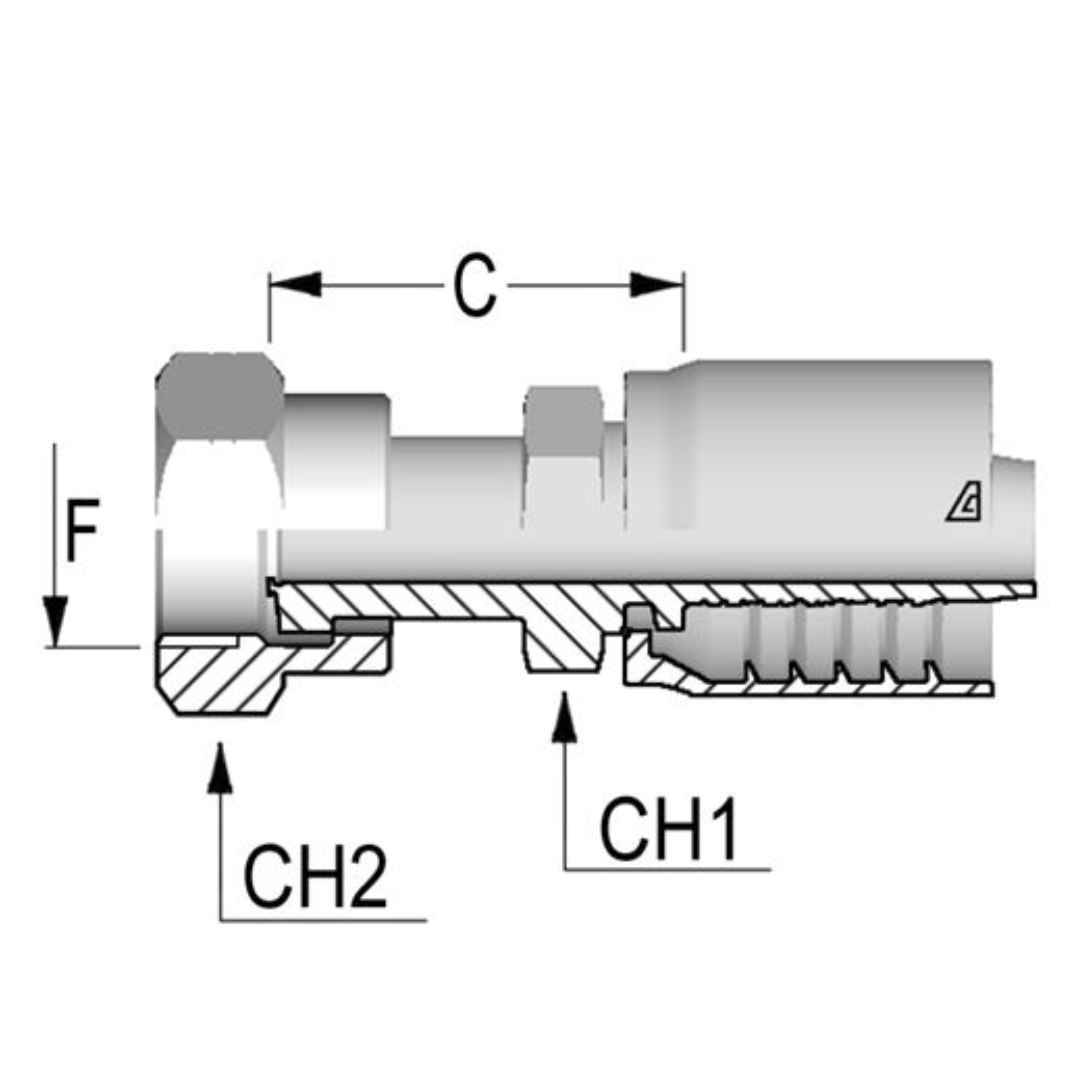

The Alfagomma One-Piece AlfaCrimp D-FOFS Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to an ORFS (O-Ring Face Seal) female connection. This fitting uses a non-skive crimp design, meaning you don’t need to remove or prep any part of the hose before installation, which simplifies and speeds up the process. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing extra strength and resistance to high pressures. The ORFS female connection creates a durable, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require strong, long-lasting connections.
