Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | D-FO45 |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 5.04 |
| Width | 0.5 |
| Weight | 0.3 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 13/16-16 (-08) |
| Side 2 Type | ORFS |
Description

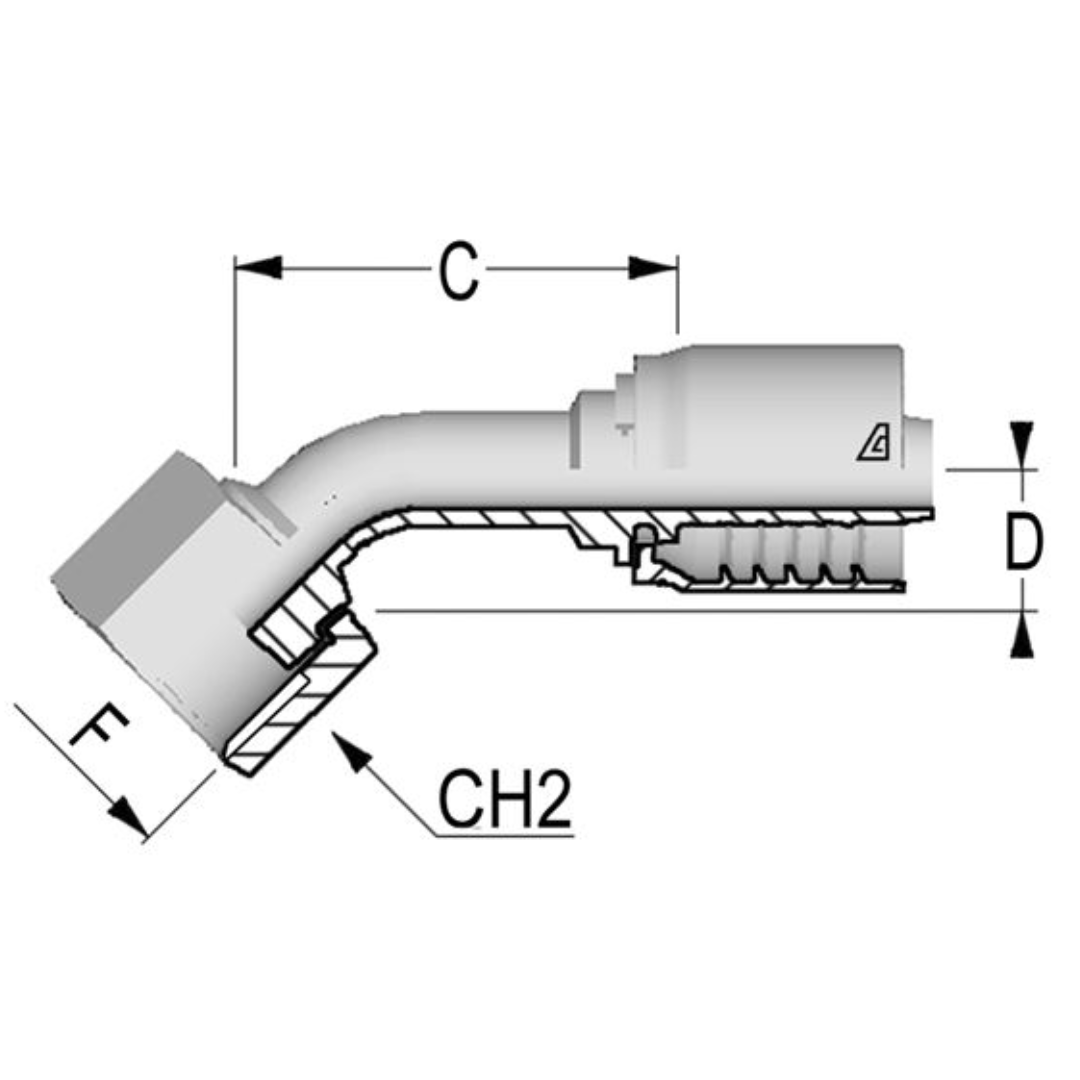

The Alfagomma One-Piece AlfaCrimp D-FO45 Fitting is a 45-degree, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a 45° ORFS (O-Ring Face Seal) female connection. This fitting uses a non-skive crimp design, meaning you don’t need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a tight, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, which provide enhanced strength and resistance to high-pressure conditions. The 45° ORFS female connection ensures a reliable, durable seal, making this fitting ideal for high-pressure fluid systems that require secure, long-lasting connections.
