Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | D-MORB |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.3 |
| Width | 0.5 |
| Weight | 0.19 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
Description

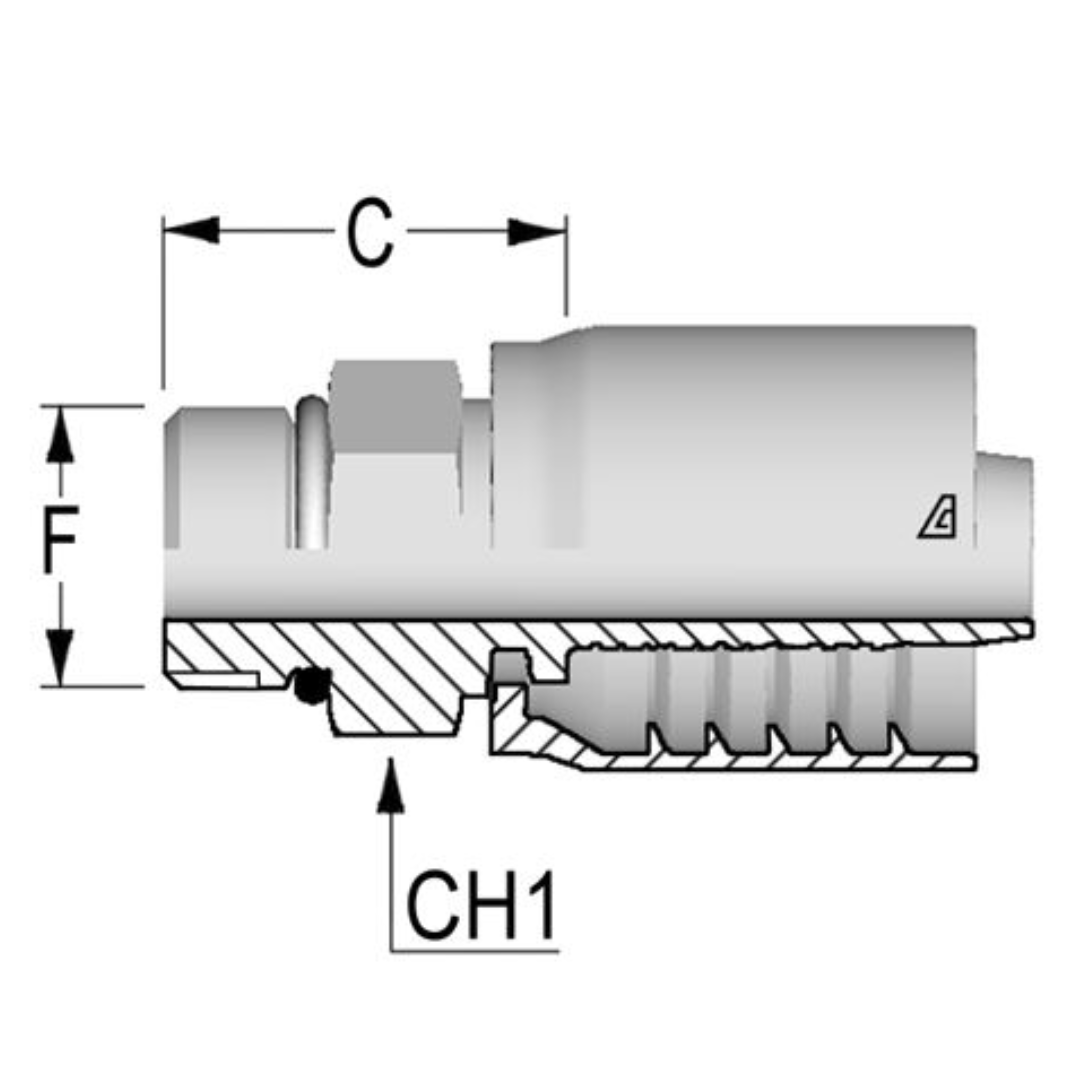

The Alfagomma One-Piece AlfaCrimp D-MORB Fitting is a straight, carbon steel fitting designed to connect wire-braided hoses and 4-wire spiral hoses to a SAE (Society of Automotive Engineers) male O-ring boss connection. This fitting uses a non-skive crimp design, which means there’s no need to remove or prep any part of the hose before installation, making it quicker and easier to use. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. This fitting is suitable for hoses with an inside diameter (ID) greater than 1" and for specific Alfabiotech 3000 and 4000 hoses, making it ideal for high-pressure fluid power systems where a durable, reliable connection is essential.
