CRP-18A-20-N-L : Hawe Hydraulik Relief Valve, Pilot-Operated, Balanced Piston, 2 Ports, T-18A Cavity, 200GPM, 58-800psi (400psi Standard), Hex Socket Screw (similar to RPKC-LNN)
CRP-18A-20-N-L : Hawe Hydraulik Relief Valve, Pilot-Operated, Balanced Piston, 2 Ports, T-18A Cavity, 200GPM, 58-800psi (400psi Standard), Hex Socket Screw (similar to RPKC-LNN)
Roll over image to zoom in Click on image to zoom
CRP-18A-20-N-L : Hawe Hydraulik Relief Valve, Pilot-Operated, Balanced Piston, 2 Ports, T-18A Cavity, 200GPM, 58-800psi (400psi Standard), Hex Socket Screw (similar to RPKC-LNN)CRP-18A-20-N-L : Hawe Hydraulik Relief Valve, Pilot-Operated, Balanced Piston, 2 Ports, T-18A Cavity, 200GPM, 58-800psi (400psi Standard), Hex Socket Screw (similar to RPKC-LNN)

CRP-18A-20-N-L : Hawe Hydraulik Relief Valve, Pilot-Operated, Balanced Piston, 2 Ports, T-18A Cavity, 200GPM, 58-800psi (400psi Standard), Hex Socket Screw (similar to RPKC-LNN)

Save $227.79
Hawe HydraulikSKU: 5003 7277-00
4-6 Weeks
Price:
$282.79 $510.58

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Huntersville, North Carolina
Material Carbon Steel
Valve Type Relief
Adjustment Type Leakproof hex. socket screw
Type Cartridge
Pressure Rating 5075
Inlet Flow Rate 200
Pressure Range 58-800psi (400psi Standard)
Series CRP-18A
Cartridge Cavity T-18A
Country of Manufacture China
Height 1.625
Length 4.35
Width 1.625
Weight 2.07

Description

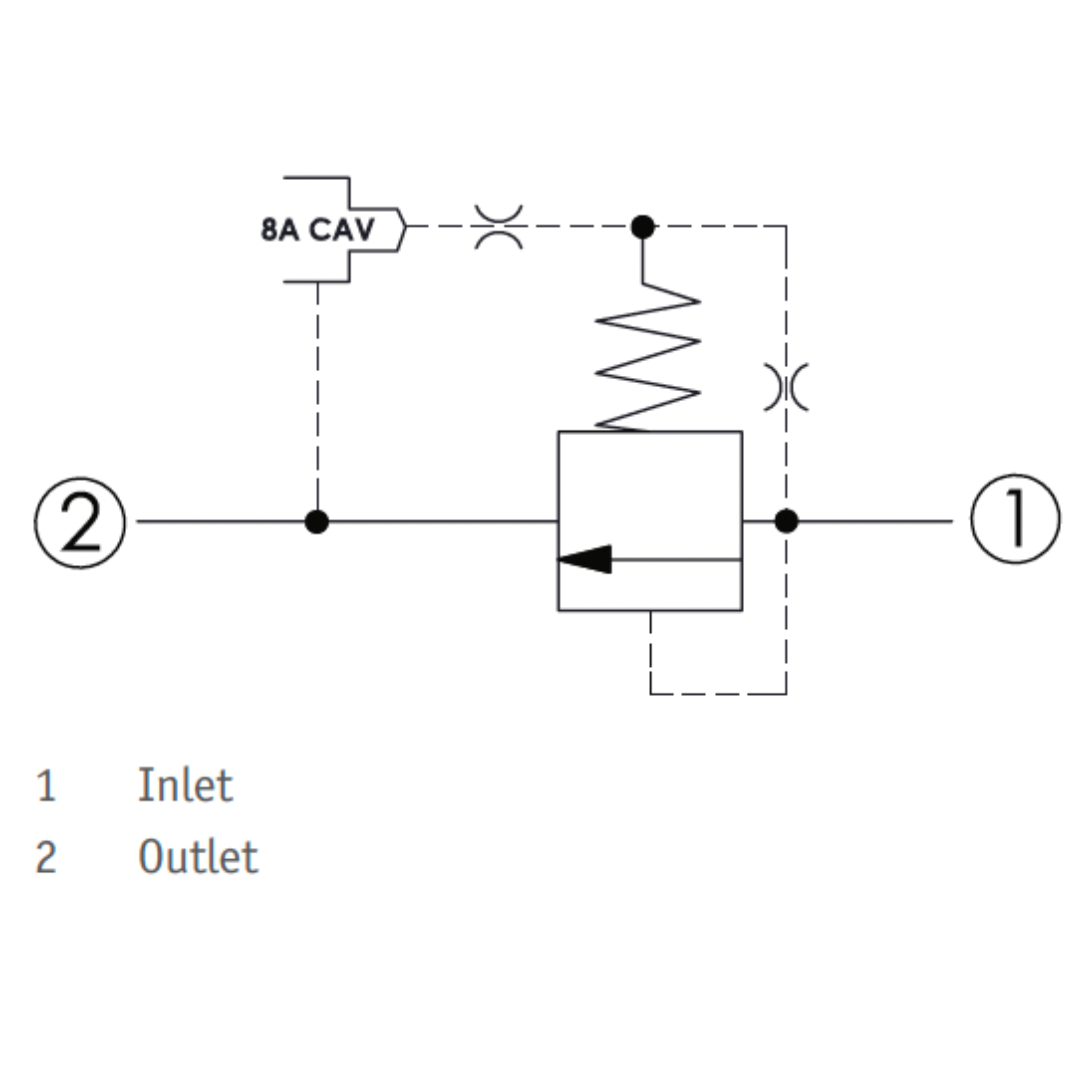

The HAWE CRP-18A Relief Valve is a pilot-operated, balanced piston hydraulic cartridge relief valve engineered for ultra high-flow hydraulic systems requiring stable, reliable, and efficient pressure control under extreme operating conditions. Designed for heavy-duty mobile and industrial fluid power applications, the CRP-18A series provides dependable overpressure protection while helping reduce pressure instability and improve hydraulic system performance in large-capacity circuits. Featuring a balanced piston relief main stage with an integral 8A control cavity, the CRP-18A valve delivers operating pressures up to 350 bar (5,076 psi) and exceptionally high flow capacities up to 760 L/min, making it ideal for large hydraulic power units, mining equipment, marine hydraulics, steel processing systems, industrial presses, heavy mobile machinery, and demanding cross-port relief applications.

The robust T-18A cavity design allows flexible integration into hydraulic manifolds and custom fluid power systems requiring pilot-operated relief performance with stable pressure characteristics and high flow handling capability. The HAWE CRP-18A series is available with multiple cavity and spring configurations for varying minimum control pressure requirements and is designed to accept maximum pressure at port 2 for cross-port relief applications.

Warning: Improper valve selection, pressure adjustment, installation, or hydraulic system integration may result in uncontrolled pressure conditions, hydraulic system failure, equipment damage, serious injury, or death. When used in cross-port relief circuits, spool leakage should be considered during system design. Always verify system compatibility, follow manufacturer installation torque specifications, ensure proper pilot and pressure settings, and adhere to all hydraulic safety procedures before operation.
