Product Details
| Data Sheet | |
|---|---|
| Usually Ships Within | 4-6 Weeks |
| Factory Location | Huntersville, North Carolina |
| Material | Carbon Steel |
| Valve Type | Relief |
| Adjustment Type | Leakproof hex. socket screw |
| Type | Cartridge |
| Pressure Rating | 5075 |
| Inlet Flow Rate | 100 |
| Pressure Range | 50-200psi (100psi Standard) |
| Series | CRD-16A |
| Cartridge Cavity | T-16A |
| Country of Manufacture | China |
| Height | 1.25 |
| Length | 5.68 |
| Width | 1.25 |
| Weight | 1.5 |
Description

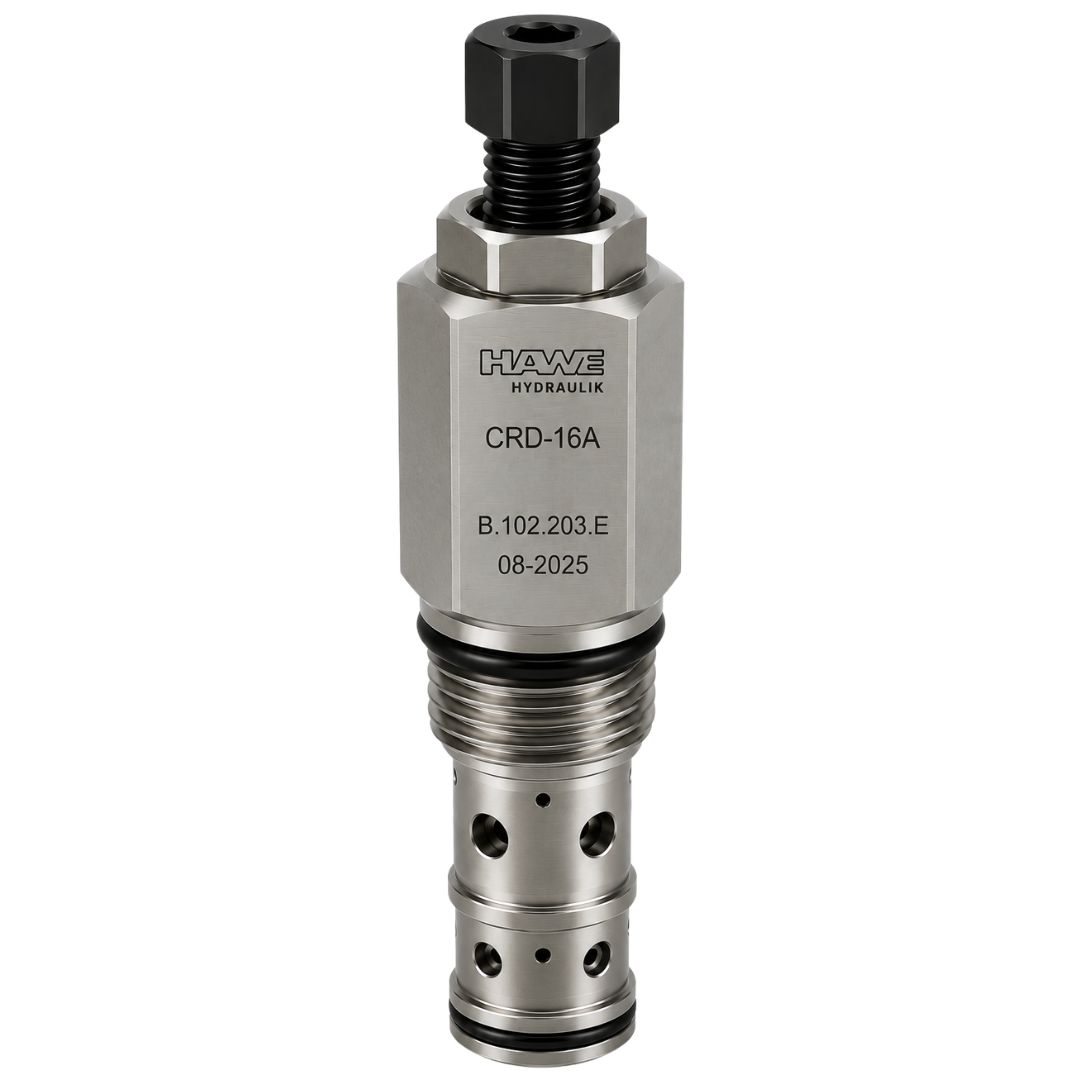

The HAWE CRD-16A Relief Valve is a high-flow, direct-acting poppet-style hydraulic cartridge relief valve engineered to provide reliable overpressure protection and stable pressure control in demanding hydraulic systems. Designed for heavy-duty mobile and industrial fluid power applications, the CRD-16A series helps protect pumps, cylinders, motors, hoses, and hydraulic circuits from damaging pressure spikes while maintaining smooth and dependable system performance.
Featuring a T-16A cavity design, operating pressures up to 350 bar (5,076 psi), and exceptionally high flow capacities up to 380 L/min, these hydraulic relief valves are ideal for large hydraulic power units, industrial machinery, mobile equipment, and cross-port relief circuits requiring durable, high-capacity pressure limiting. The HAWE CRD-16A series is available in multiple pressure adjustment ranges from 3.5 bar up to 420 bar, with optional leakproof adjustment screws, stainless steel external components, and lockable handknob configurations for secure pressure tuning and flexible system integration. Designed with fast typical response times, low leakage performance, and dirt-tolerant operation, the CRD-16A valve series provides dependable hydraulic circuit protection in harsh operating environments.
Warning: Improper valve selection, pressure adjustment, installation, or hydraulic system integration may result in uncontrolled pressure conditions, equipment damage, hydraulic failure, serious injury, or death. Always verify system compatibility, follow manufacturer installation torque specifications, ensure proper pressure settings for the intended application, and adhere to all hydraulic safety procedures before operation.
