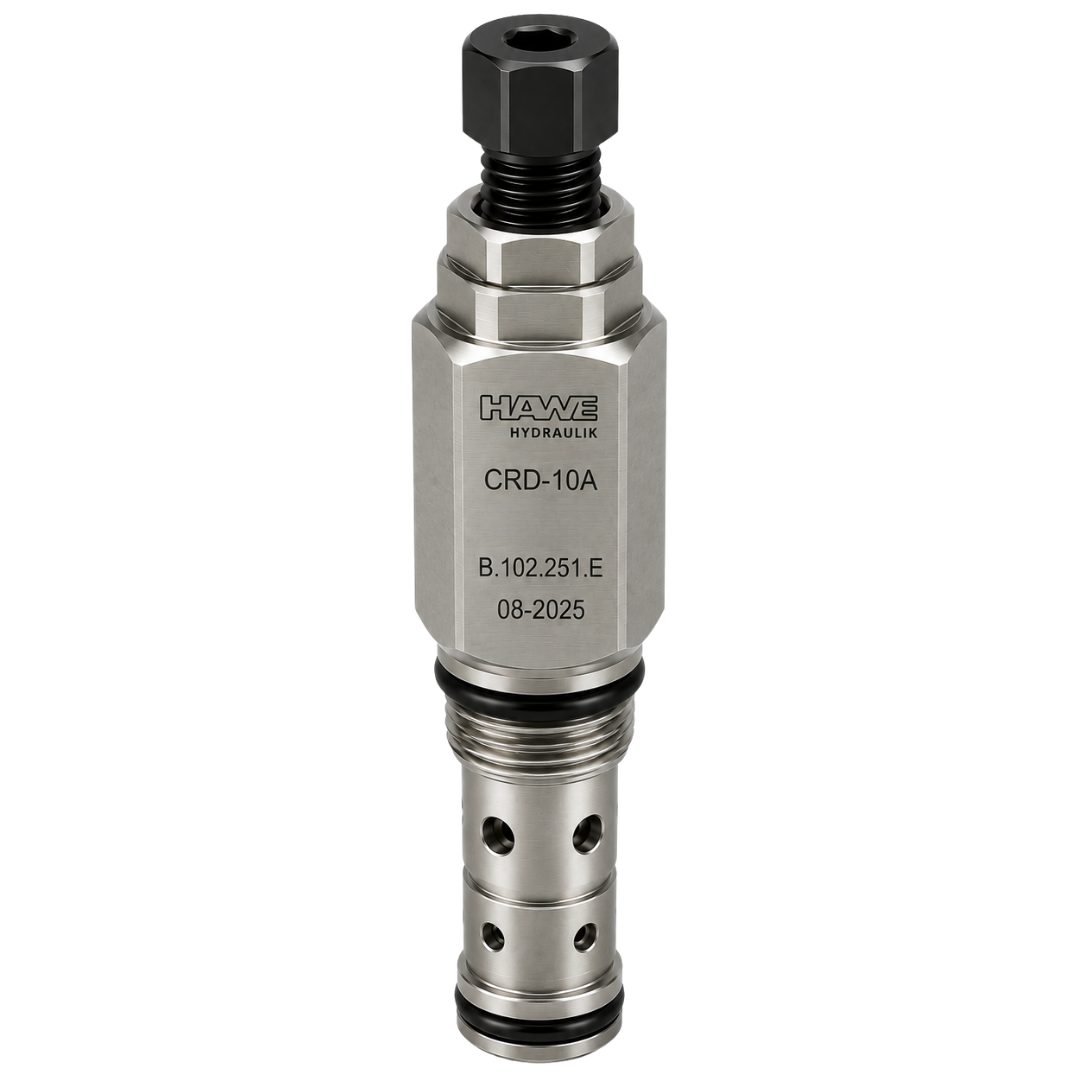

CRD-10A-21-A-K : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Pilot Stage, 2 Ports, T-10A Cavity, 0.26GPM, 25-3045psi (1015psi Standard), Handknob with Lock (similar to RBAC-KAN)
CRD-10A-21-A-K : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Pilot Stage, 2 Ports, T-10A Cavity, 0.26GPM, 25-3045psi (1015psi Standard), Handknob with Lock (similar to RBAC-KAN)
Roll over image to zoom in Click on image to zoom
CRD-10A-21-A-K : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Pilot Stage, 2 Ports, T-10A Cavity, 0.26GPM, 25-3045psi (1015psi Standard), Handknob with Lock (similar to RBAC-KAN)CRD-10A-21-A-K : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Pilot Stage, 2 Ports, T-10A Cavity, 0.26GPM, 25-3045psi (1015psi Standard), Handknob with Lock (similar to RBAC-KAN)

CRD-10A-21-A-K : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Pilot Stage, 2 Ports, T-10A Cavity, 0.26GPM, 25-3045psi (1015psi Standard), Handknob with Lock (similar to RBAC-KAN)

Save $44.02
Hawe HydraulikSKU: 5003 7053-00
4-6 Weeks
Price:
$54.64 $98.66

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Huntersville, North Carolina
Material Carbon Steel
Valve Type Relief
Adjustment Type Handknob with Lock Knob
Type Cartridge
Pressure Rating 5075
Inlet Flow Rate 0.26
Pressure Range 25-3045psi (1015psi Standard)
Series CRD-10A
Cartridge Cavity T-10A
Country of Manufacture China
Height 0.875
Length 3.57
Width 0.875
Weight 0.33

Description

The HAWE CRD-10A Relief Valve is a compact, direct-acting hydraulic relief valve pilot stage engineered to deliver precise and dependable pressure control in high-performance hydraulic systems. Designed for mobile and industrial fluid power applications, the CRD-10A series provides reliable overpressure protection and stable pilot-stage operation for hydraulic pumps, manifolds, directional valves, and pressure control circuits.

Featuring a T-10A cavity design, operating pressures up to 350 bar (5,076 psi), and a fast typical response time of approximately 2 ms, these hydraulic cartridge relief valves are ideal for applications requiring accurate pressure regulation, low leakage, and consistent performance in demanding operating environments. The HAWE CRD-10A series is available in multiple pressure adjustment ranges from 1.7 bar up to 420 bar, with several adjustment and tamper-resistant configurations including leakproof adjustment screws, stainless steel external components, lockable handknobs, and panel mount options for flexible integration into hydraulic systems. Designed with dirt-tolerant operation and low leakage characteristics, the CRD-10A valve series helps improve system reliability and hydraulic circuit protection in industrial, mobile, and custom manifold applications.

Warning: Improper valve selection, pressure adjustment, installation, or hydraulic system integration may result in equipment damage, hydraulic failure, uncontrolled pressure conditions, serious injury, or death. Always verify compatibility with the intended application, follow manufacturer installation torque specifications, ensure proper pressure settings, and adhere to all hydraulic safety procedures before operation.
