Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | West Union, South Carolina |
| Material | Stainless Steel |
| Gauge Face Size | 2.5" |
| Gauge Pressure Range | 0-300psi |
| Gauge Style Selection | Panel Flange |
| Gauge Connection | 1/4" NPT |
| Country of Manufacture | China |
| Height | 3.42 inches |
| Length | 2.25 inches |
| Width | 3.42 inches |
Description

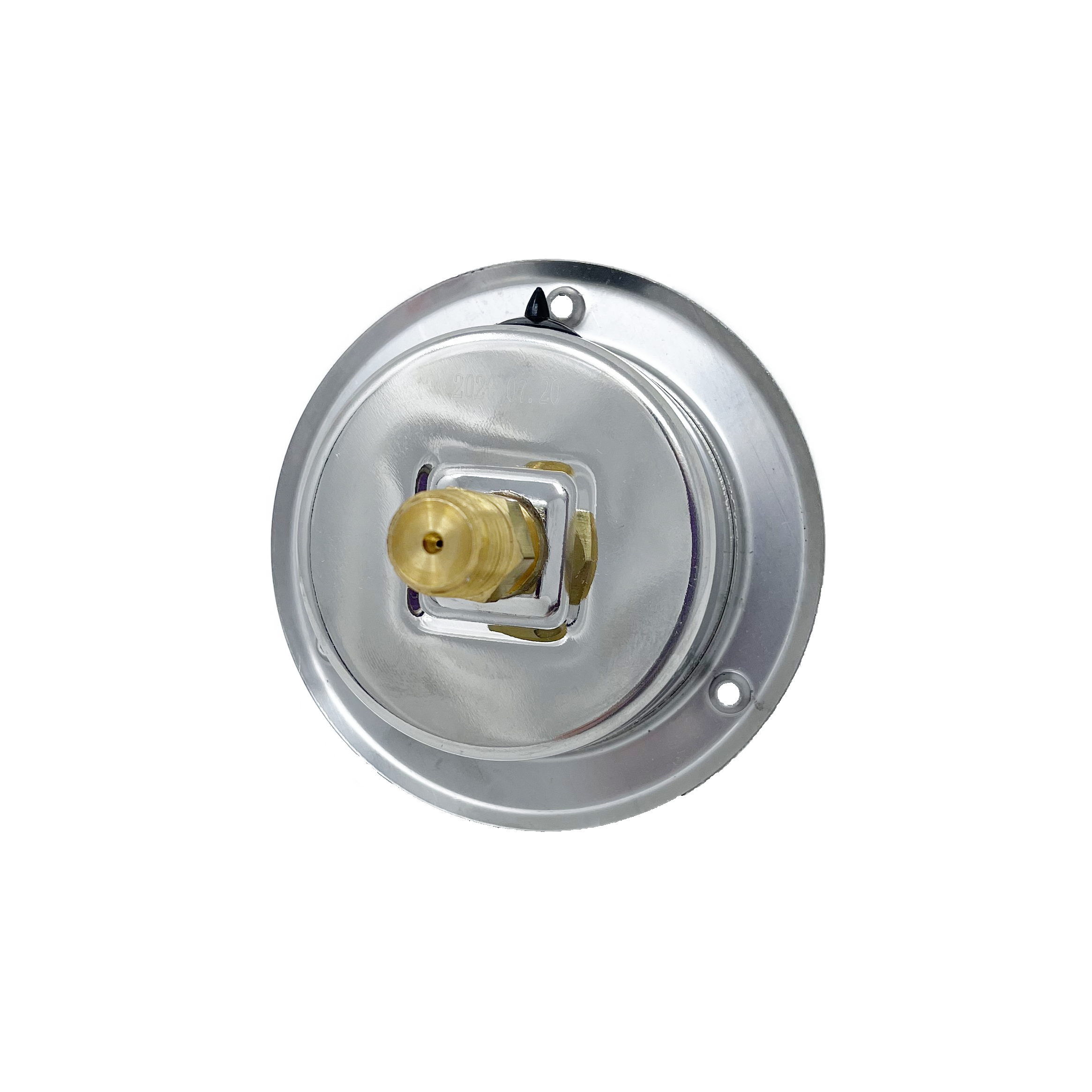

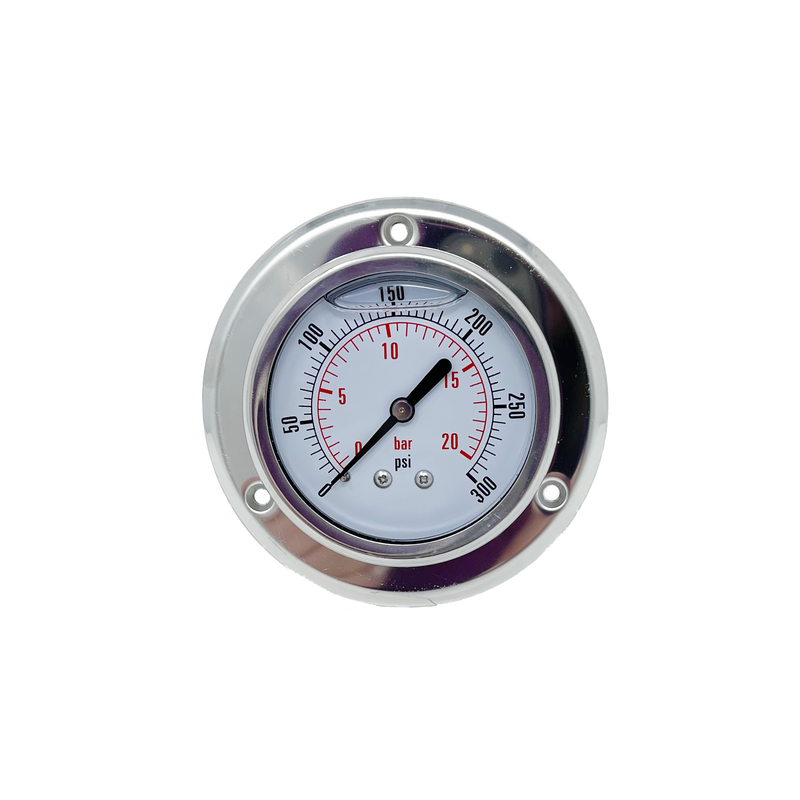

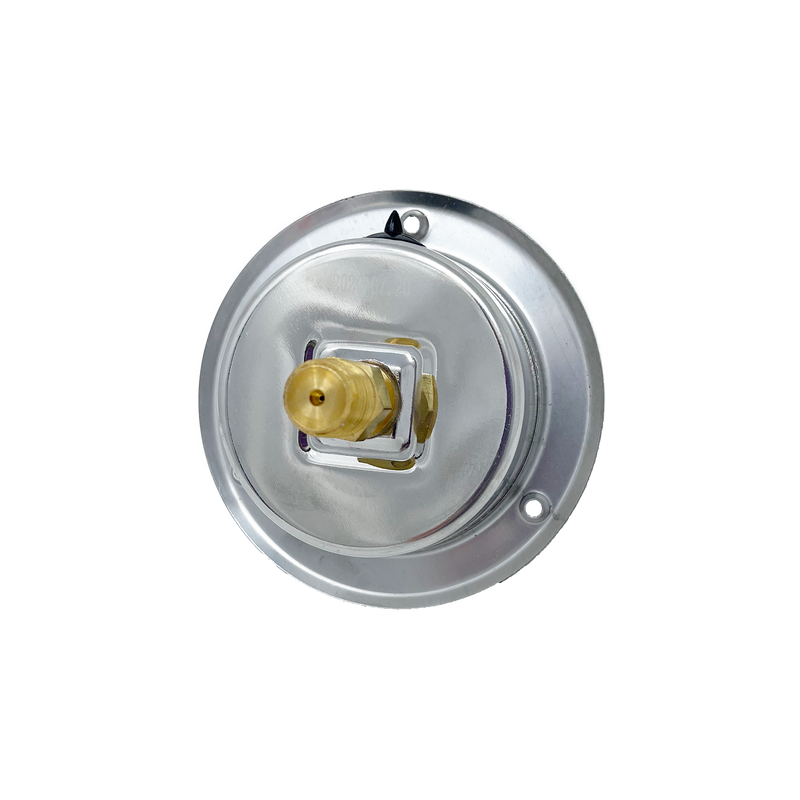

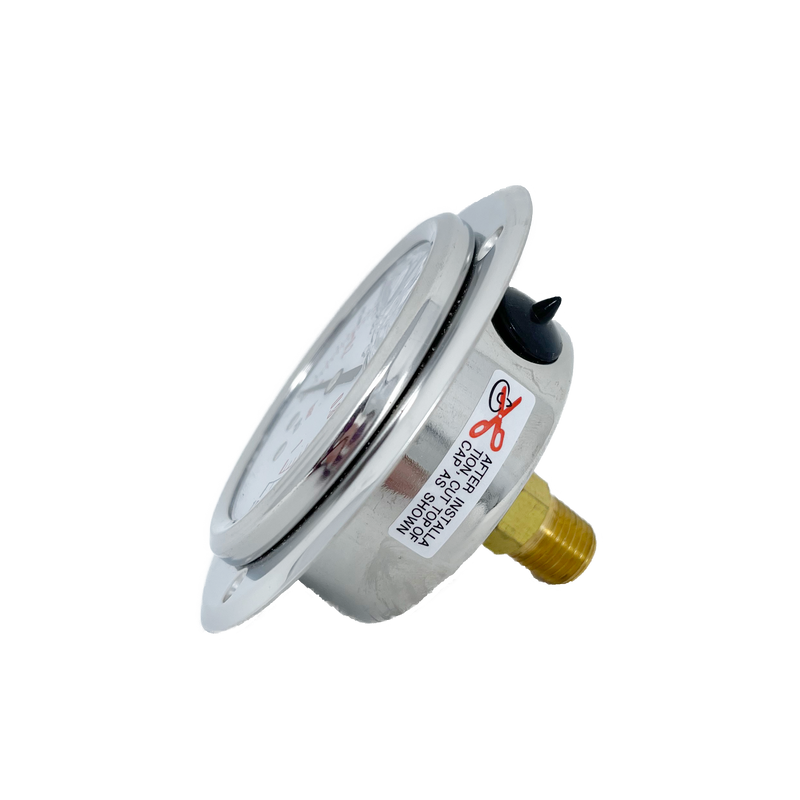

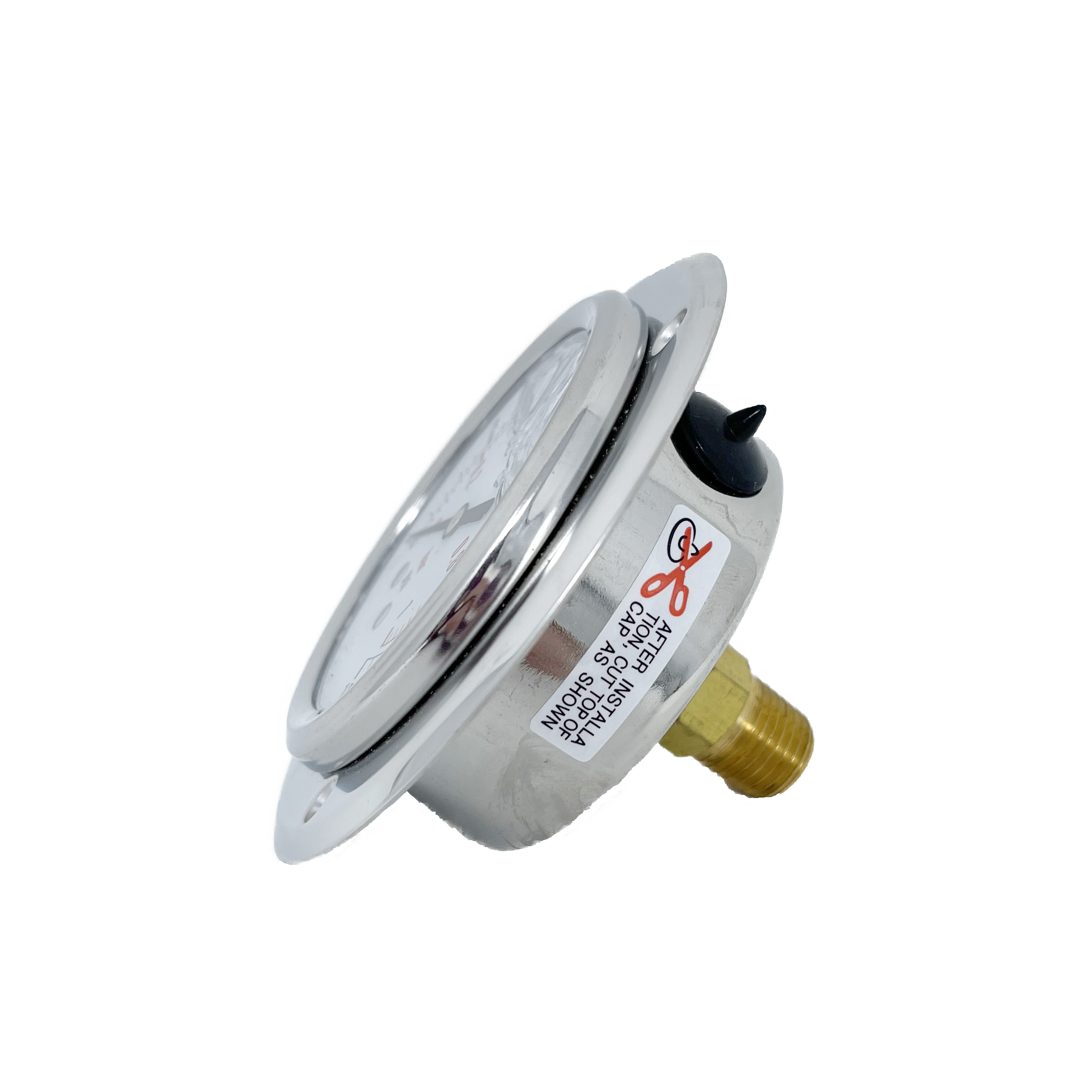

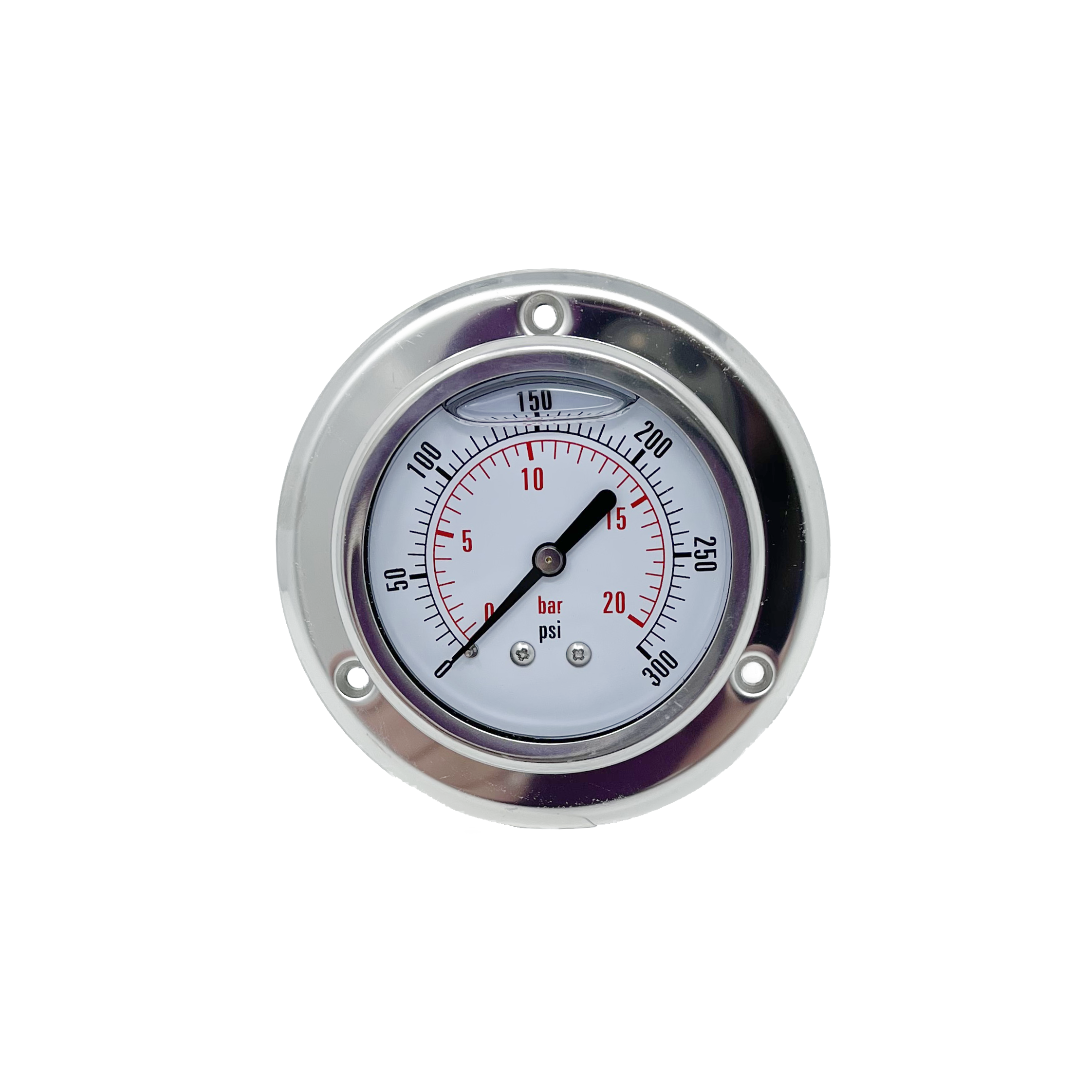

The Dynamic CF Series of Glycerine-Filled gauges offer an accurate, inexpensive option for your pressure gauge needs. CF gauges are constructed with a stainless steel case, bronze bourdon tube and connection, and a polycarbonate lens. All Dynamic gauges come with a built-in snubber. Standard gauge faces are designed with both psi and bar dual scales in a variety of pressure ranges up to 10,000psi. Certificates of Accuracy are available for an additional cost.
