Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | Same Day |
Factory Location | West Union, South Carolina |
Material | Stainless Steel |
Gauge Face Size | 2.5" |
Gauge Pressure Range | 0-300psi |
Gauge Style Selection | Stem Mounted |
Gauge Connection | 1/4" NPT |
Country of Manufacture | China |
Height | 3.45 inches |
Length | 1.18 inches |
Width | 3.45 inches |
Description

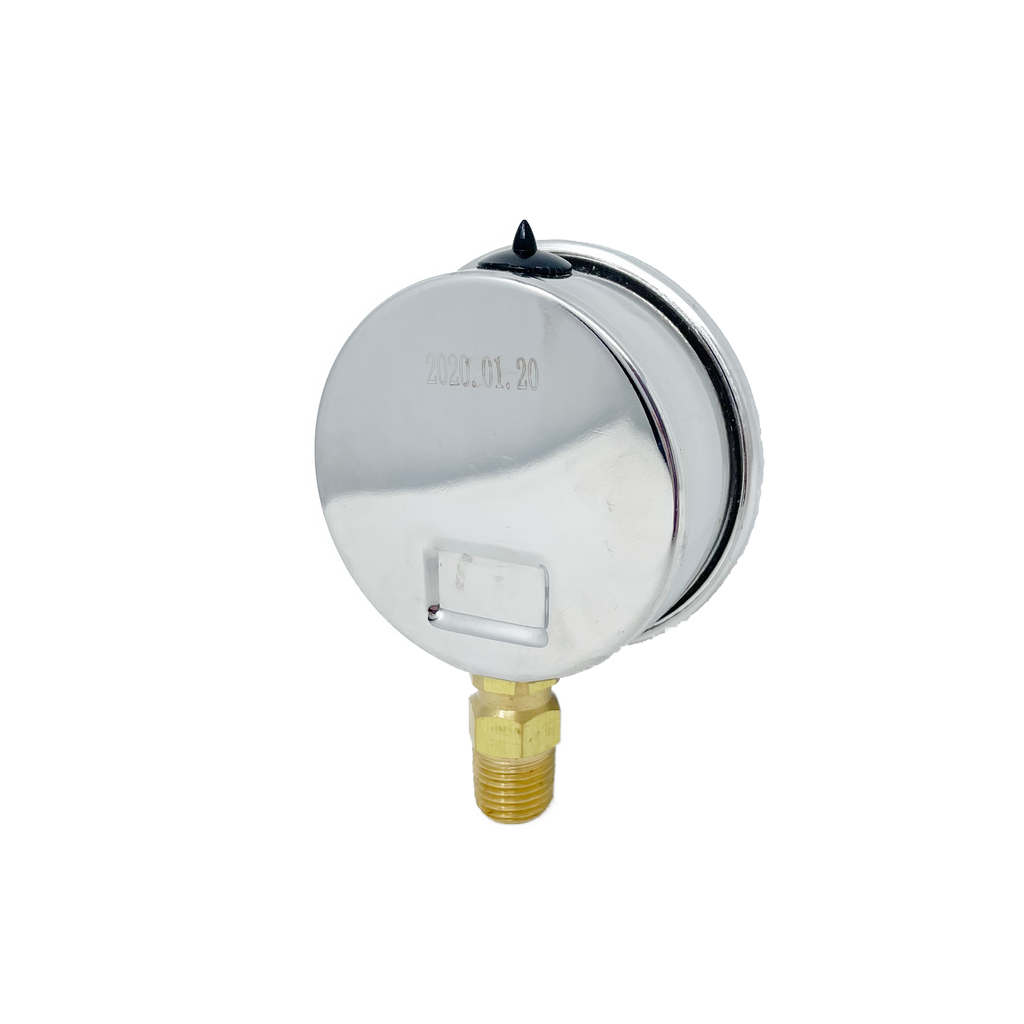

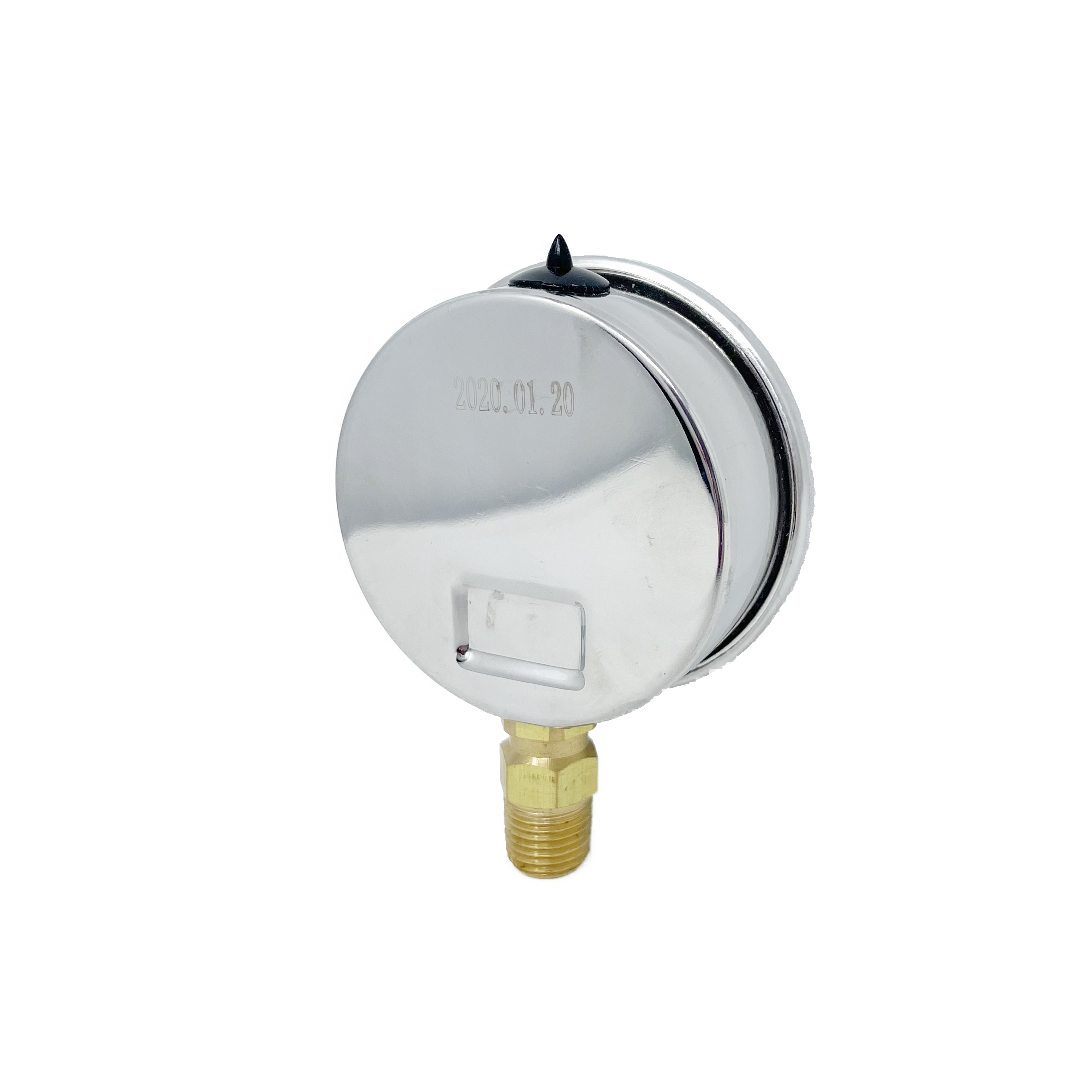

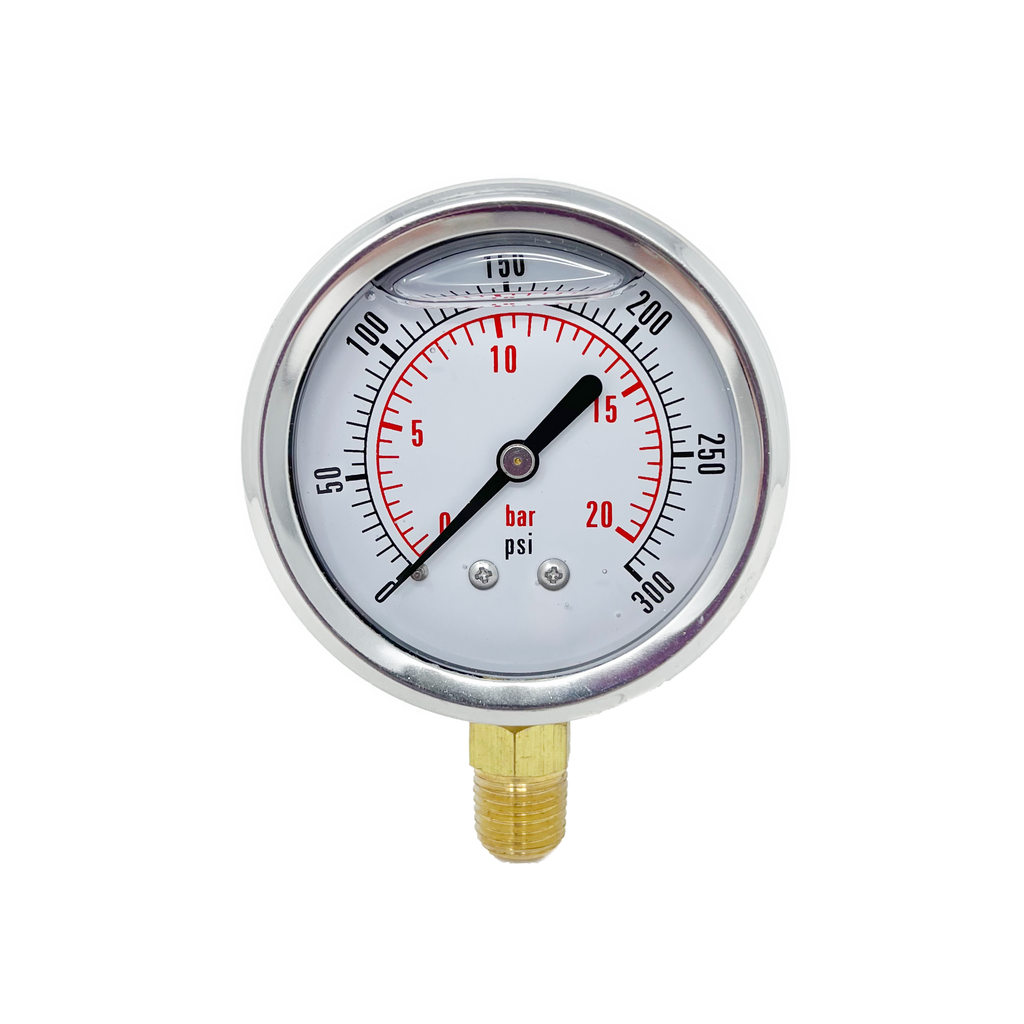

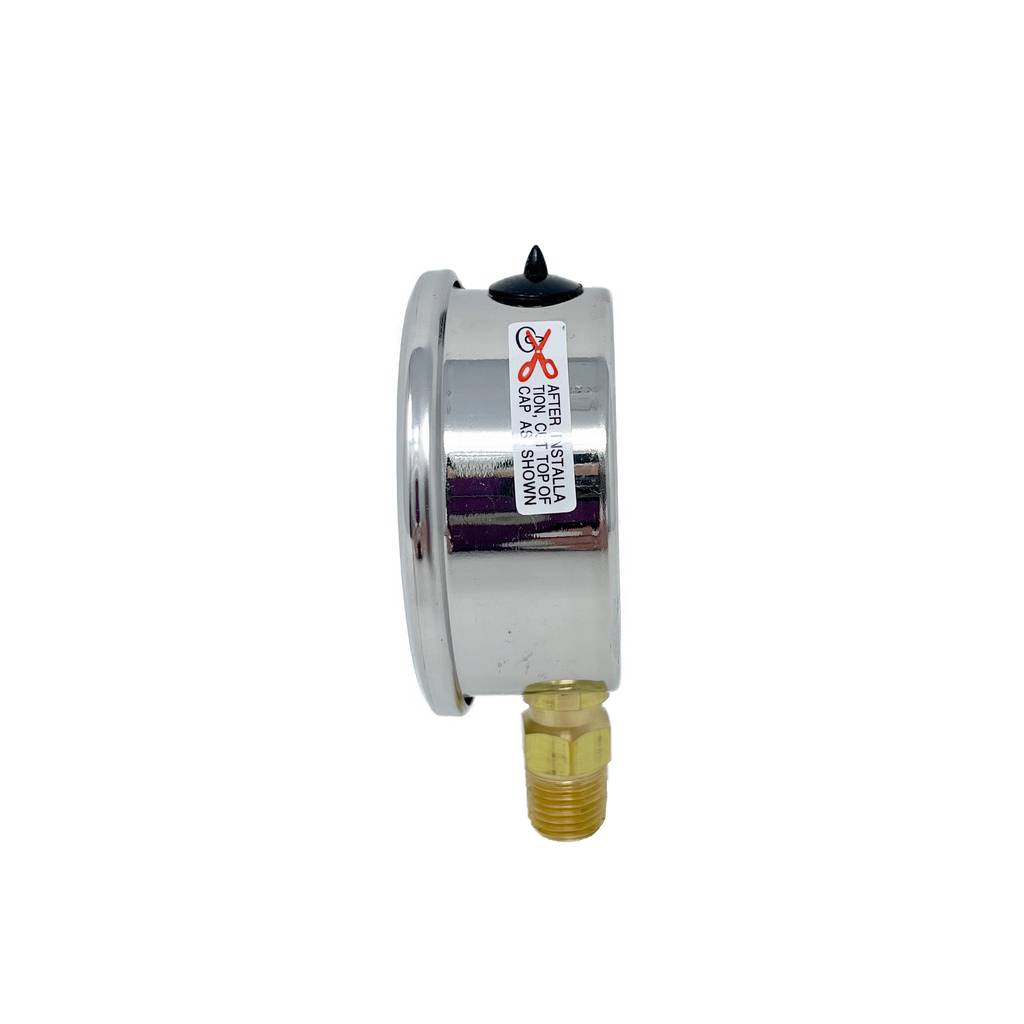

The Dynamic CF Series of Glycerine-Filled gauges offer an accurate, inexpensive option for your pressure gauge needs. CF gauges are constructed with a stainless steel case, bronze bourdon tube and connection, and a polycarbonate lens. All Dynamic gauges come with a built-in snubber. Standard gauge faces are designed with both psi and bar dual scales in a variety of pressure ranges up to 10,000psi. Certificates of Accuracy are available for an additional cost.
