|Data Sheet||Download Datasheet|
|Usually Ships Within||Same Day|
|Factory Location||West Union, South Carolina|
|Gauge Face Size||2.5"|
|Gauge Pressure Range||0-200psi|
|Gauge Style Selection||Panel Clamp with U-Bolt|
|Gauge Connection||1/4" NPT|
|Country of Manufacture||China|

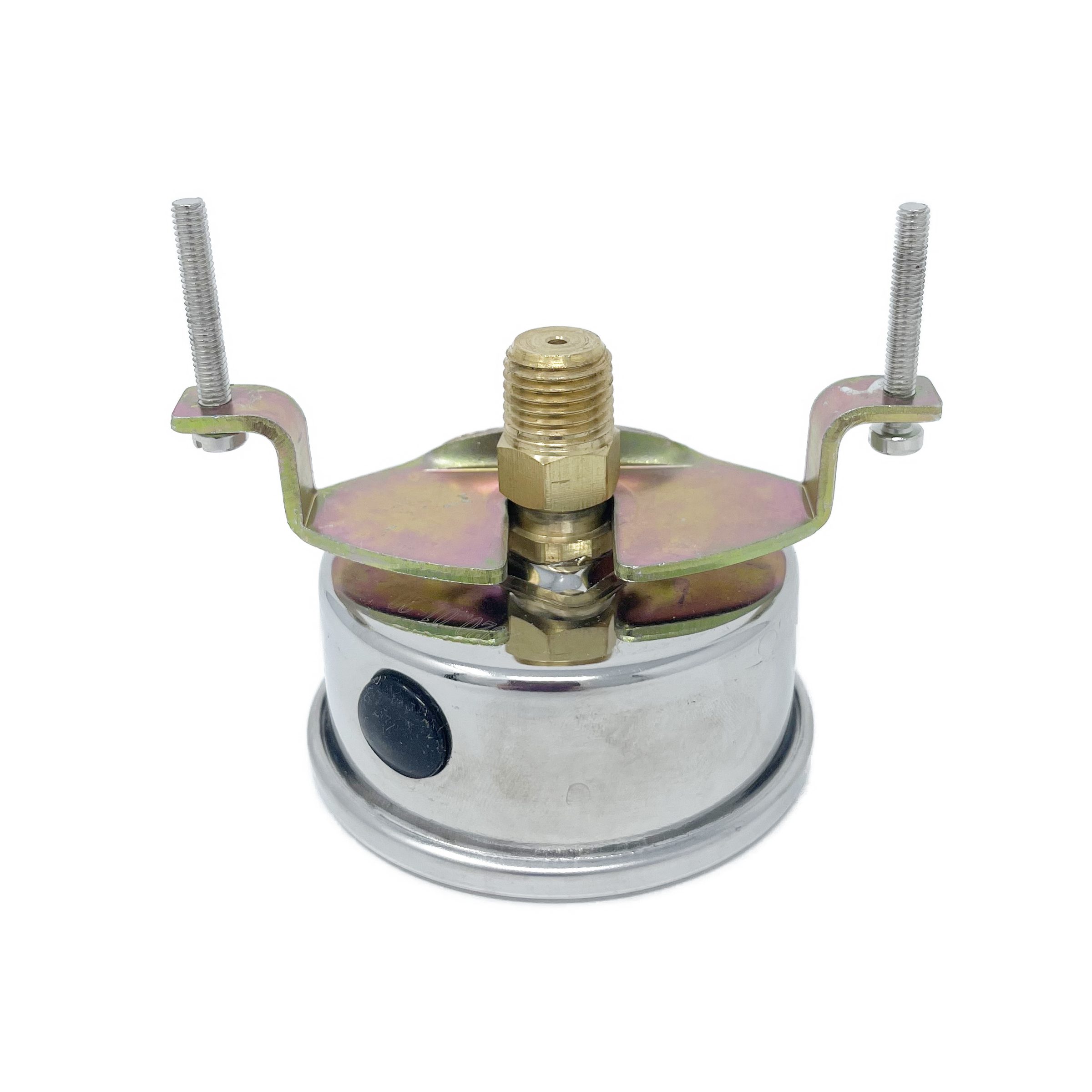

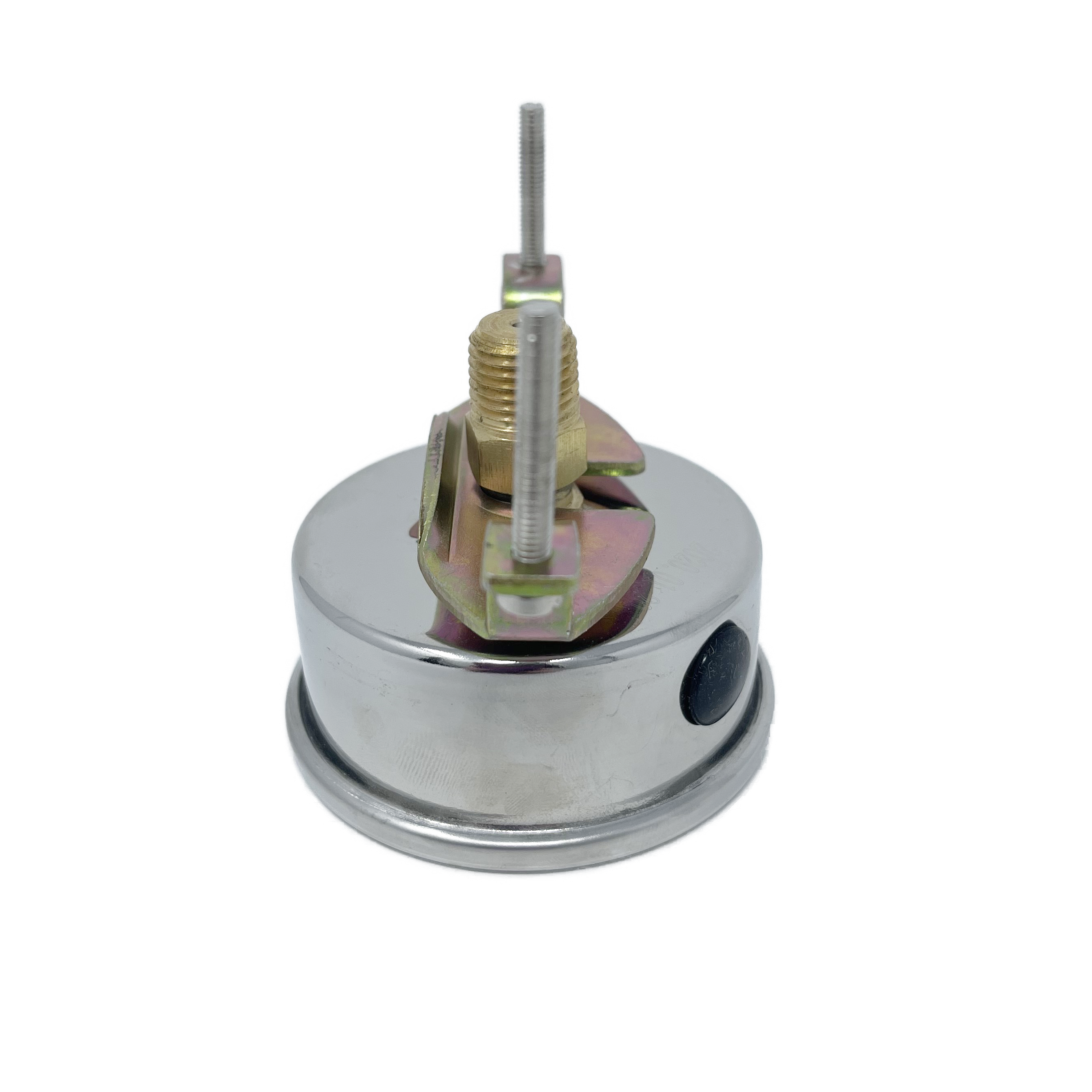

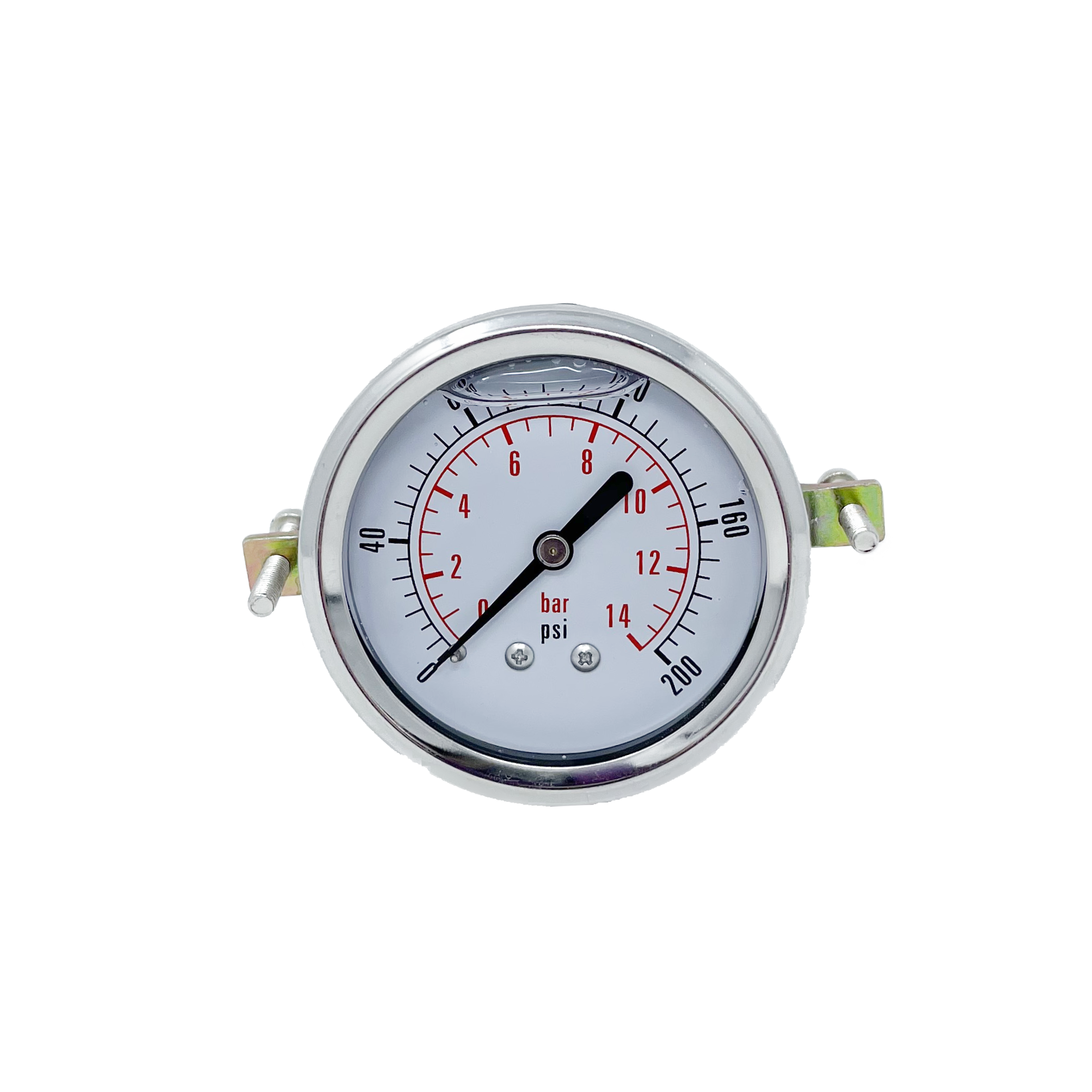

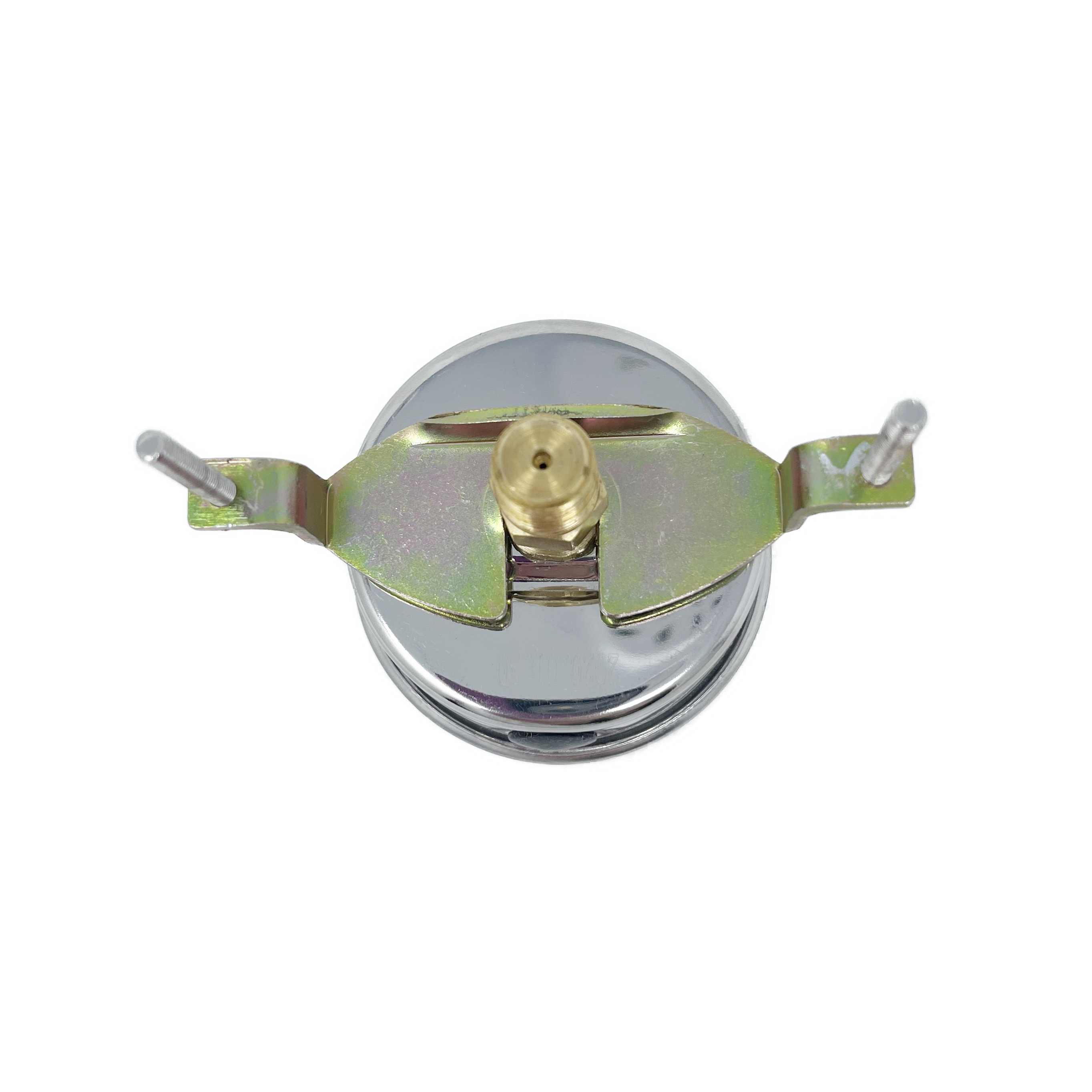

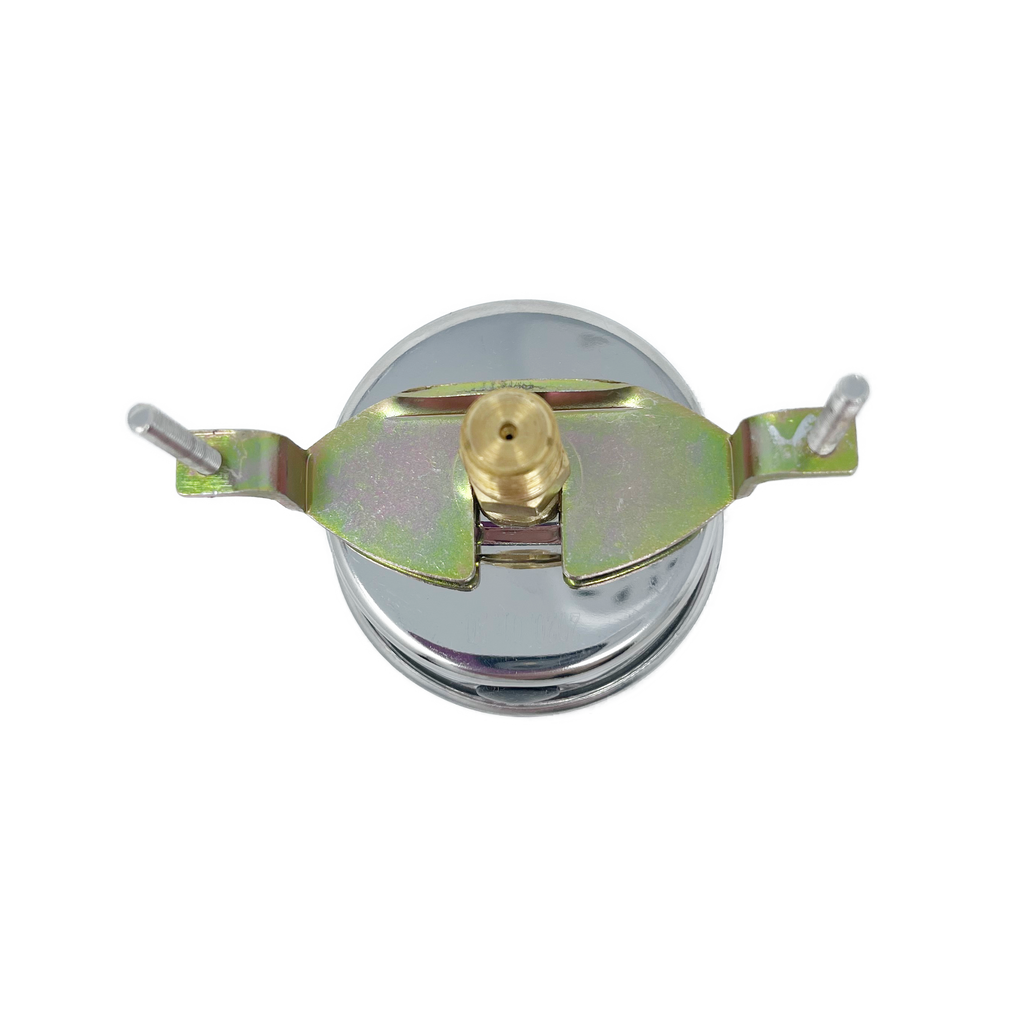

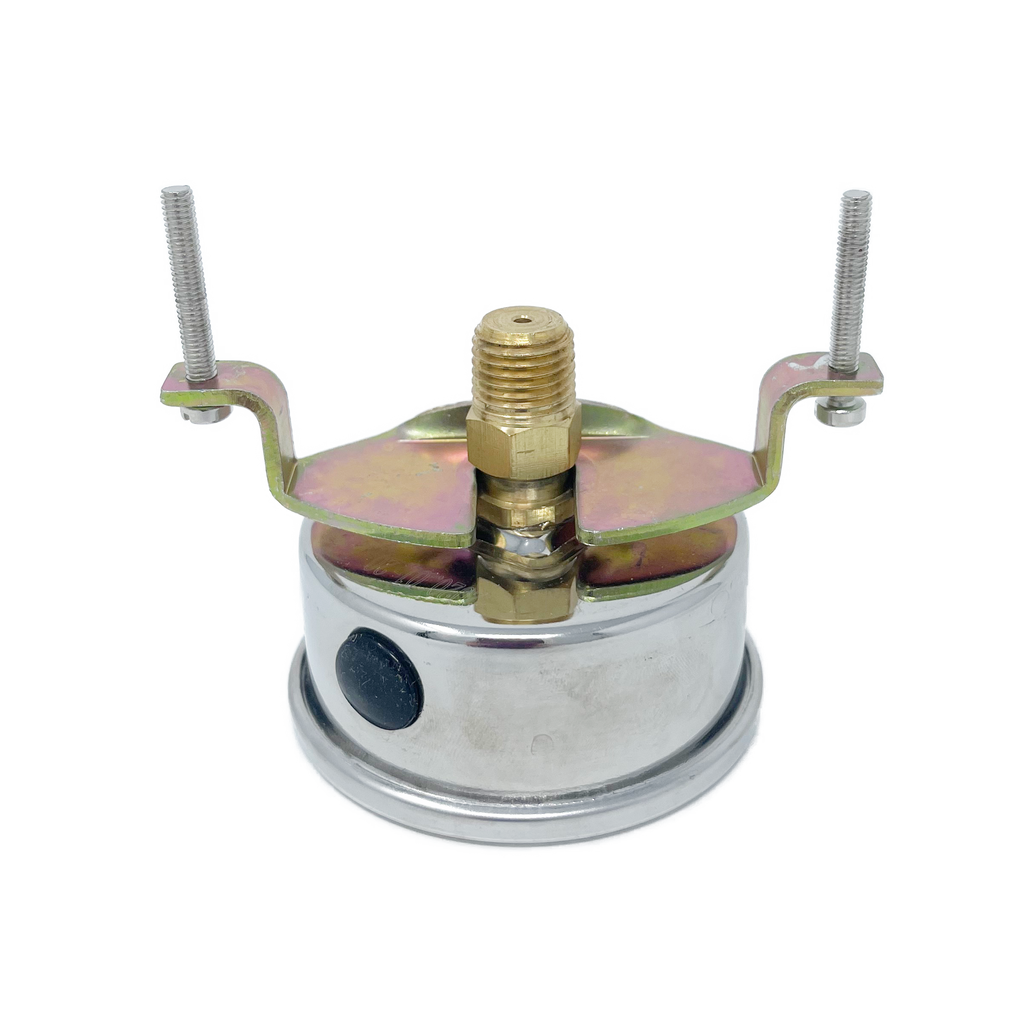

The Dynamic CF Series of Glycerine-Filled gauges offer an accurate, inexpensive option for your pressure gauge needs. CF gauges are constructed with a stainless steel case, bronze bourdon tube and connection, and a polycarbonate lens. All Dynamic gauges come with a built-in snubber. Standard gauge faces are designed with both psi and bar dual scales in a variety of pressure ranges up to 10,000psi. Certificates of Accuracy are available for an additional cost.
