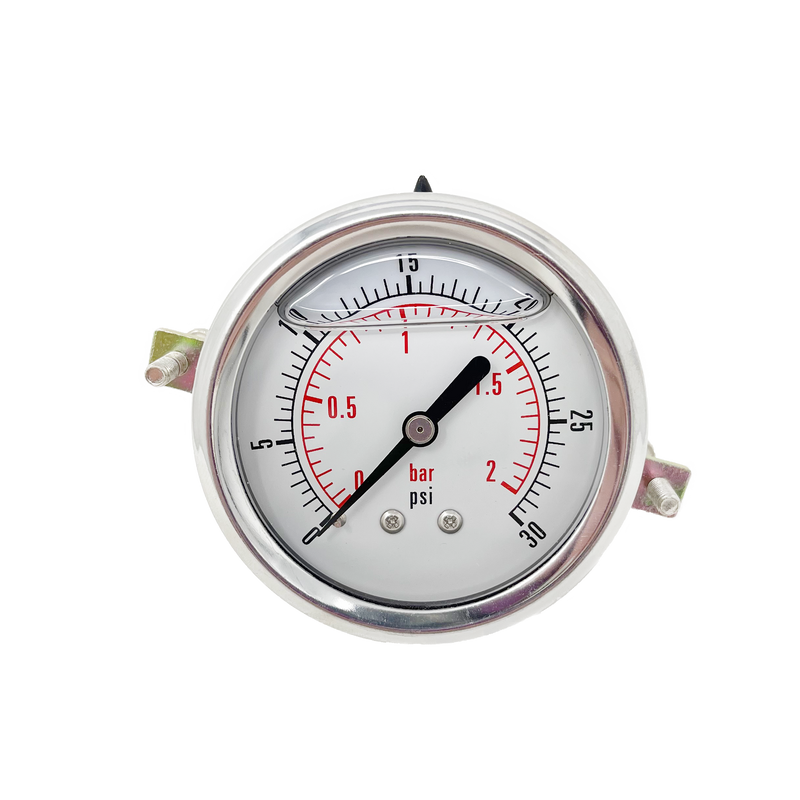

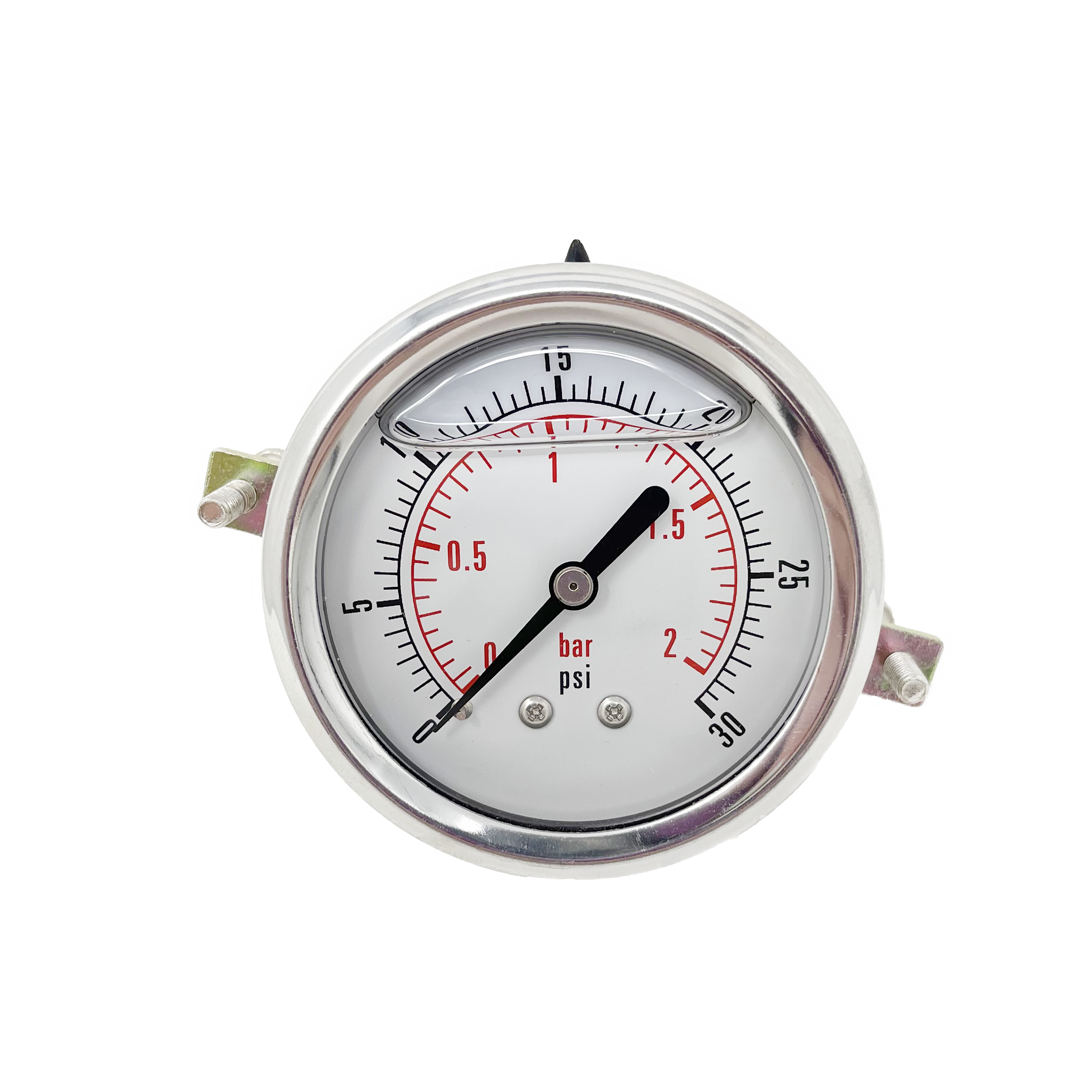

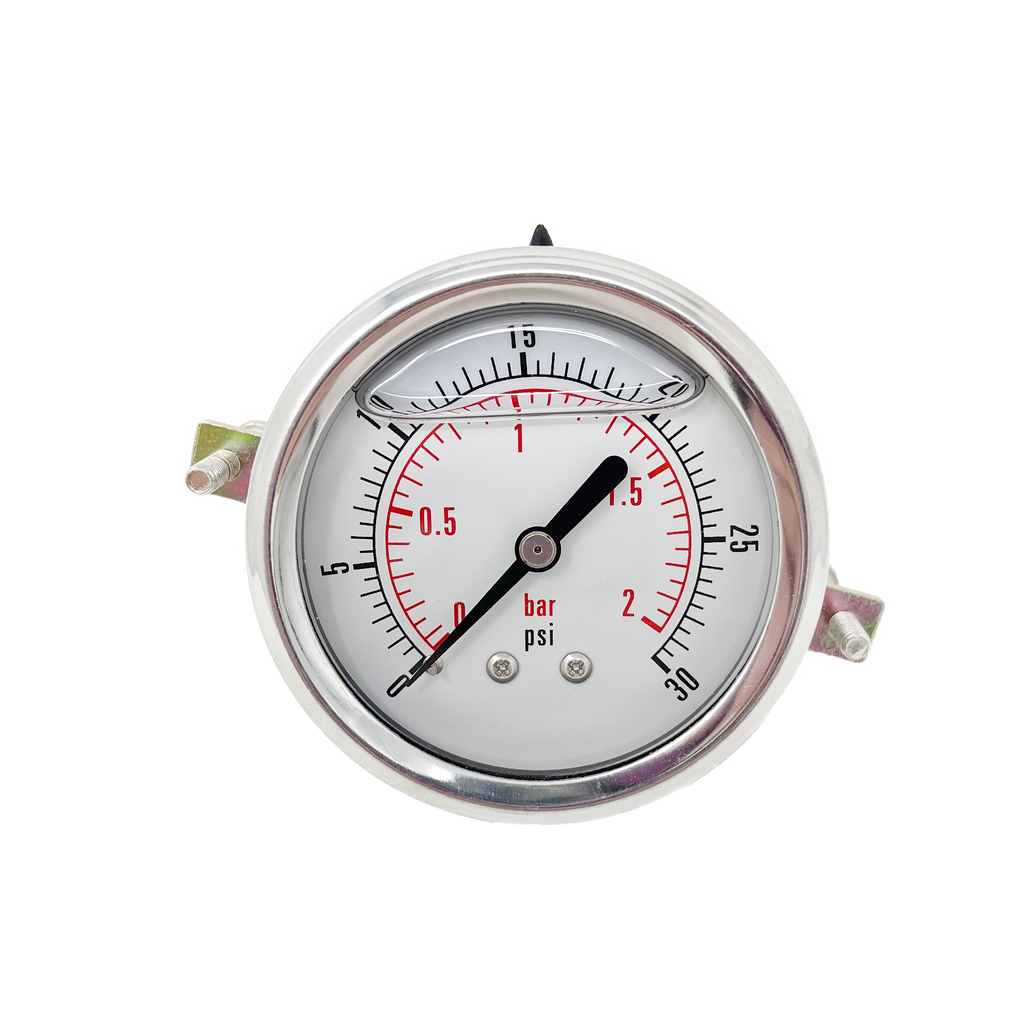

CF1P-002B : Dynamic Pressure Gauge, 2.5" Face, 0-30psi Pressure Range, 1/4" NPT, Panel Clamp with U-Bolt Style

Save $18.01
Same Day
20

Price:
Sale price$13.99 Regular price$32.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within Same Day
Factory Location West Union, South Carolina
Material Stainless Steel
Gauge Face Size 2.5"
Gauge Pressure Range 0-30psi

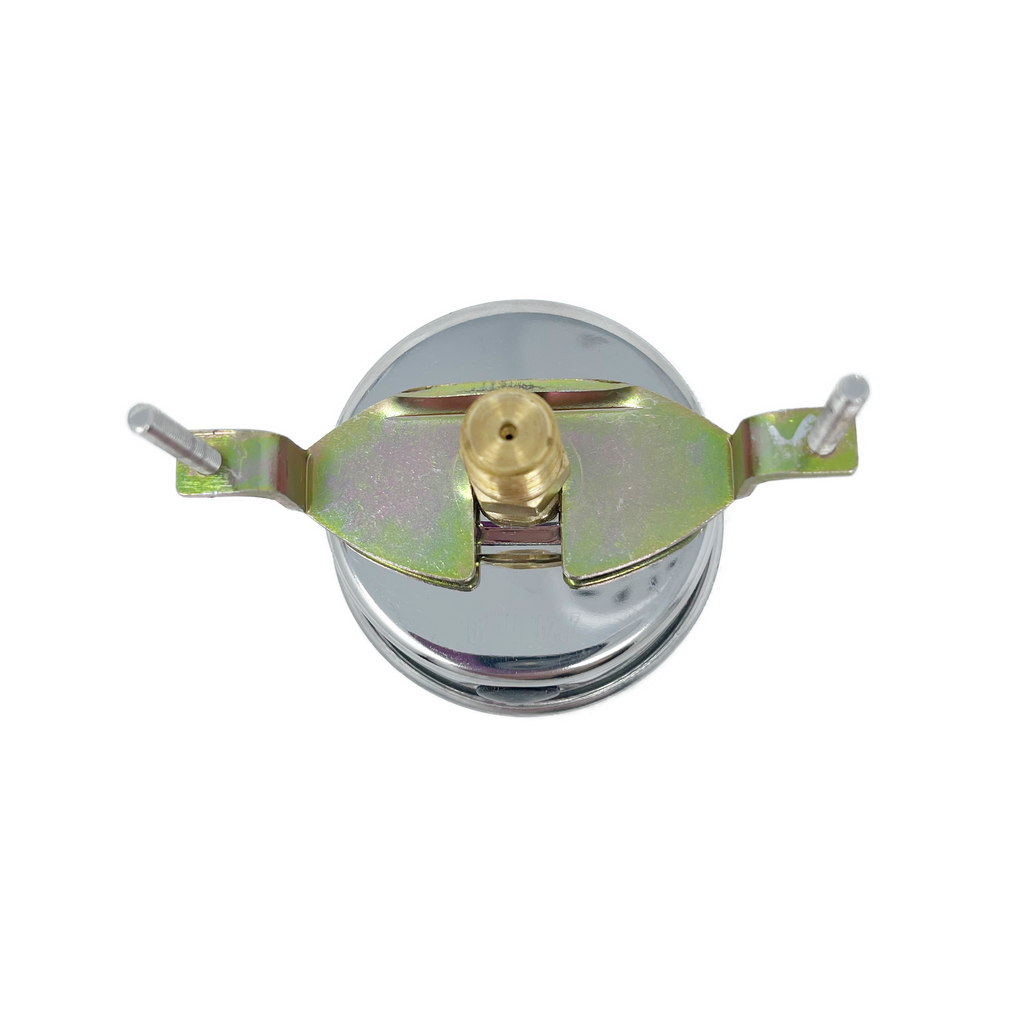

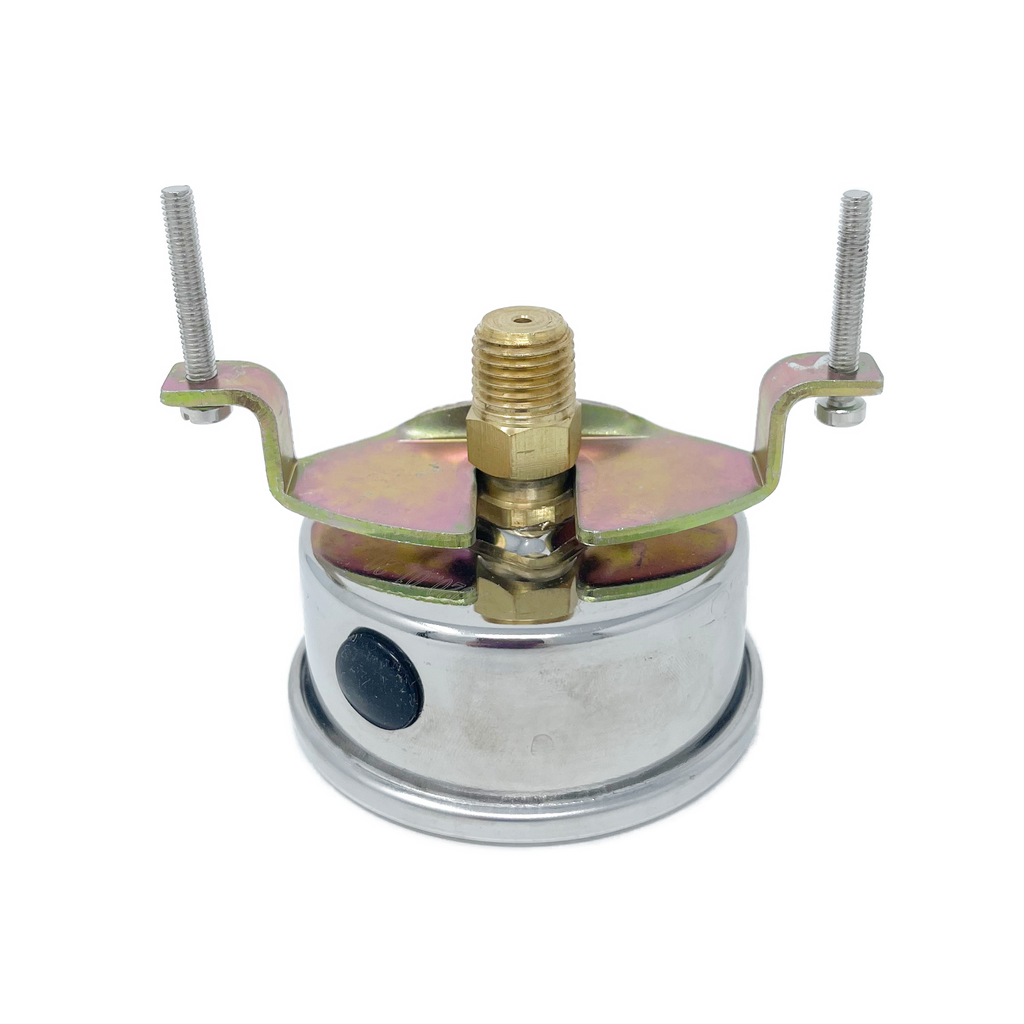

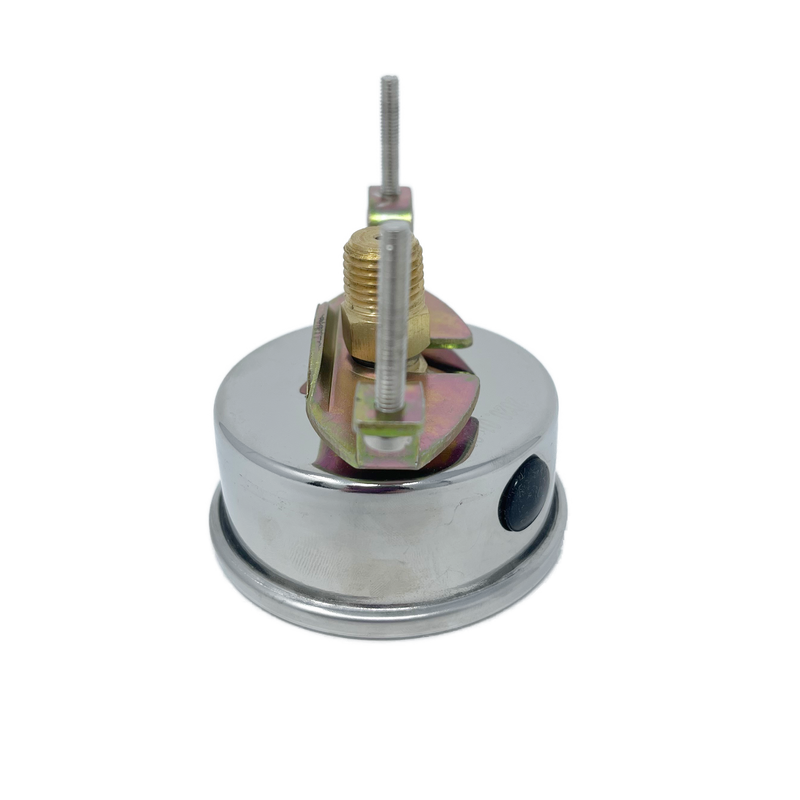

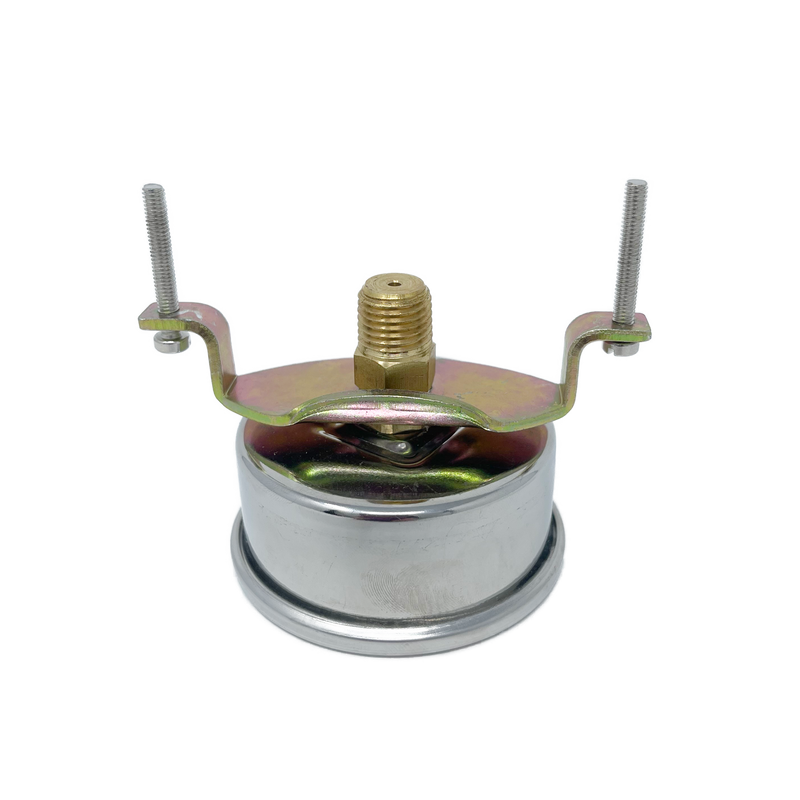

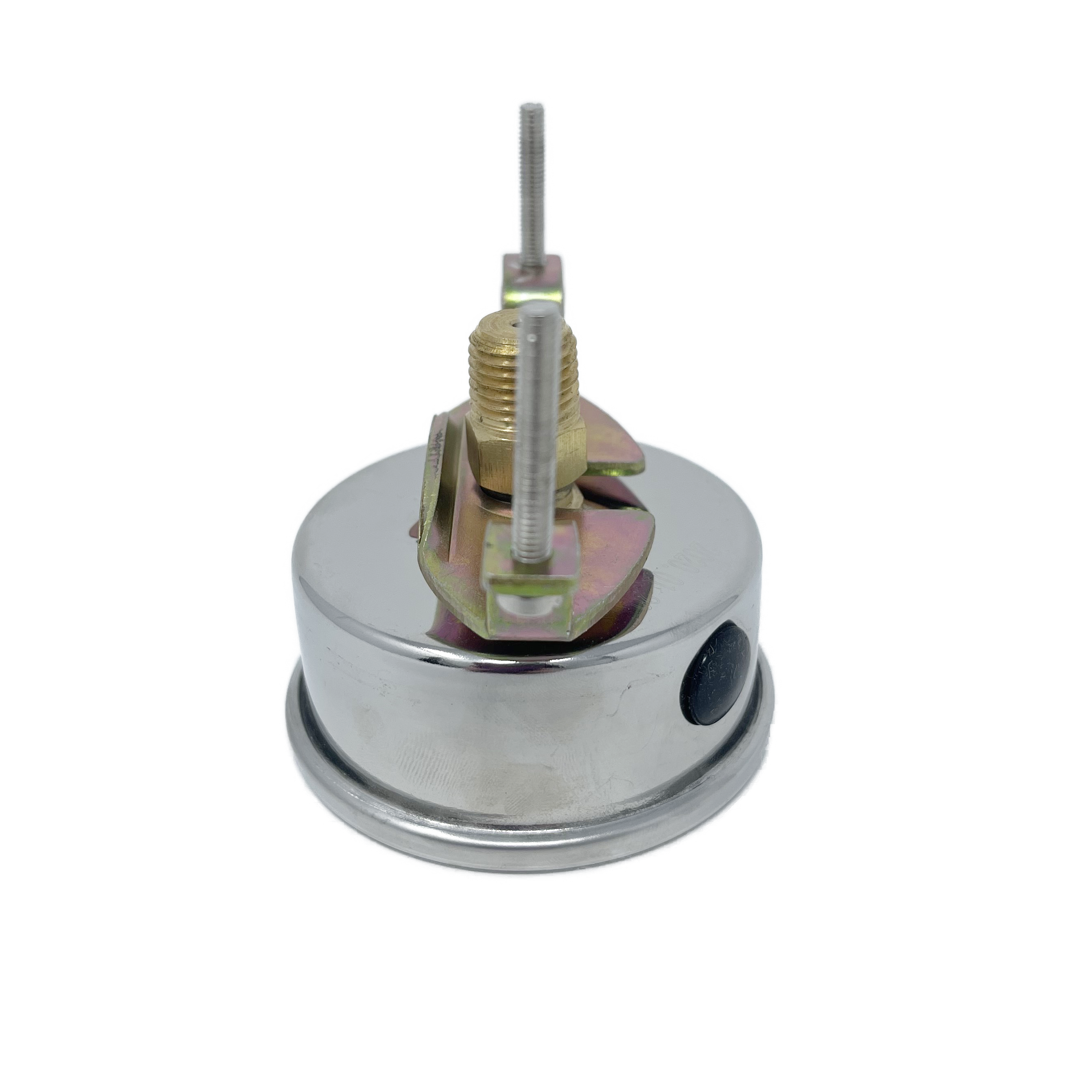

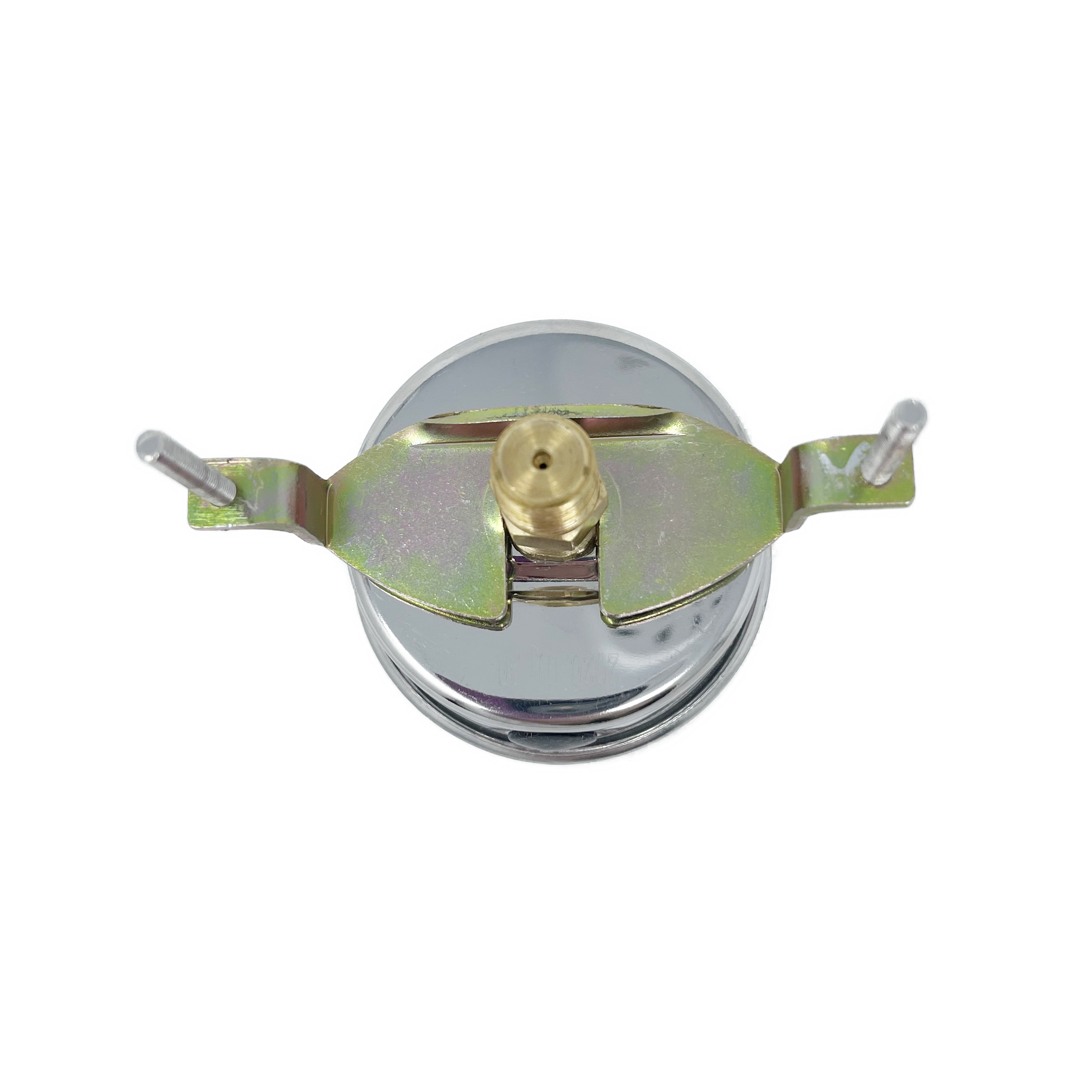

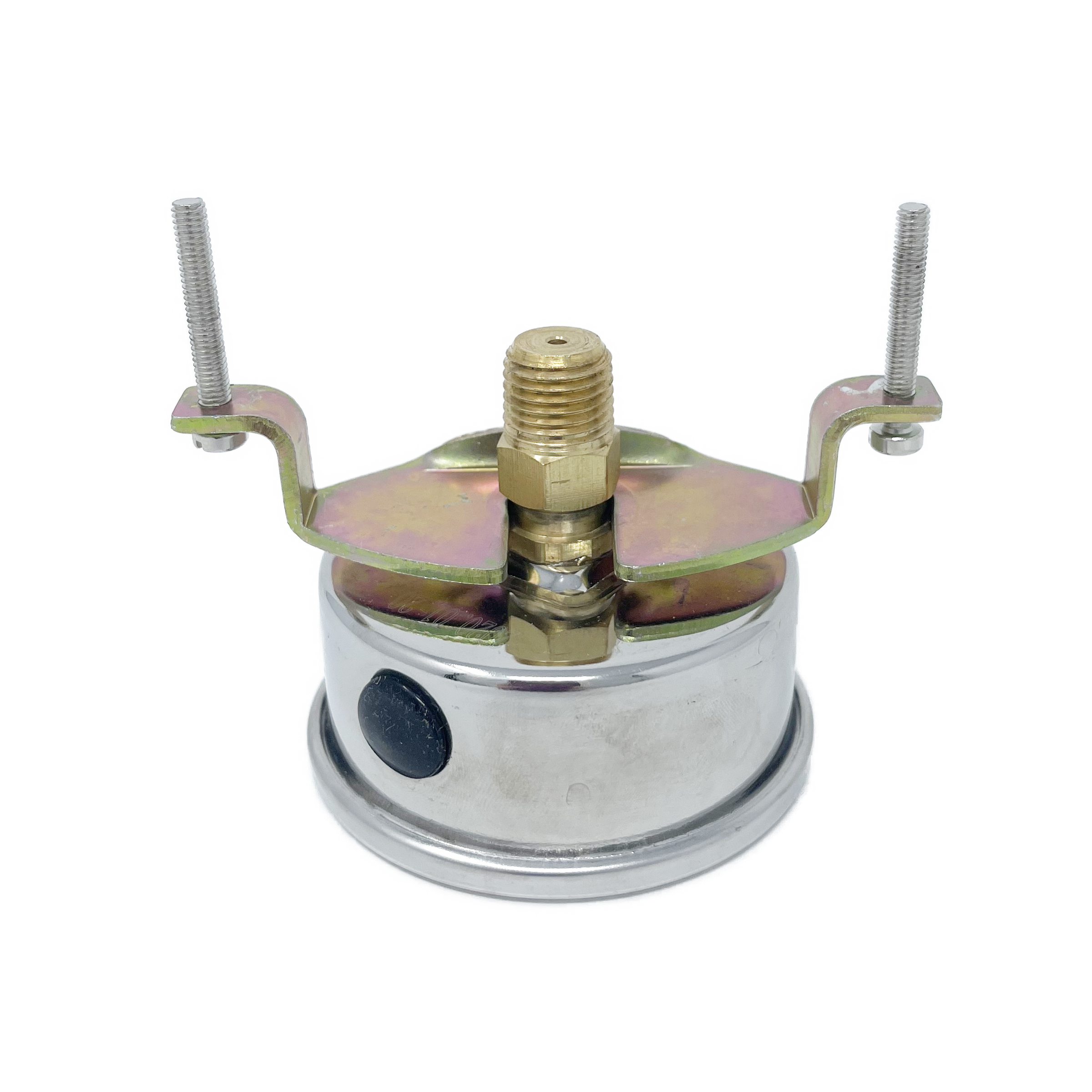

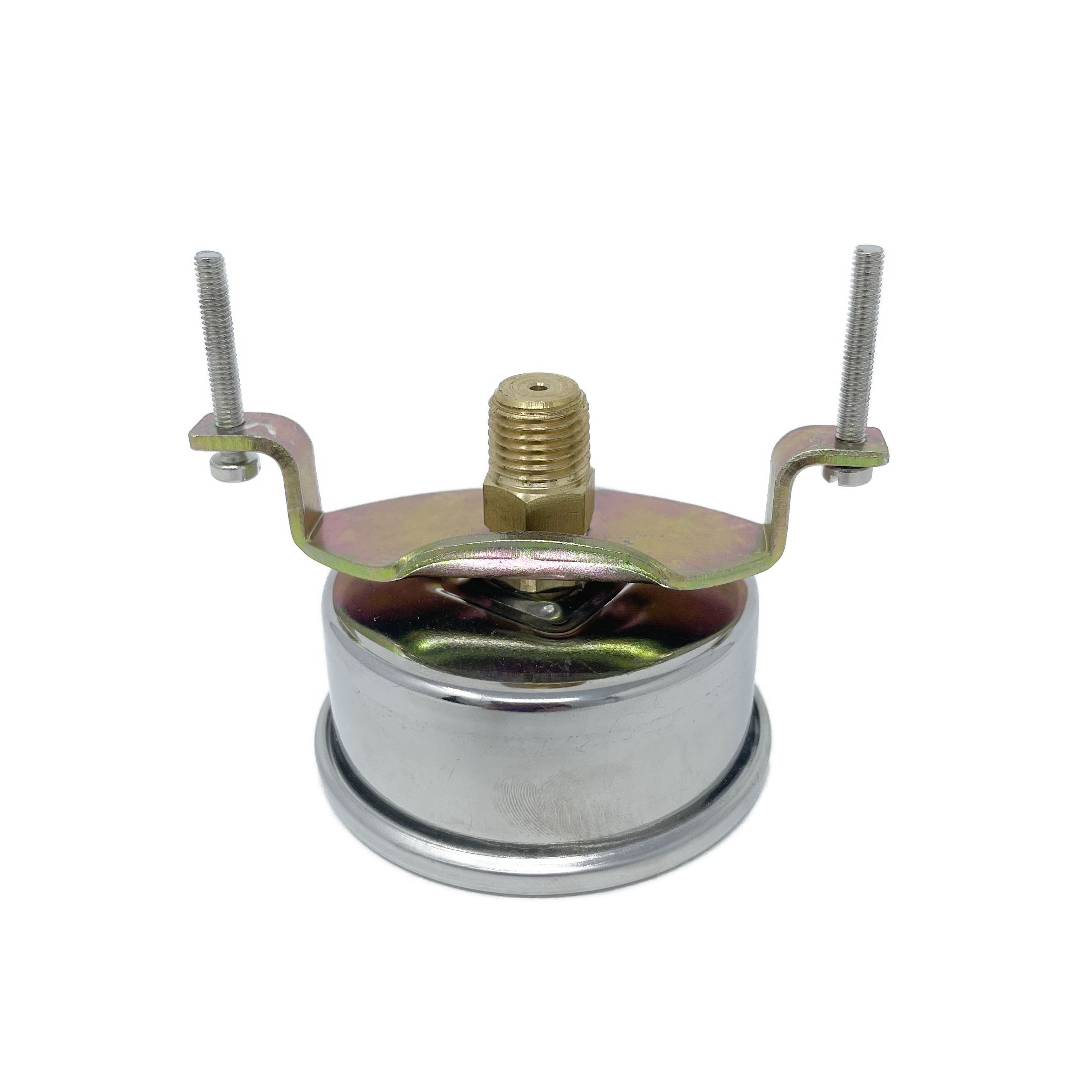

Gauge Style Selection Panel Clamp with U-Bolt
Gauge Connection 1/4" NPT
Country of Manufacture China
Height 3.18 inches
Length 2.25 inches
Width 3.18 inches

Description

The Dynamic CF Series of Glycerine-Filled gauges offer an accurate, inexpensive option for your pressure gauge needs. CF gauges are constructed with a stainless steel case, bronze bourdon tube and connection, and a polycarbonate lens. All Dynamic gauges come with a built-in snubber. Standard gauge faces are designed with both psi and bar dual scales in a variety of pressure ranges up to 10,000psi. Certificates of Accuracy are available for an additional cost.
