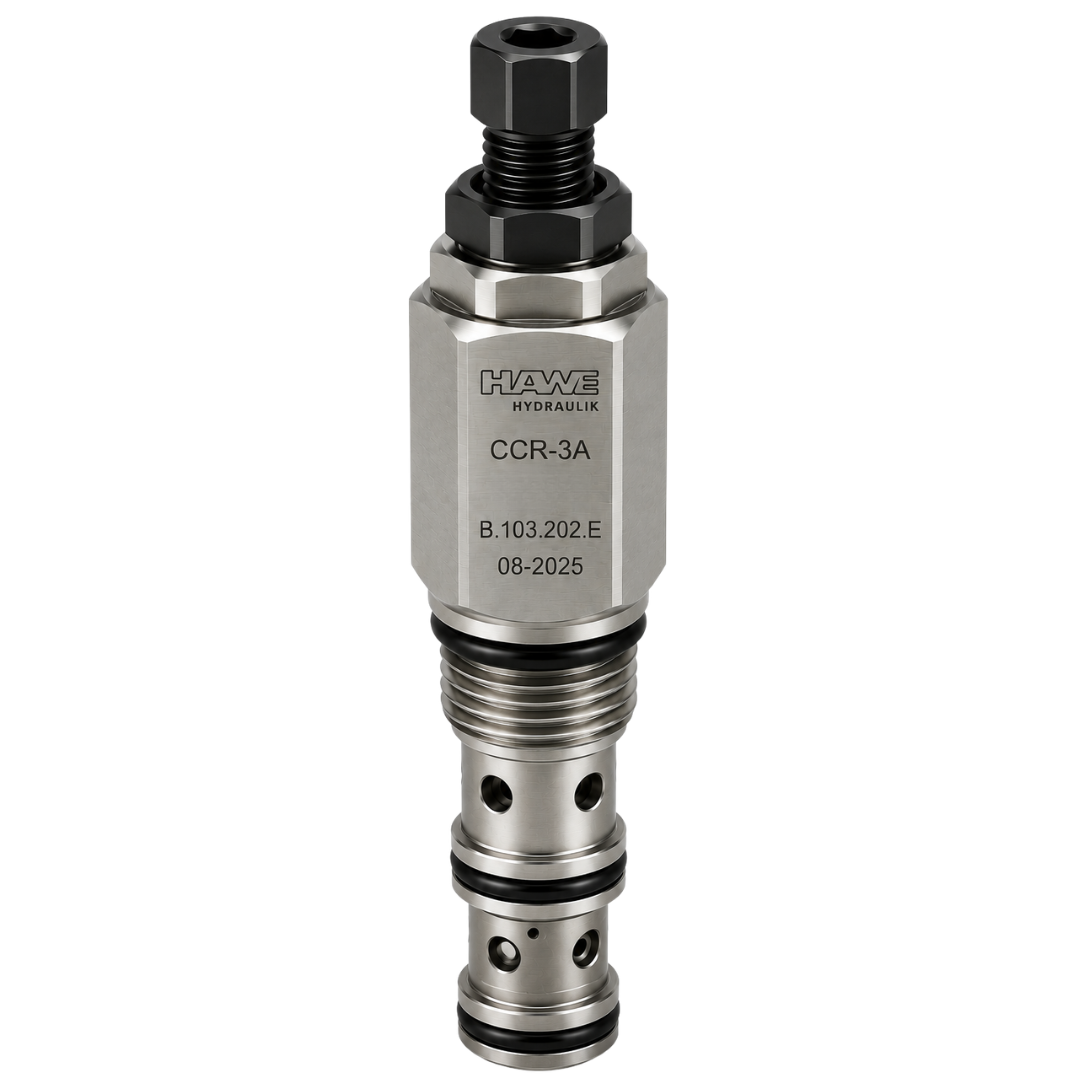

CCR-3A-20-W-L : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Bi-Directional, 2 Ports, T-3A Cavity, 31.7GPM, 800-4567psi (1015psi Standard), Hex Socket Screw (similar to RBFA-LWN)
CCR-3A-20-W-L : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Bi-Directional, 2 Ports, T-3A Cavity, 31.7GPM, 800-4567psi (1015psi Standard), Hex Socket Screw (similar to RBFA-LWN)
Roll over image to zoom in Click on image to zoom
CCR-3A-20-W-L : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Bi-Directional, 2 Ports, T-3A Cavity, 31.7GPM, 800-4567psi (1015psi Standard), Hex Socket Screw (similar to RBFA-LWN)CCR-3A-20-W-L : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Bi-Directional, 2 Ports, T-3A Cavity, 31.7GPM, 800-4567psi (1015psi Standard), Hex Socket Screw (similar to RBFA-LWN)

CCR-3A-20-W-L : Hawe Hydraulik Relief Valve, Direct-Acting, Poppet, Bi-Directional, 2 Ports, T-3A Cavity, 31.7GPM, 800-4567psi (1015psi Standard), Hex Socket Screw (similar to RBFA-LWN)

Save $135.24
Hawe HydraulikSKU: 5003 2548-00
4-6 Weeks
Price:
$167.87 $303.11

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Huntersville, North Carolina
Material Carbon Steel
Valve Type Relief
Adjustment Type Leakproof hex. socket screw
Type Cartridge
Pressure Rating 5075
Inlet Flow Rate 31.7
Pressure Range 800-4567psi (1015psi Standard)
Series CCR-3A
Cartridge Cavity T-3A
Country of Manufacture China
Height 1.125
Length 4.61
Width 1.125
Weight 0.66

Description

The HAWE CCR-3A Relief Valve is a compact, bi-directional direct-acting hydraulic cartridge relief valve engineered to provide fast, reliable overpressure protection in high-flow hydraulic systems. Designed for demanding mobile and industrial fluid power applications, the CCR-3A series helps protect pumps, actuators, hoses, manifolds, and hydraulic components from damaging pressure spikes while maintaining stable and responsive system performance.

Featuring a T-3A cavity design, operating pressures up to 350 bar (5,076 psi), and flow capacities up to 120 L/min, these hydraulic relief valves are ideal for hydraulic power units, mobile equipment, industrial machinery, and high-performance hydraulic circuits requiring dependable pressure limiting in both flow directions. The HAWE CCR-3A series offers rapid typical response times of approximately 2 ms, low leakage characteristics, dirt-tolerant operation, and multiple pressure adjustment ranges with available leakproof screw and lockable handknob adjustment options for secure field tuning and reliable operation in harsh environments.

Warning: Improper valve selection, pressure adjustment, installation, or system integration may result in hydraulic system failure, uncontrolled pressure conditions, equipment damage, serious injury, or death. Always verify compatibility with the intended hydraulic system, follow manufacturer installation torque specifications, ensure proper pressure settings for the application, and adhere to all hydraulic safety procedures before operation.
