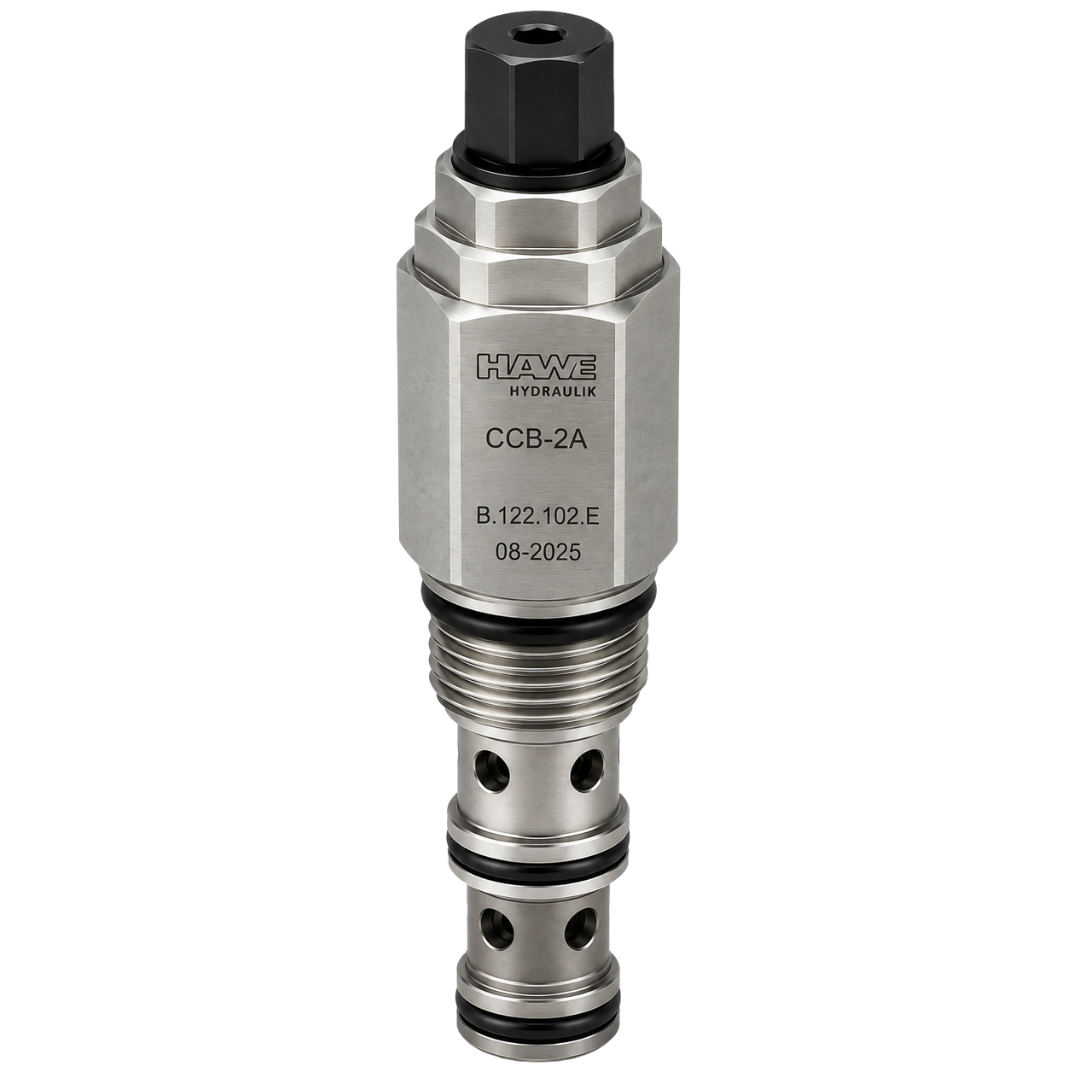

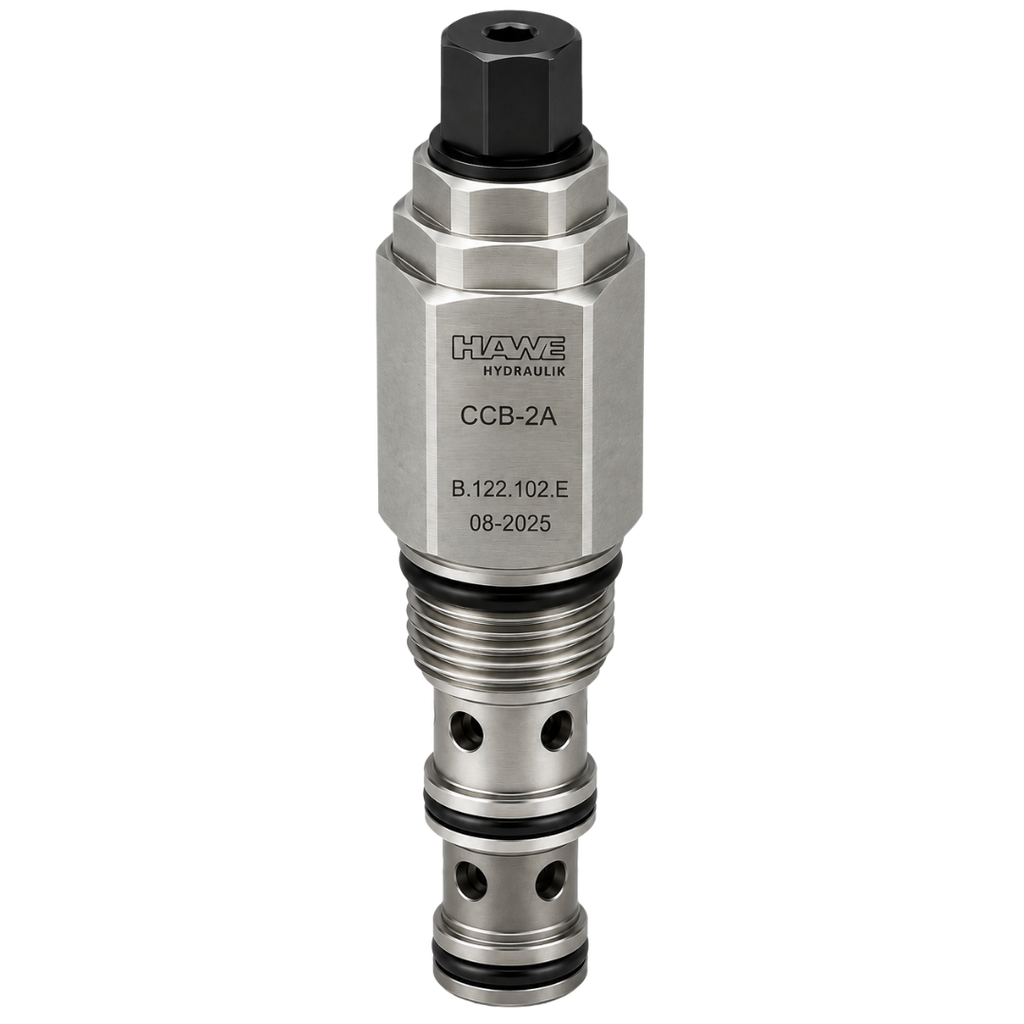

CCB-2A-33-H-L : Hawe Hydraulik Counterbalance Valve, without pilot assist, 3:1 Pilot Ratio, T-2A Cavity, 31.7GPM, 1015-4060psi (3045psi Standard), 25psi Cracking, Leakproof hex socket screw (similar to Sun CBEA-LHN)
CCB-2A-33-H-L : Hawe Hydraulik Counterbalance Valve, without pilot assist, 3:1 Pilot Ratio, T-2A Cavity, 31.7GPM, 1015-4060psi (3045psi Standard), 25psi Cracking, Leakproof hex socket screw (similar to Sun CBEA-LHN)
Roll over image to zoom in Click on image to zoom
CCB-2A-33-H-L : Hawe Hydraulik Counterbalance Valve, without pilot assist, 3:1 Pilot Ratio, T-2A Cavity, 31.7GPM, 1015-4060psi (3045psi Standard), 25psi Cracking, Leakproof hex socket screw (similar to Sun CBEA-LHN)CCB-2A-33-H-L : Hawe Hydraulik Counterbalance Valve, without pilot assist, 3:1 Pilot Ratio, T-2A Cavity, 31.7GPM, 1015-4060psi (3045psi Standard), 25psi Cracking, Leakproof hex socket screw (similar to Sun CBEA-LHN)

CCB-2A-33-H-L : Hawe Hydraulik Counterbalance Valve, without pilot assist, 3:1 Pilot Ratio, T-2A Cavity, 31.7GPM, 1015-4060psi (3045psi Standard), 25psi Cracking, Leakproof hex socket screw (similar to Sun CBEA-LHN)

Save $57.32
Hawe HydraulikSKU: 5003 0276-00
4-6 Weeks
Price:
$71.15 $128.47

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Huntersville, North Carolina
Material Carbon Steel
Valve Type Counterbalance Valve
Adjustment Type Leakproof hex socket screw
Type Cartridge
Inlet Flow Rate 31.7
Cracking Pressure 25
Pressure Range 1015-4060psi (3045psi Standard)
Series CCB-2A
Cartridge Cavity T-2A
Motor Pressure Rating 4060
Country of Manufacture China
Height 1.125
Length 3.67
Width 1.125
Weight 0.65

Description

The Hawe CCB-2A Counterbalance Valve is a high-performance hydraulic cartridge valve designed for reliable load holding, pressure control, and safe motion management in hydraulic systems without pilot assist. Engineered for demanding mobile and industrial fluid power applications, the CCB-2A series helps prevent uncontrolled load movement, actuator drift, and hydraulic shock while delivering smooth and stable operation in lifting, lowering, and load-retention circuits.

Featuring a compact 3-port T-2A cavity design, the valve supports operating pressures up to 280 bar (4,061 psi) and flow rates up to 120 L/min, making it ideal for hydraulic cylinders, winches, material handling equipment, mobile machinery, and industrial power units. The HAWE CCB-2A series is available in multiple pressure adjustment ranges and leakproof adjustment configurations for flexible integration into a wide range of hydraulic systems where dependable counterbalance performance is critical.

Warning: Improper valve selection, pressure adjustment, installation, or system integration may result in uncontrolled load movement, equipment damage, serious injury, or death. Pressure settings should generally be adjusted to approximately 1.3 times the maximum load-induced pressure, and HAWE recommends keeping load pressure below 215 bar when operating near the maximum valve setting. Always verify system compatibility, follow manufacturer installation torque specifications, and adhere to all hydraulic safety procedures before operation.
