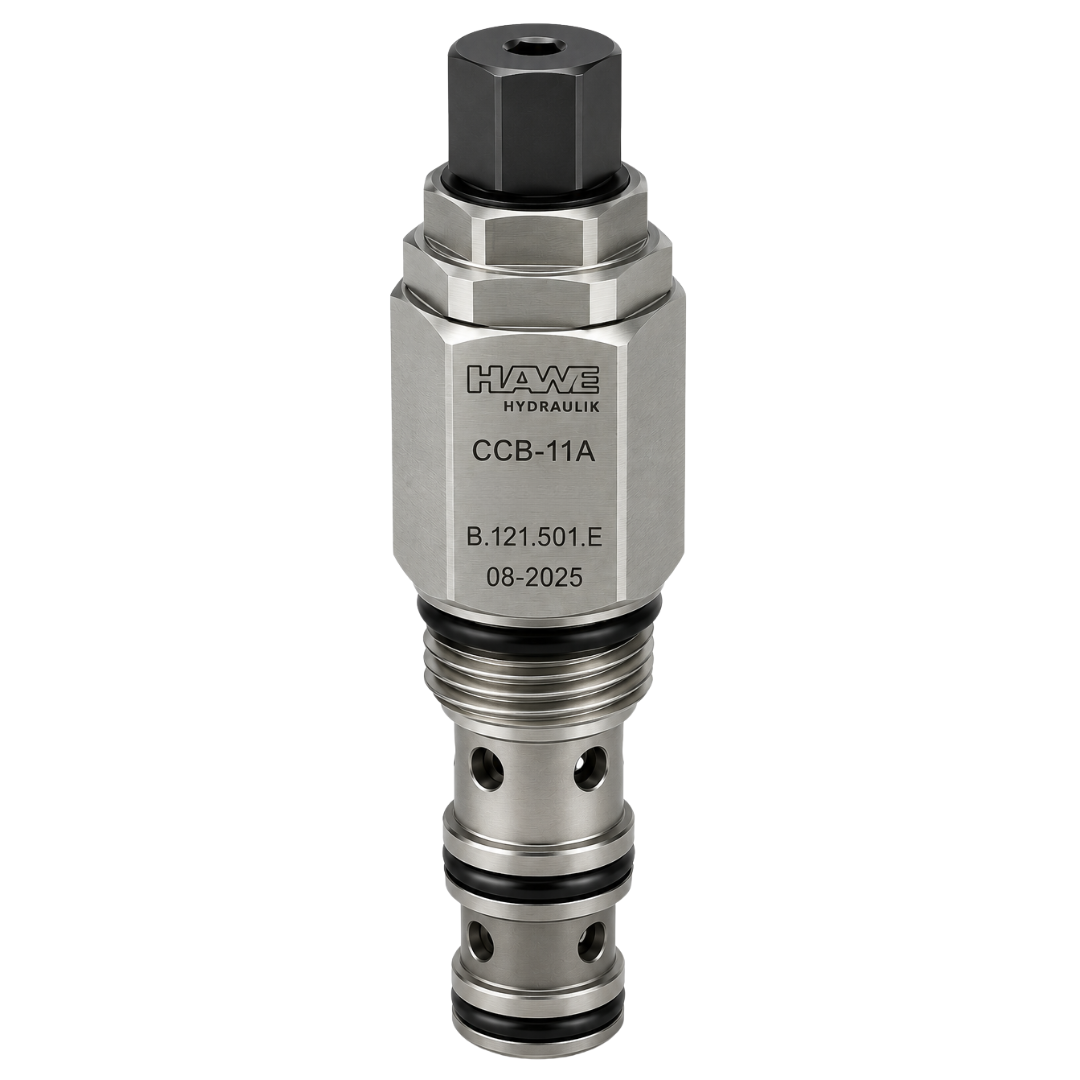

CCB-11A-30-C-L : Hawe Hydraulik Counterbalance Valve, Non-Vented, 10:1 Pilot Ratio, T-11A Cavity, 15.85GPM, 2030-5075psi Range (3045psi Standard), 5psi Cracking, Leakproof hex socket screw (similar to Sun CBCH-LCN)
CCB-11A-30-C-L : Hawe Hydraulik Counterbalance Valve, Non-Vented, 10:1 Pilot Ratio, T-11A Cavity, 15.85GPM, 2030-5075psi Range (3045psi Standard), 5psi Cracking, Leakproof hex socket screw (similar to Sun CBCH-LCN)
Roll over image to zoom in Click on image to zoom
CCB-11A-30-C-L : Hawe Hydraulik Counterbalance Valve, Non-Vented, 10:1 Pilot Ratio, T-11A Cavity, 15.85GPM, 2030-5075psi Range (3045psi Standard), 5psi Cracking, Leakproof hex socket screw (similar to Sun CBCH-LCN)CCB-11A-30-C-L : Hawe Hydraulik Counterbalance Valve, Non-Vented, 10:1 Pilot Ratio, T-11A Cavity, 15.85GPM, 2030-5075psi Range (3045psi Standard), 5psi Cracking, Leakproof hex socket screw (similar to Sun CBCH-LCN)

CCB-11A-30-C-L : Hawe Hydraulik Counterbalance Valve, Non-Vented, 10:1 Pilot Ratio, T-11A Cavity, 15.85GPM, 2030-5075psi Range (3045psi Standard), 5psi Cracking, Leakproof hex socket screw (similar to Sun CBCH-LCN)

Save $40.27
Hawe HydraulikSKU: 5003 0306-00
4-6 Weeks
Price:
$49.98 $90.25

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet

Download Datasheet

Usually Ships Within 4-6 Weeks
Factory Location Huntersville, North Carolina
Material Carbon Steel
Valve Type Counterbalance Valve
Adjustment Type Leakproof hex socket screw
Type Cartridge
Inlet Flow Rate 15.85
Cracking Pressure 5
Pressure Range 2030-5075psi (3045psi Standard)
Series CCB-11A
Cartridge Cavity T-11A
Motor Pressure Rating 5075
Country of Manufacture China
Height 0.875
Length 3.35
Width 0.875
Weight 0.35

Description

The Hawe CCB-11A Counterbalance Valve is a compact, high-performance hydraulic cartridge valve engineered to provide safe load holding, controlled lowering, and stable motion control in hydraulic systems with overrunning loads. Designed for mobile and industrial fluid power applications, the CCB-11A series helps prevent uncontrolled actuator movement, load drift, and hydraulic shock while delivering smooth and predictable operation.

These screw-in hydraulic counterbalance valves feature a T-11A cavity design, operating pressures up to 280 bar (4,061 psi), and flow capacities up to 60 L/min, making them ideal for hydraulic cylinders, winches, lifting systems, material handling equipment, and mobile machinery. Available with multiple pressure adjustment ranges, pilot ratios, leakproof adjustment options, and sealed pilot configurations, the HAWE CCB-11A valve series offers flexible integration into demanding hydraulic circuits where precise load control and system protection are critical.

Warning: Improper valve selection, pressure adjustment, installation, or system integration may result in uncontrolled load movement, equipment damage, serious injury, or death. Always verify compatibility with your hydraulic system, follow manufacturer torque specifications and hydraulic safety practices, and ensure pressure settings are correctly adjusted for the specific application before operation.
