Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Stainless Steel |
| Shape | Tee |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 9/16-18 (-06) |
| Side 1 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
| Side 2 Gender | MALE |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | ORB |
| Side 3 Gender | FEMALE |
| Side 3 Size | 9/16-18 (-06) |
| Side 3 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
Description

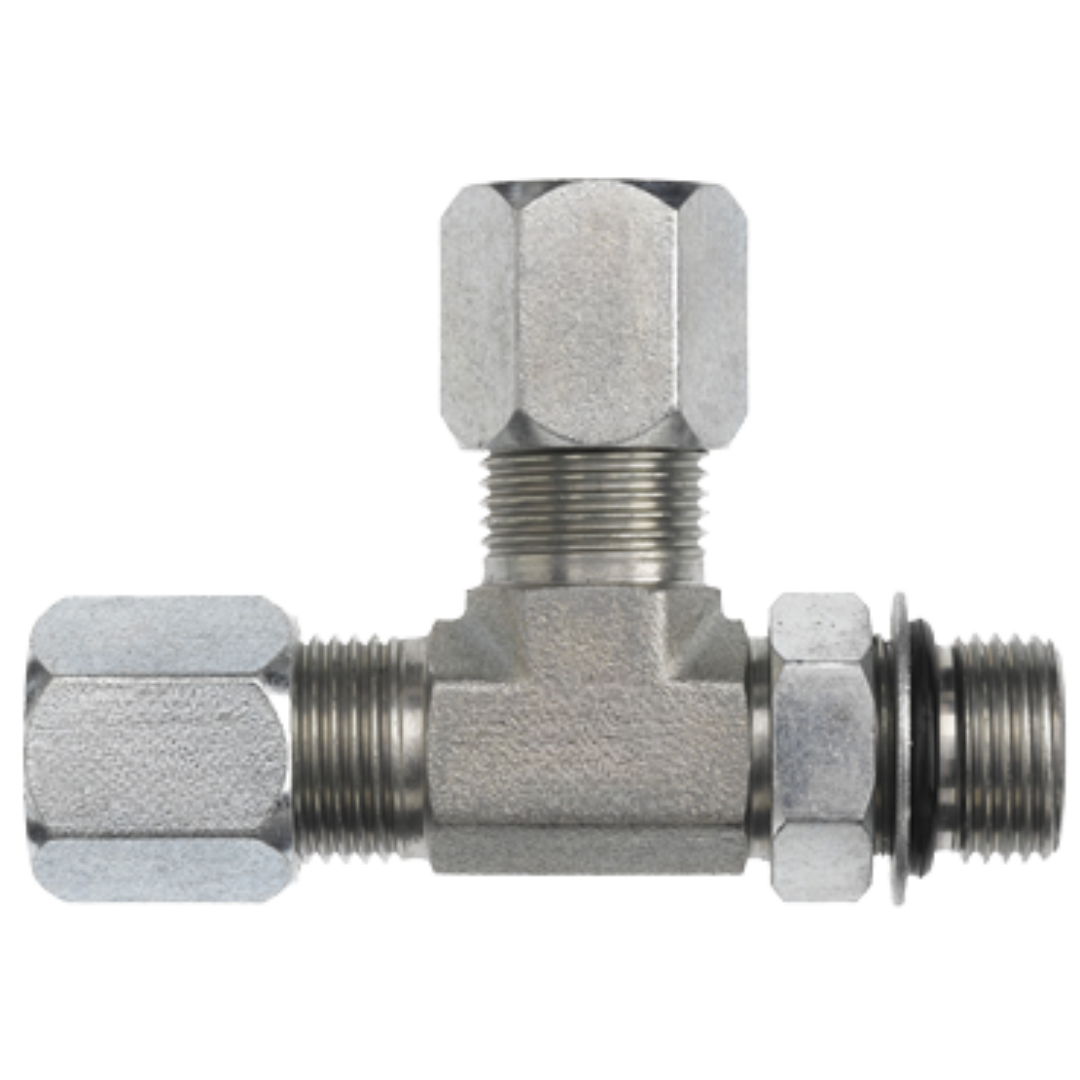

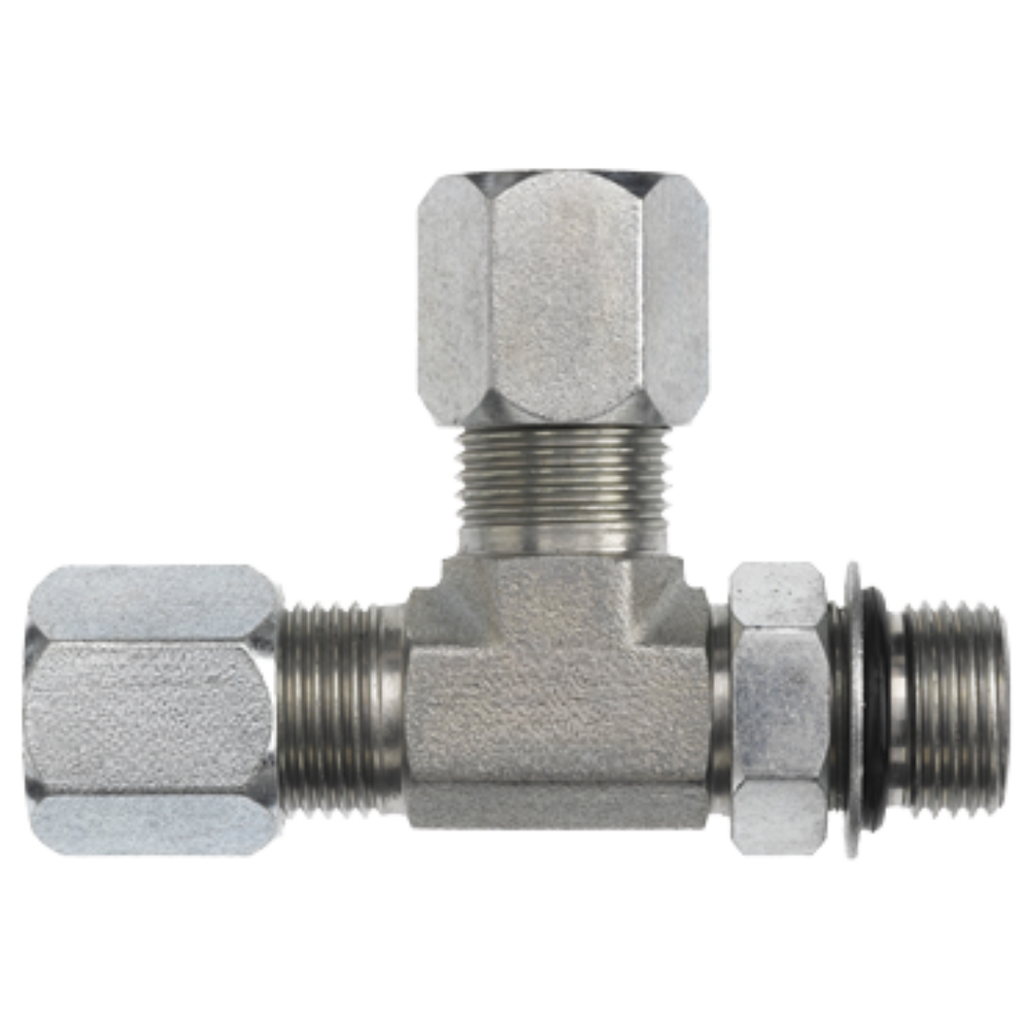

The Series C6804-NWO Tee Adapter, made from durable carbon steel, is a high-performance fitting designed to connect three sections of tubing in a hydraulic system. This tee adapter features Flareless Bite Type Tube Compression on two sides and a Male Adjustable ORB (O-Ring Boss) connection on the third side. The Flareless Bite Type fittings securely connect to tubing without the need for flaring, creating a leak-tight seal by compressing the ferrules into the tube. The Male Adjustable ORB connection uses a straight thread and an O-ring to form a reliable, adjustable seal, making it ideal for high-pressure applications. This versatile adapter is widely used in fluid power systems to ensure optimal fluid flow and prevent leaks, offering professionals a reliable solution for a variety of industrial applications.
