Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Material | Steel |
| Shape | 45-Degrees |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 1-1/16-12 (-12) |
| Side 1 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
| Side 2 Gender | MALE |
| Side 2 Size | 1-1/16-12 (-12) |
| Side 2 Type | ORB |
Description

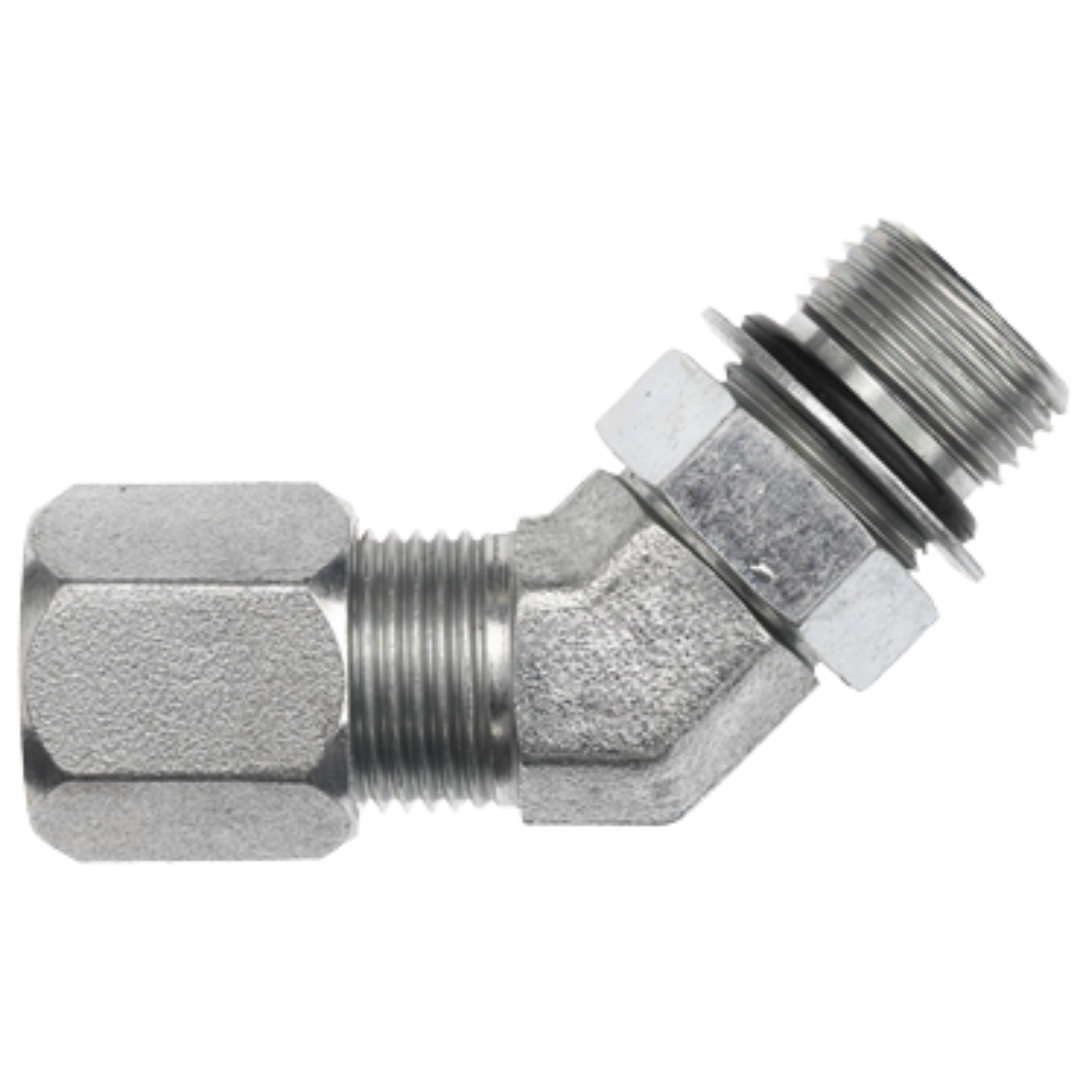

The Series C6802-NWO 45-Degree Angled Flareless Bite Type Tube Compression x Male Adjustable ORB Adapters, made from durable carbon steel, are designed for secure and leak-proof connections in hydraulic and fluid systems. These adapters feature a 45-degree angle, allowing for efficient routing of tubing in tight spaces. The flareless bite-type design uses ferrules to compress onto the tube, creating a strong seal without the need for a flared tube. On the male end, the Adjustable ORB (O-Ring Boss) connection ensures a leak-tight seal with the use of an O-ring, providing flexibility for fine-tuning the connection. Perfect for high-pressure systems, these adapters are commonly used in industries such as oil and gas, automotive, and manufacturing, offering reliable performance and durability in demanding environments.
