Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | 90-Degrees |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | ORB |
Description

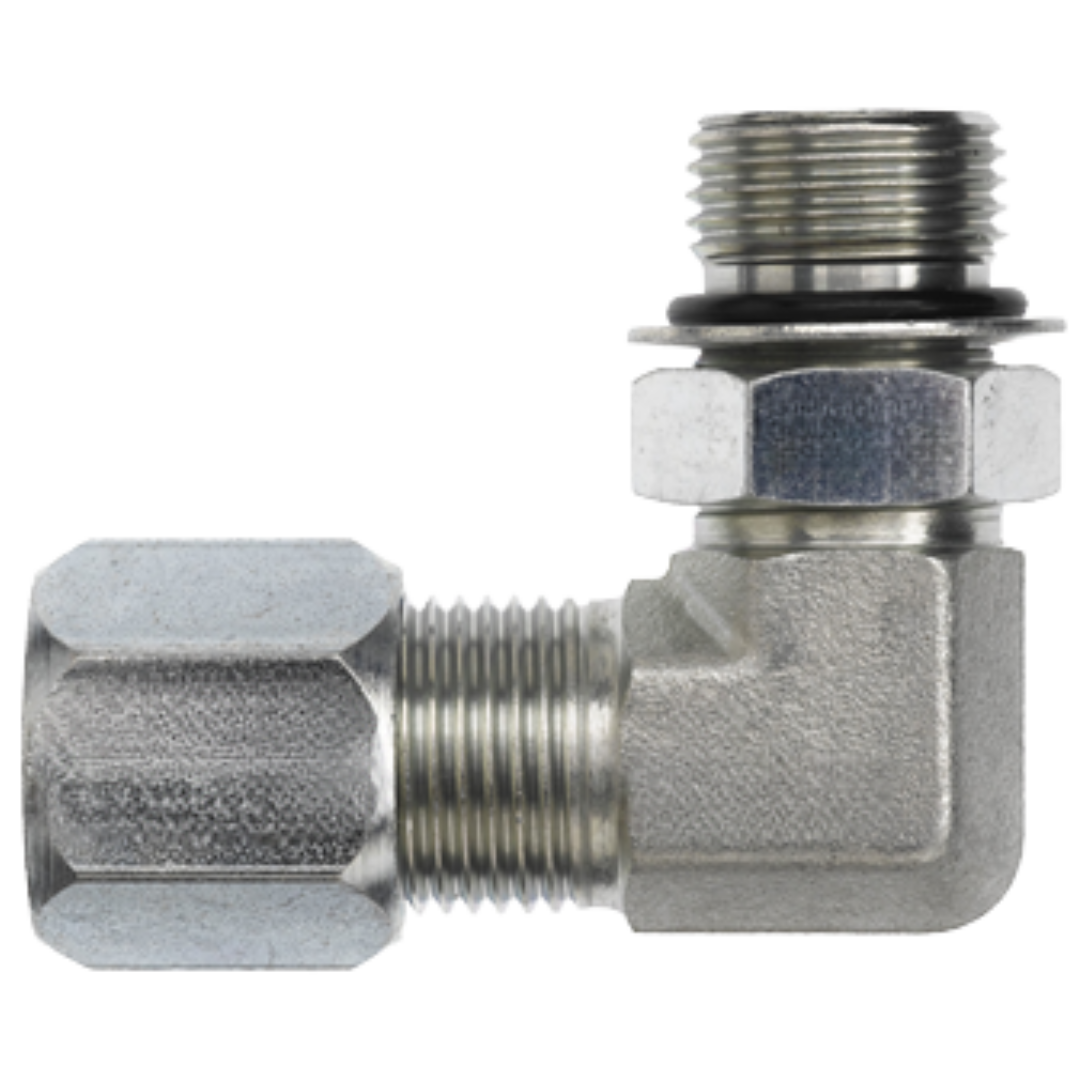

The Series C6801-NWO 90-Degree Angled Flareless Bite Type Tube Compression x Male Adjustable ORB Adapters, made from durable carbon steel, are designed to provide reliable, leak-proof connections in fluid systems, particularly in applications where tubing needs to be routed at a 90-degree angle. These adapters feature flareless bite-type tube compression on one end, which securely grips the tubing, and a male Adjustable ORB (O-Ring Boss) connection on the other end. The adjustable ORB fitting uses an O-ring to create a reliable seal, ensuring a tight and leak-free connection, even in high-pressure environments. Ideal for fluid power and hydraulic systems, these adapters offer flexibility and durability, making them a crucial component for professionals seeking efficient and secure connections in industrial and instrumentation systems.
