Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Split Flange |
| Pressure Rating | 6000 |
| Fitting Style | Rigid |
| Series | A-C62SF |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 2.5 |
| Width | 0.75 |
| Weight | 0.71 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 3/4 (-12) |
| Side 2 Type | Code 62 |
Description

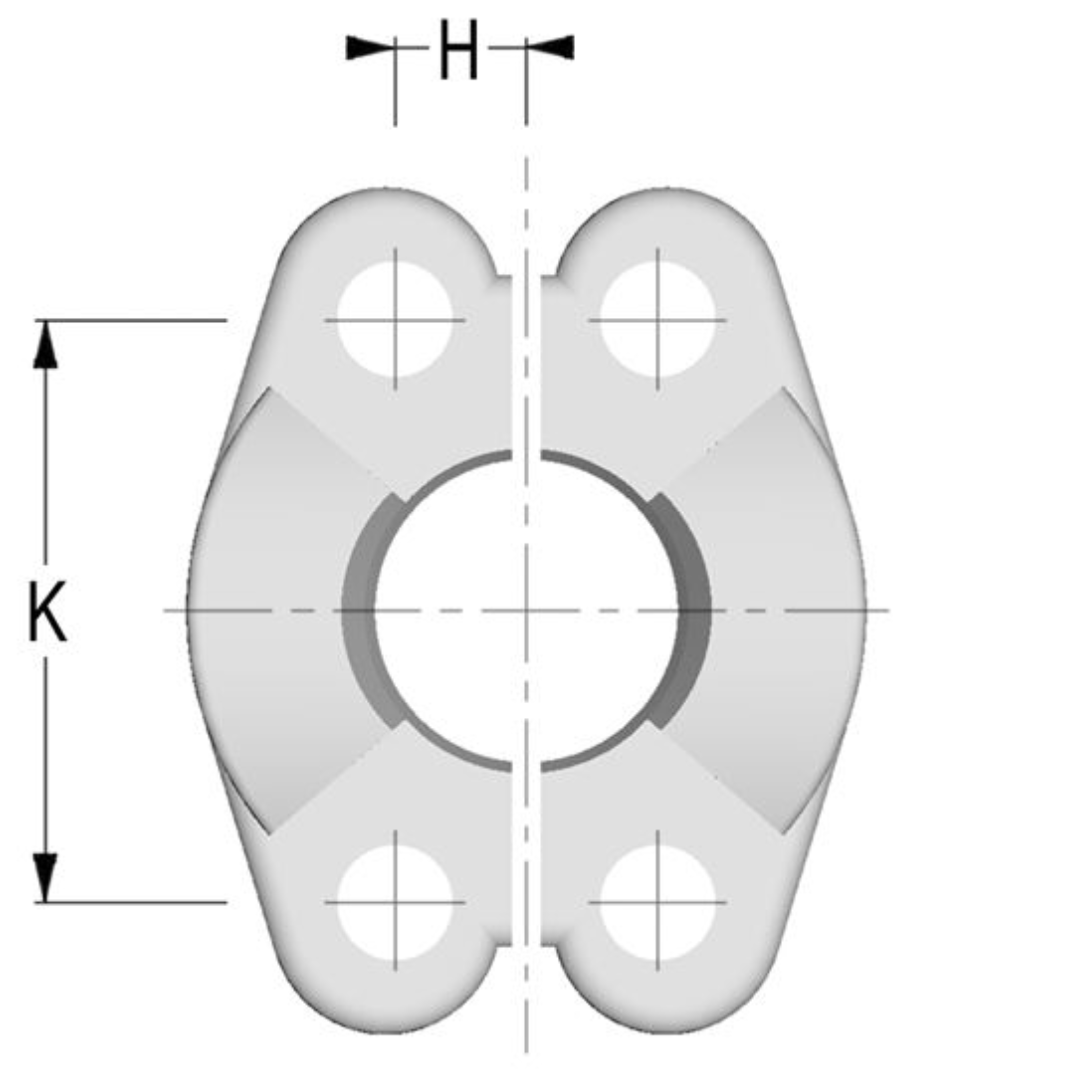

Alfagomma A-C62SF Split Flange Clamps are designed to securely connect hoses in high-pressure systems, specifically those operating at up to 6000 PSI. These clamps are made from durable carbon steel and are used with SAE J518 Code 62 split flanges, which are common in industrial fluid systems. The split flange clamps come in two pieces (halves) that are assembled together to form a tight, leak-proof seal around the hose and fitting. These fittings are ideal for use with wire and textile braided hoses, thermoplastic hoses, and Flexor 4 and PTFE hoses, covering sizes from ³⁄₁₆" to 2" ID, as well as Alfabiotech 3000 (1 ¼" and 1 ½") and Alfabiotech 4000 (³⁄₈" thru 1 ¼") hoses, including smaller ID spiral wire reinforced hoses. The two-piece design allows for easy installation and maintenance, making them a versatile and reliable choice for fluid power systems. Optimized for heavy-duty use, these clamps ensure a secure connection that withstands high-pressure demands while providing excellent performance and durability.
