Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Split Flange |
| Pressure Rating | 3000 |
| Fitting Style | Rigid |
| Series | A-C61SF |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2 |
| Width | 0.5 |
| Weight | 0.22 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | (-) |
| Side 2 Type | Code 61 |
Description

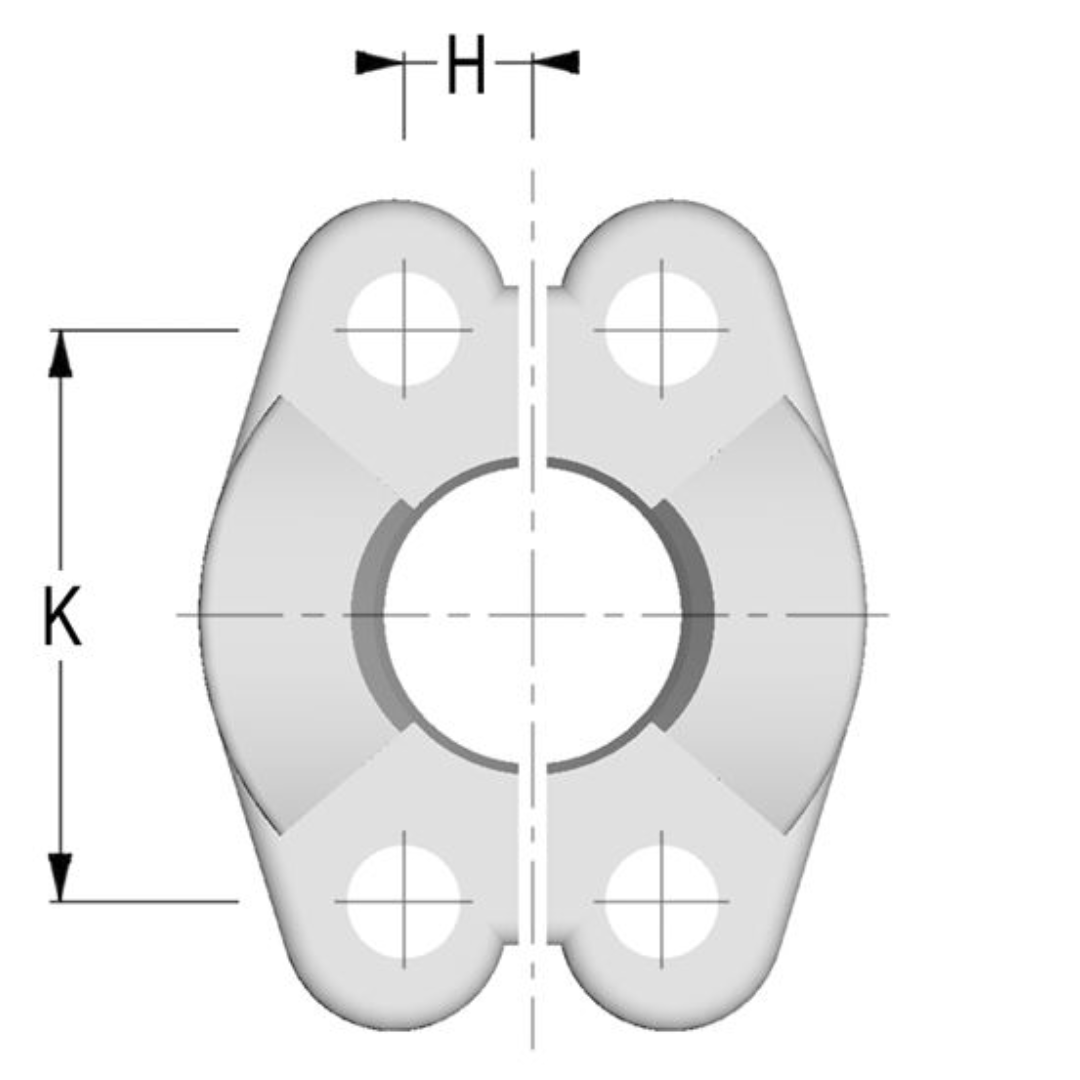

The Alfagomma A-C61SF Split Flange Clamps, made from durable carbon steel, are designed for use with SAE J518 Code 61, offering a 3000 PSI pressure rating. These split flanges come in two halves, which are assembled around the hose to create a strong, leak-proof connection. They are ideal for use with a wide range of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and Alfabiotech hoses, in sizes ranging from ³⁄₁₆" to 2" ID, and 1 ¼" to 1 ½" for Alfabiotech 3000. The A-C61SF split flange clamps ensure a secure, high-pressure seal, and their two-piece design allows for easy maintenance and installation. These clamps are commonly used in heavy-duty fluid power applications, where flexibility, reliability, and ease of maintenance are critical. The two-piece design provides flexibility in installation and ease of use.
