Product Details
| Usually Ships Within | 4-6 Weeks |
|---|---|
| Material | Steel |
| Shape | Straight |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 3/4-16 (-08) |
| Side 1 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
| Side 2 Gender | MALE |
| Side 2 Size | 3/4-16 (-08) |
| Side 2 Type | JIC |
Description

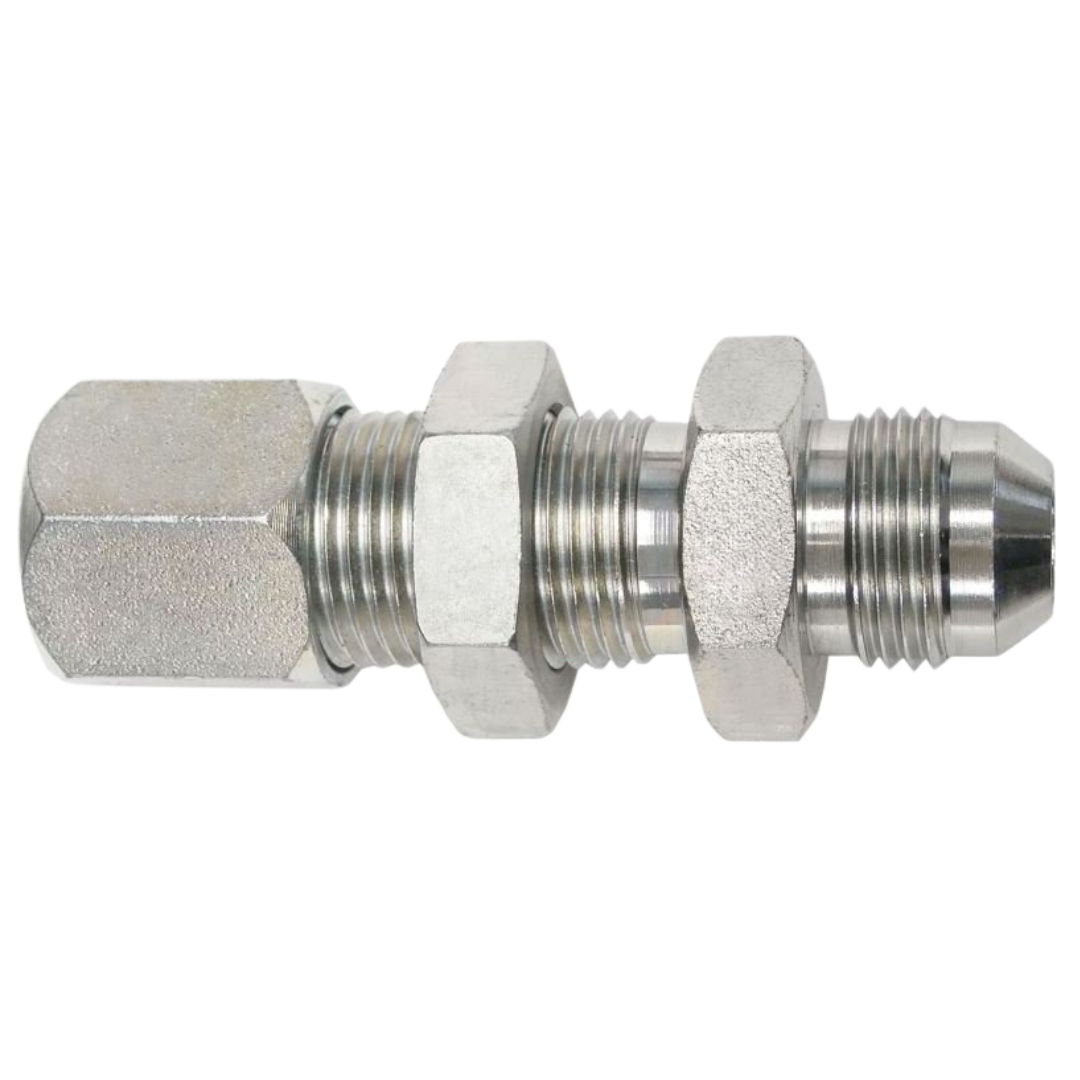

The Series C2707 Straight Bulkhead Flareless Bite Type Tube Compression x Male JIC Adapters, made from high-quality carbon steel, are designed to provide secure and leak-free connections in hydraulic and fluid systems. These adapters feature a bulkhead-style design, enabling them to be installed through panels or control boards while connecting a flareless bite-type tube compression fitting on one side and a male JIC (Joint Industry Council) connection on the other. The flareless bite-type connection uses a ferrule to compress the tube against the fitting, ensuring a reliable, leak-proof seal without the need for flaring. The male JIC side provides a 37-degree flare seating surface, creating a strong mechanical seal. These adapters are ideal for high-pressure applications in industries such as oil and gas, manufacturing, and fluid control, offering durability and consistent performance.
