Product Details
| Usually Ships Within | 1-3 Days |
|---|---|
| Material | Steel |
| Shape | Tee |
| Country of Manufacture | India |
| Side 1 Gender | FEMALE |
| Side 1 Size | 7/16-20 (-04) |
| Side 1 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
| Side 2 Gender | FEMALE |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPT |
| Side 3 Gender | FEMALE |
| Side 3 Size | 7/16-20 (-04) |
| Side 3 Type | FLARELESS BITE TYPE TUBE COMPRESSION |
Description

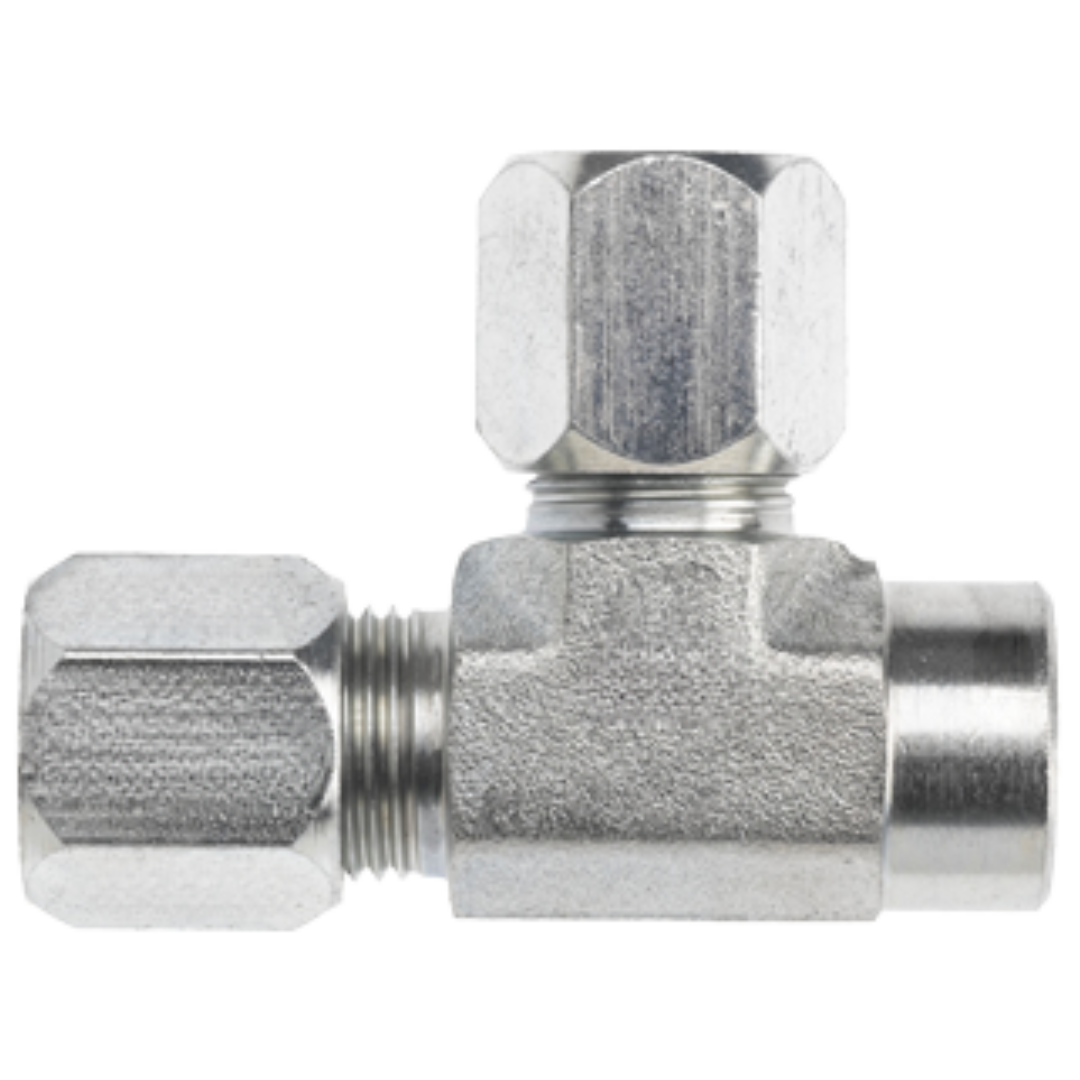

The Series C2606 Tee Adapter, Flareless Bite Type Tube Compression x Female NPT x Flareless Bite Type Tube Compression Run Tee Adapter, made from high-quality carbon steel, is a versatile fitting designed to provide secure, leak-tight connections in hydraulic and fluid systems. This adapter features flareless bite type tube compression connections on both ends, ensuring a strong mechanical grip on the tubing, while the central section has a Female NPT (National Pipe Tapered) connection for threaded pipe attachment. The flareless design allows for a reliable seal without the need for flaring, making it ideal for medium to heavy-walled tubing applications. This carbon steel tee adapter is perfect for use in industrial settings like oil and gas, chemical processing, and manufacturing, where durability and efficiency are critical.
