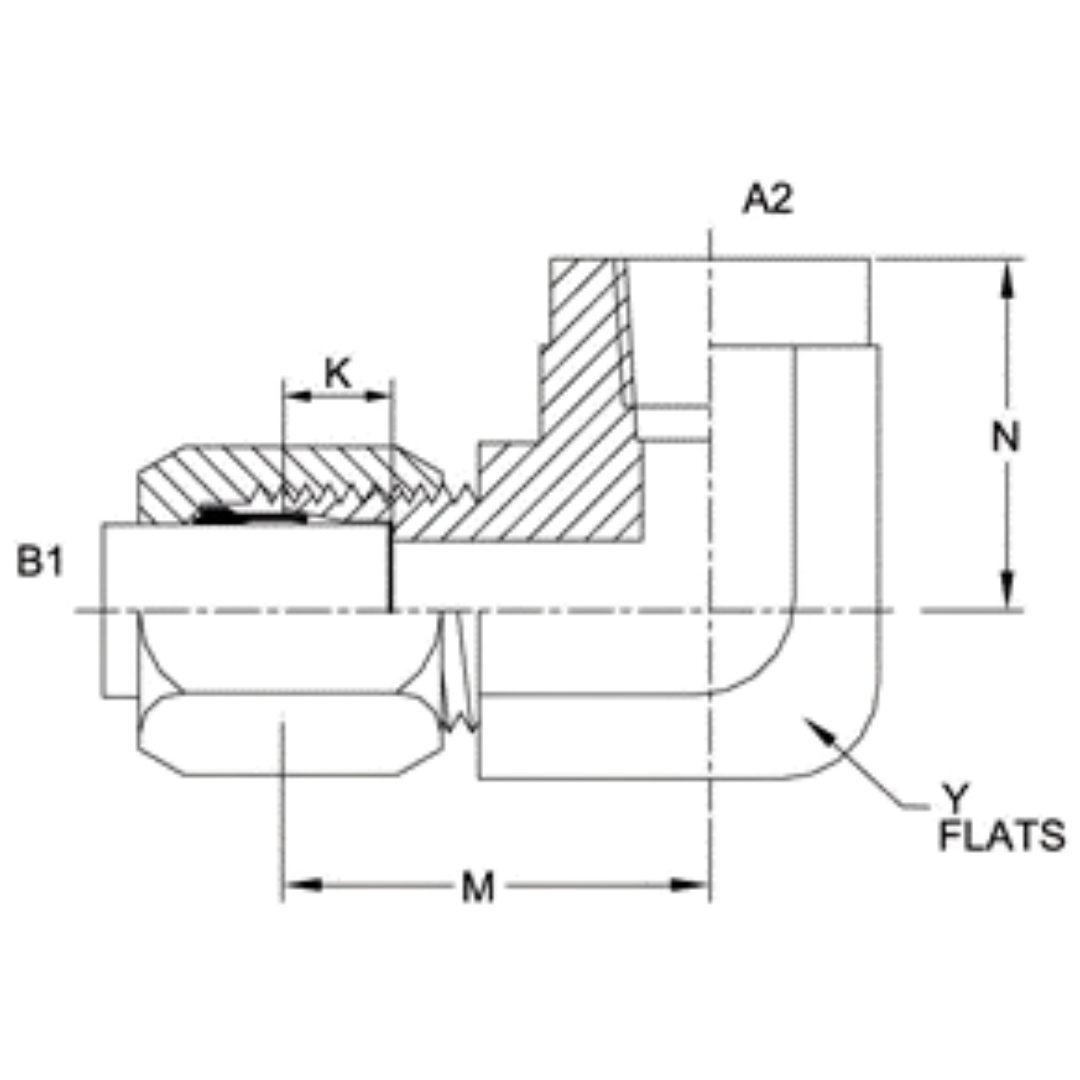

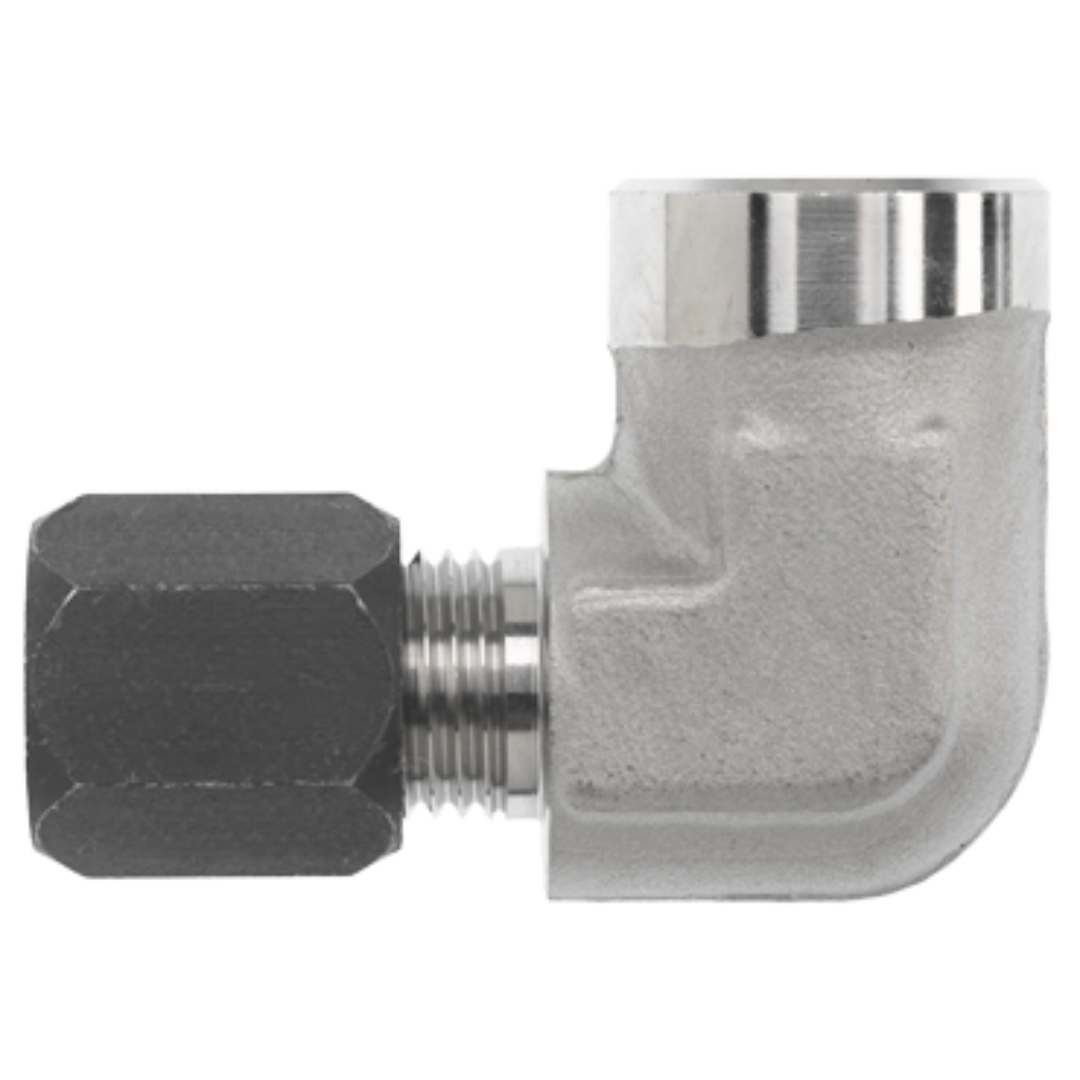

C2502-16-16-FG : OneHydraulics 90-Degree Steel Adapter, 1-5/16-12 (-16) Flareless Bite Type Tube Compression x 1-11-1/2 (-16) Female NPT

The Series C2502 90-Degree Angled Flareless Bite Type Tube Compression x Female NPT Adapters, made from durable carbon steel, are designed to create secure, leak-proof connections in hydraulic and fluid systems. These adapters feature a 90-degree angle, ideal for efficient tubing routing in tight or constrained spaces. The flareless bite-type design uses a ferrule to compress around the tube, forming a reliable seal without the need for flaring. One end of the adapter connects to the tubing through a compression fitting, while the other end features a female NPT (National Pipe Tapered) thread, which ensures a strong, leak-free connection through metal-to-metal sealing. These carbon steel adapters are widely used in industrial applications where high pressure and reliability are essential for smooth fluid transfer and system performance.
