Product Details
| Data Sheet | Download Datasheet |
|---|---|
| Usually Ships Within | 1-2 Weeks |
| Factory Location | Wheatfield, NY |
| Port Size | 3/4" NPT |
| O Ring Seals | Buna |
| Pressure Rating | 3000 |
| Body Material | Carbon Steel |
| Ball Seal | Delrin |
| Ball Pattern | L-Bore Diverter |
| Ball Valve Pressure Range | Medium Pressure (1000 to 4999psi) |
| Flow Style | Three-Way |
| Country of Manufacture | United States |
| Height | 4.73 |
| Length | 3.82 |
| Width | 2.75 |
| Weight | 4.85 |
| Ball Valve Type | Standard |
Description

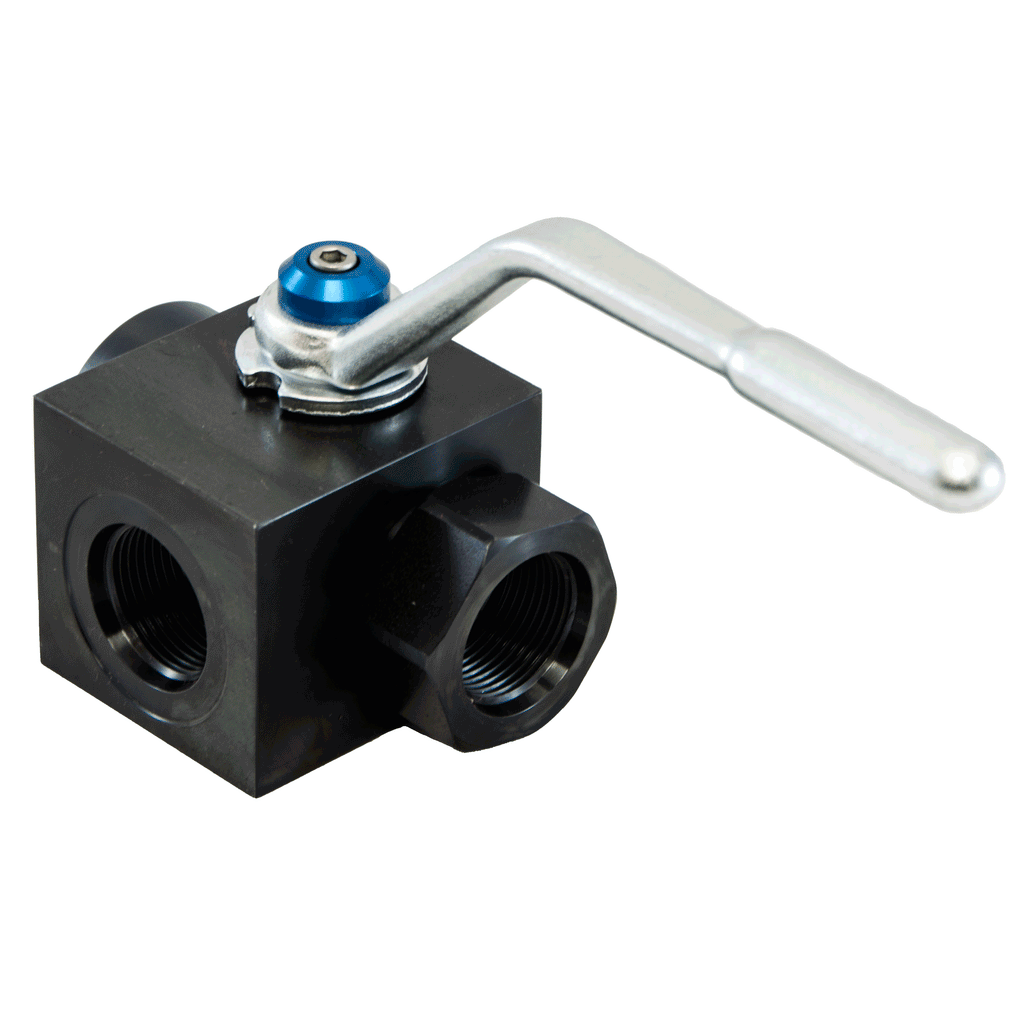

The genuine DMIC BV3D is a 3-way, L-bore diverter derived from the DMIC BVH. DMICs newest high-end CNC equipment and advancements in manufacturing tolerance control allow the BV3D to satisfy many 3-way applications, providing a cost savings relative to a true 3-way valve.
