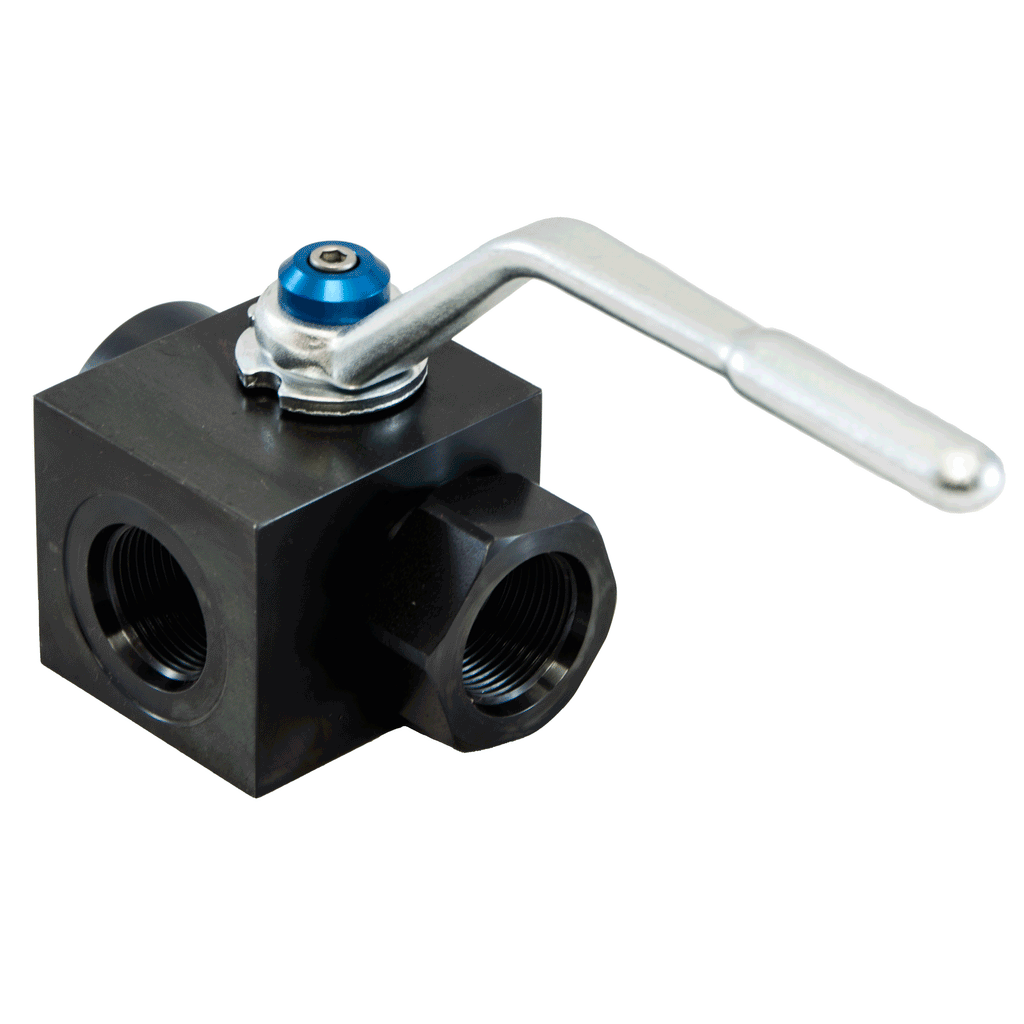

BV3D-0250N-A-2213 : DMIC 3-Way Diverter Ball Valve, 1/4 NPT, 316 Stainless Steel, 3000psi, Three-Way
Roll over image to zoom in Click on image to zoom
BV3D-0250N-A-2213 : DMIC 3-Way Diverter Ball Valve, 1/4 NPT, 316 Stainless Steel, 3000psi, Three-Way

BV3D-0250N-A-2213 : DMIC 3-Way Diverter Ball Valve, 1/4 NPT, 316 Stainless Steel, 3000psi, Three-Way

DMICSKU: BV3D0250NA2213
1-2 Weeks
Price:
$321.73

Product Details

Data Sheet Download Datasheet
Usually Ships Within 1-2 Weeks
Factory Location Wheatfield, NY
Port Size 1/4" NPT
O Ring Seals Buna
Pressure Rating 3000
Body Material 316 Stainless Steel
Ball Seal Delrin
Ball Pattern L-Bore Diverter
Ball Valve Pressure Range Medium Pressure (1000 to 4999psi)
Flow Style Three-Way
Country of Manufacture United States
Height 3
Length 2.72
Width 2
Weight 1.15
Ball Valve Type Standard

Description

The genuine DMIC BV3D is a 3-way, L-bore diverter derived from the DMIC BVH. DMICs newest high-end CNC equipment and advancements in manufacturing tolerance control allow the BV3D to satisfy many 3-way applications, providing a cost savings relative to a true 3-way valve.
