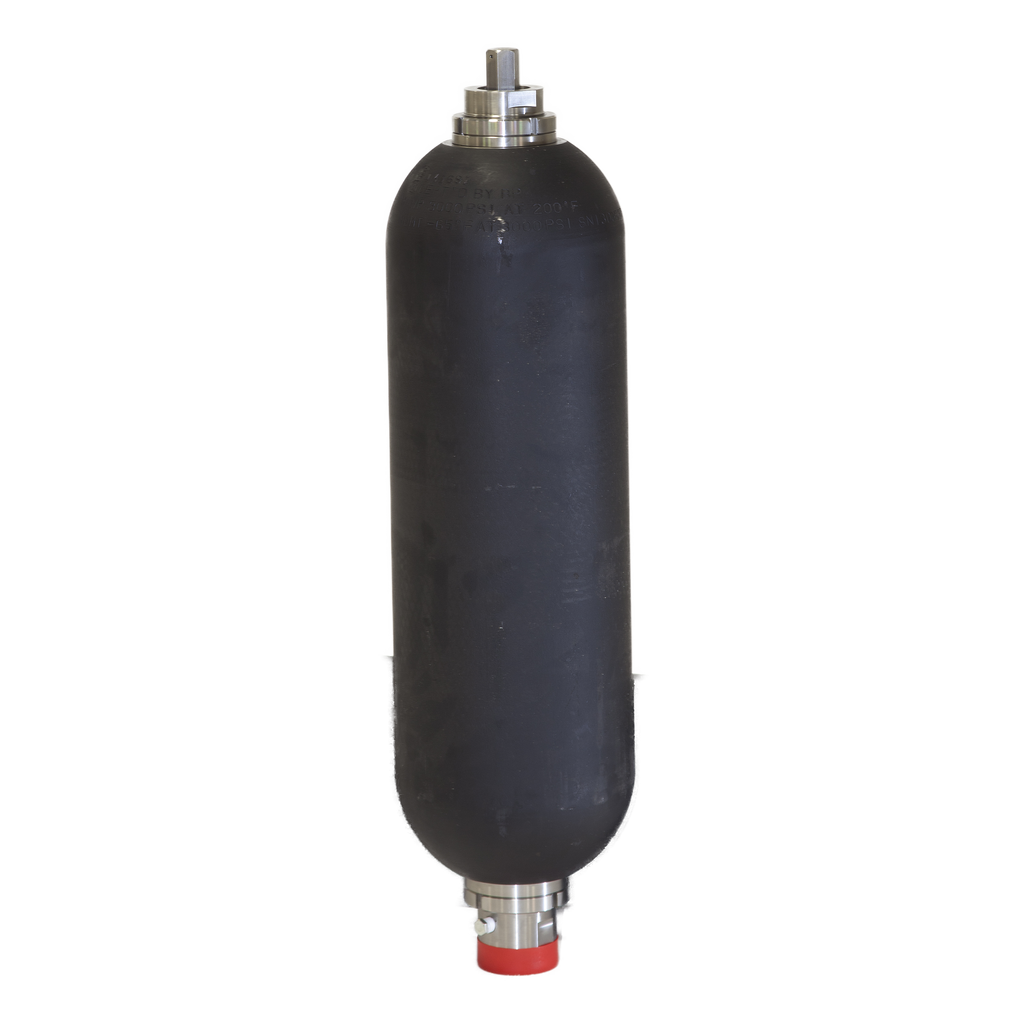

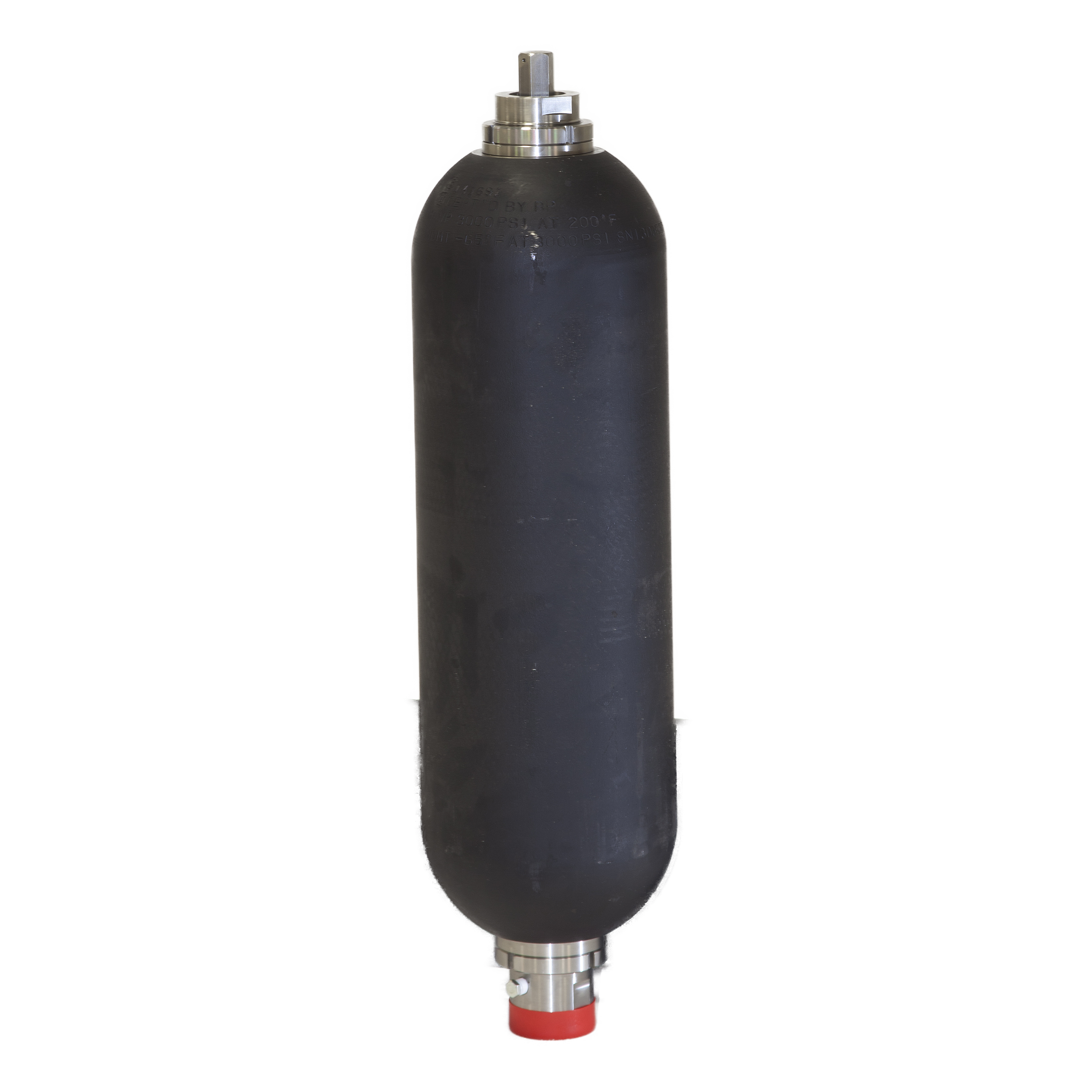

BT20-05-FB-N-O-1-A : SFP Bladder Accumulator, Top Repairable, 5000psi, 5 Gallon (20 Liter), 1.5" Code 62
Roll over image to zoom in Click on image to zoom
BT20-05-FB-N-O-1-A : SFP Bladder Accumulator, Top Repairable, 5000psi, 5 Gallon (20 Liter), 1.5" Code 62

BT20-05-FB-N-O-1-A : SFP Bladder Accumulator, Top Repairable, 5000psi, 5 Gallon (20 Liter), 1.5" Code 62

Save $1,036.01
SFPSKU: BT20-05-FB-N-O-1-A
4-6 Weeks
Price:
$2,332.99 $3,369.00

Product Details

Data Sheet Click here to download
Usually Ships Within 4-6 Weeks
Factory Location Katy, Texas
Port Size 1.5" Code 62
Pressure Rating 5000
Accumulator Type Bladder Accumulator, Top Repairable
Nominal Capacity 5 Gallon (20 Liter)
Bladder Material Nitrile
Country of Manufacture United States
Height 9.56
Length 35.25
Width 9.56
Weight 220

Description

The hydro-pneumatic accumulator stores energy in the form of pressurized hydraulic fluid and releases to the hydraulic system when demanded either immediately or intermittently. A separator between the compressible dry inert gas such as nitrogen and incompressible hydraulic fluid allows the stored fluid to be discharged per the system requirements. The most common type of accumulators are Bladder type which uses bladder as a separator to store gas. SFP based in Houston, TX offers a wide range of bladder accumulator options available for immediate delivery.
