|Data Sheet||Download Datasheet|
|Usually Ships Within||1-2 Weeks|
|Factory Location||Russellville, Alabama|

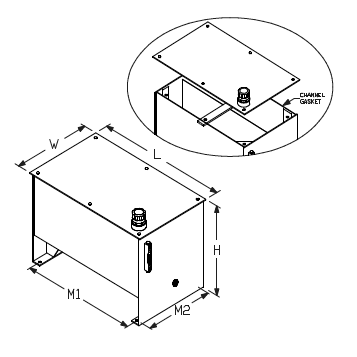

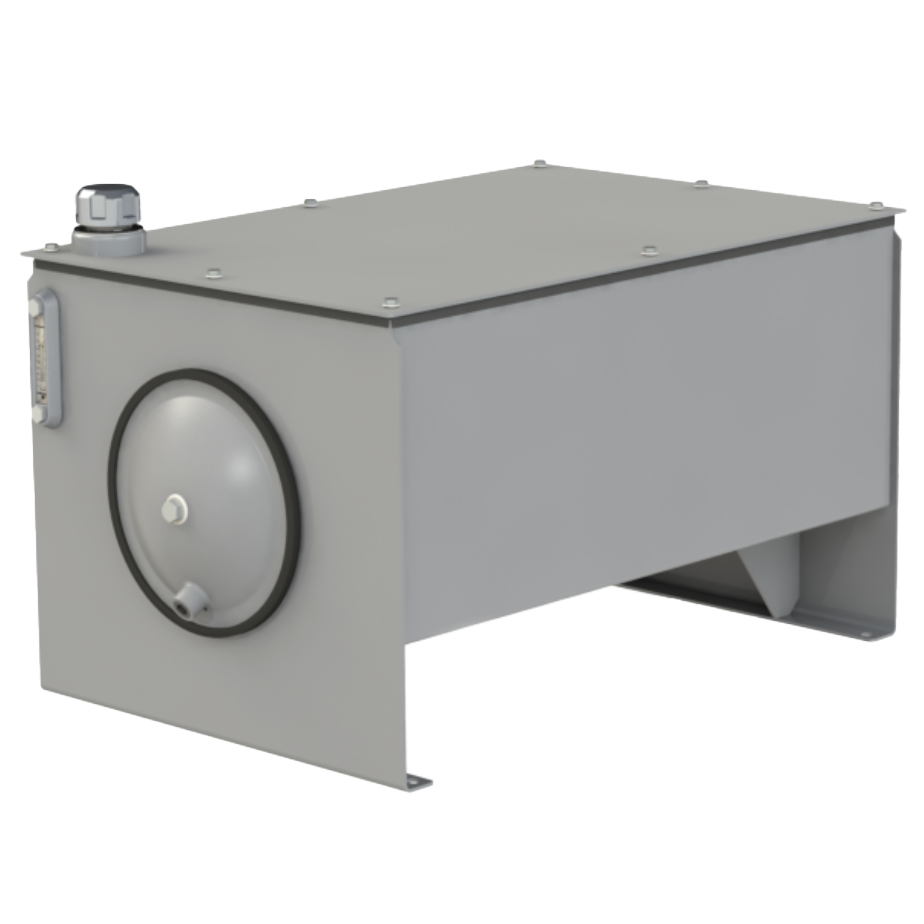

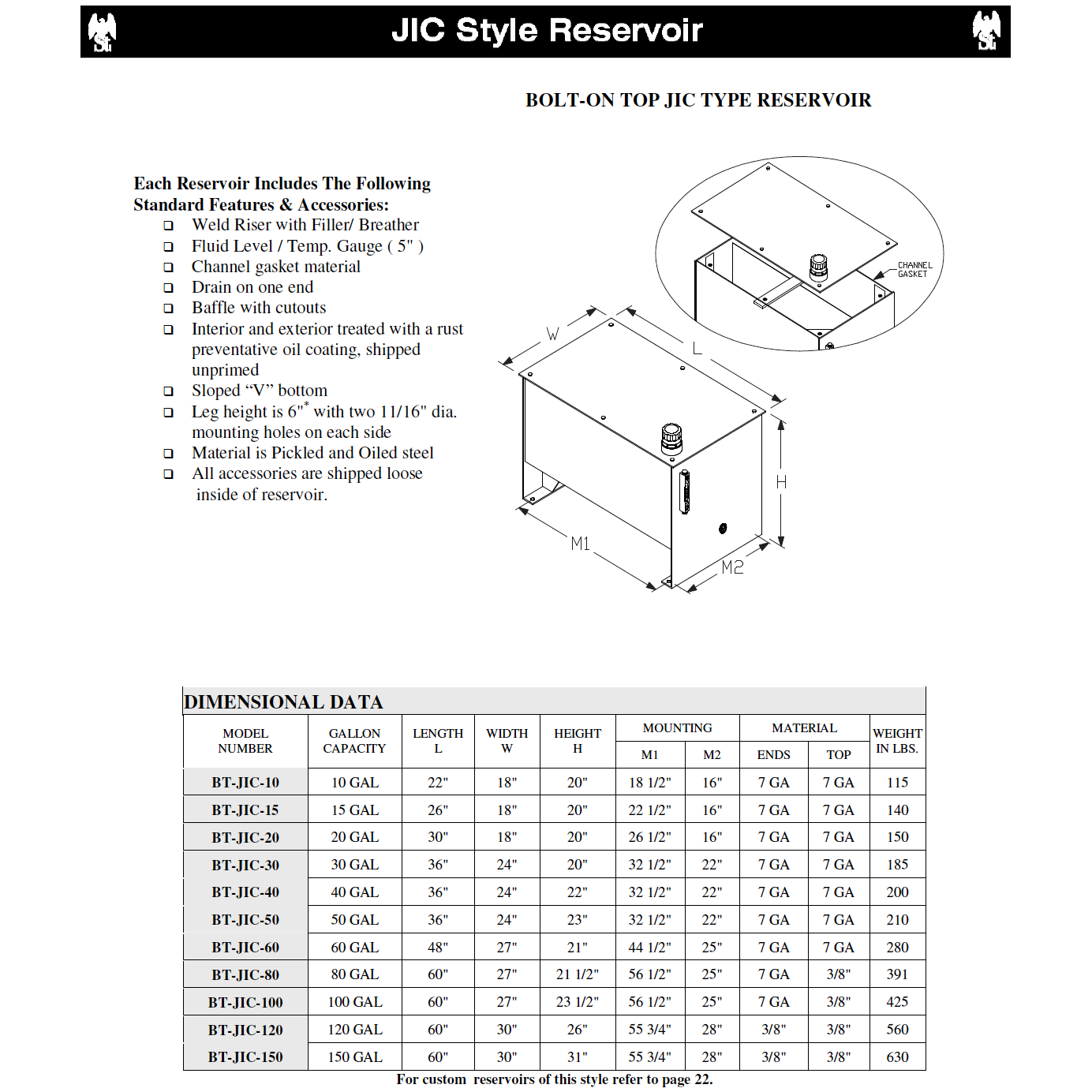

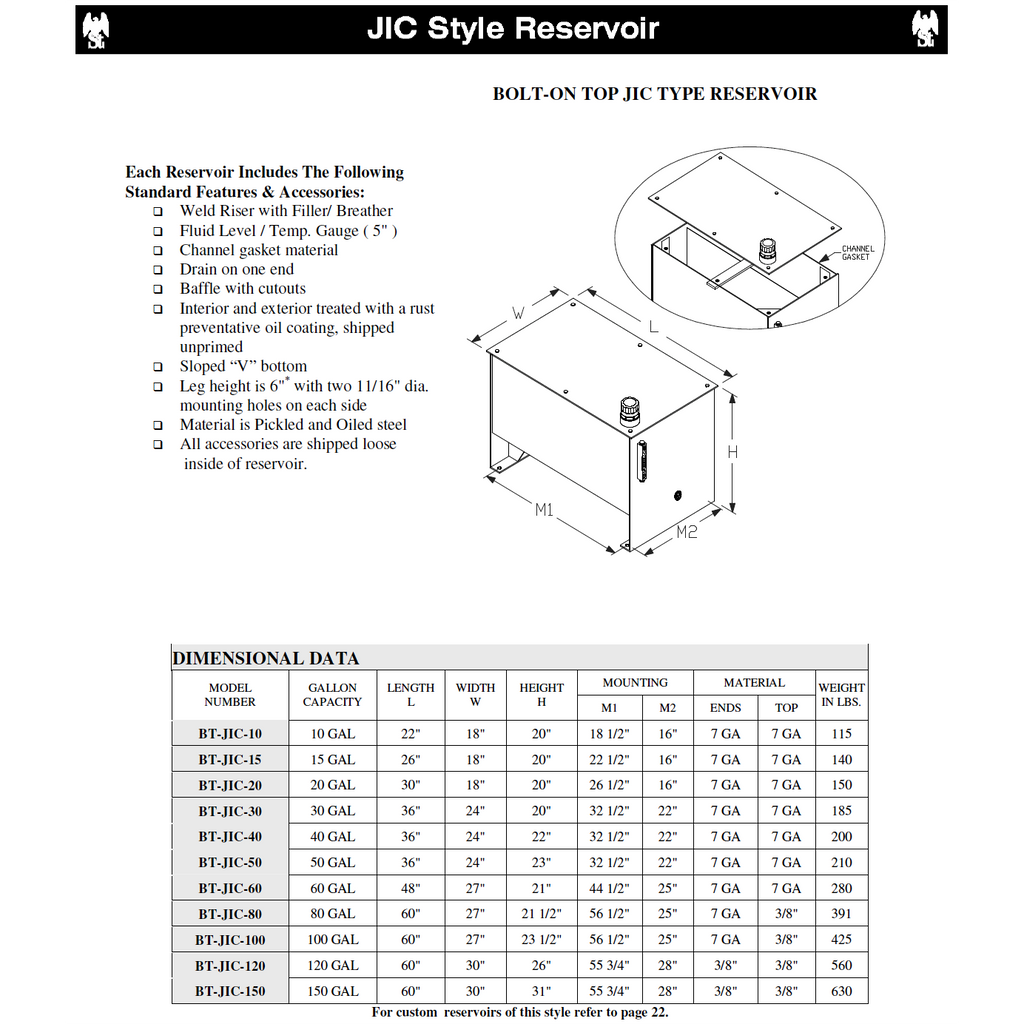

The Saint Machinery BT Series JIC reservoir is a bolt-on-top construction reservoir which INCLUDES weld riser with filler breather, a 5-inch dual fluid level and temperature gauge, two endcovers with seals, a 3/4" NPT drain on one of the endcovers, a baffle with cutouts. Bolt-on-top reservoirs are ideal for applications where you may need to mount a pump inside of the reservoir, or where accessing the interior of the reservoir for installation and servicing is critical. Features include a sloped V bottom, pickled and oiled steel material, an interior and exterior treated with a rust preventative oil coating shipped unprimed, and a leg height of 6 inches with two 11/16 inch diameter mounting holes. ALL ACCESSORIES ARE SHIPPED LOOSE INSIDE THE RESERVOIR and will need to be installed. This prevents damage of the accessories in transit and allows for easier transportation of multiple reservoirs.
