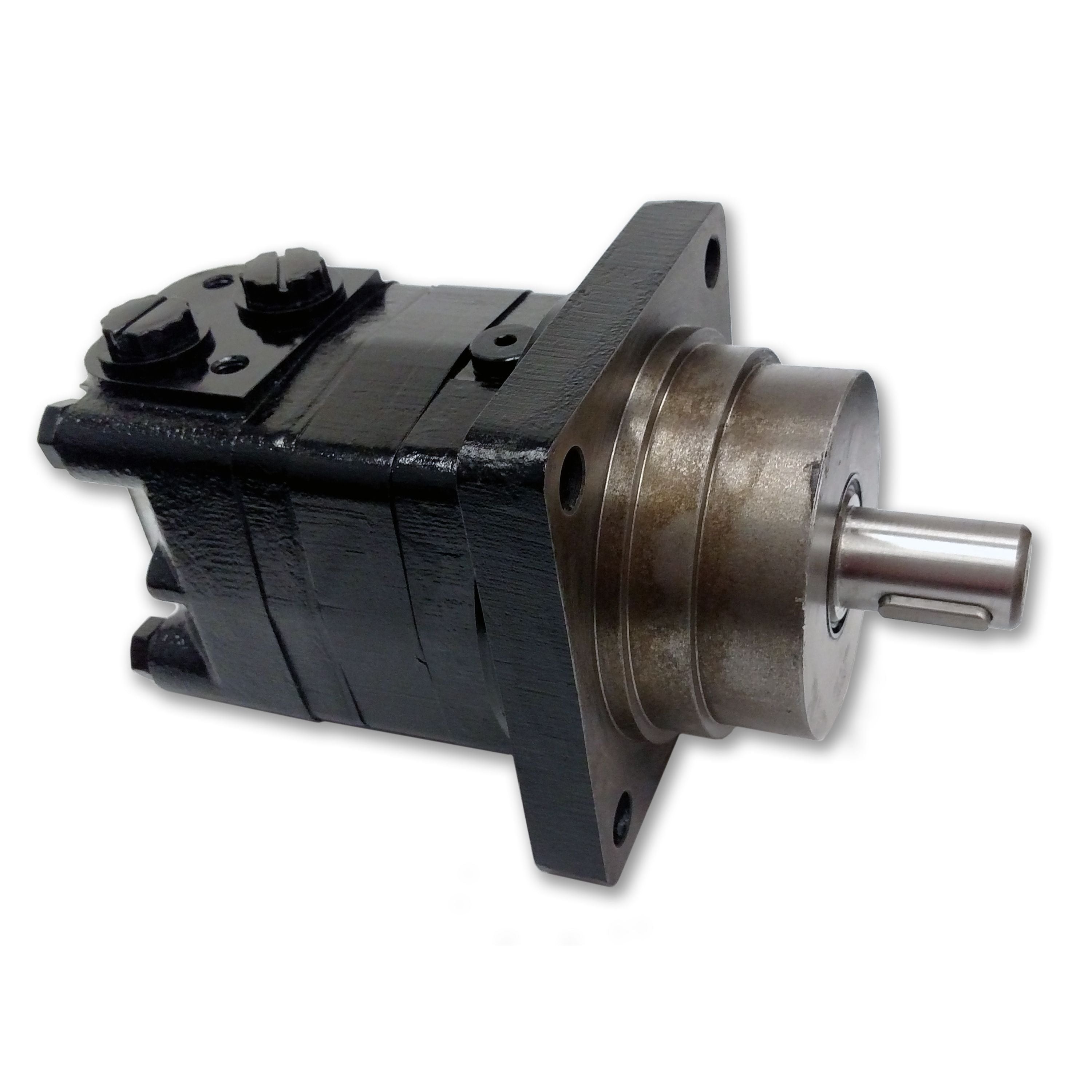

BMSY-200-WE-D-S : Dynamic LSHT Motor, 194cc, 375RPM, 5185in-lb, 3045psi Differential, 19.81GPM, Wheel Mount, 1" Bore x 1/4" Key Shaft, Side Ported, #10 SAE (5/8")
Roll over image to zoom in Click on image to zoom
BMSY-200-WE-D-S : Dynamic LSHT Motor, 194cc, 375RPM, 5185in-lb, 3045psi Differential, 19.81GPM, Wheel Mount, 1" Bore x 1/4" Key Shaft, Side Ported, #10 SAE (5/8")

BMSY-200-WE-D-S : Dynamic LSHT Motor, 194cc, 375RPM, 5185in-lb, 3045psi Differential, 19.81GPM, Wheel Mount, 1" Bore x 1/4" Key Shaft, Side Ported, #10 SAE (5/8")

Save $377.01
Dynamic Fluid ComponentsSKU: BMSY-200-WE-D-S
6-8 Weeks
Price:
$405.99 $783.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size #10 SAE (5/8")
Shaft Size 1" Bore x 1/4" Key
Shaft Type Parallel Keyed
Port Location Side Ported
Flow Rating 19.81
Pressure Rating 3045
Displacement 194
Max Speed 375
Service Parts BMSY Seal Kit
Country of Manufacture China
Height 5.28
Length 7.57
Width 5.28
Weight 26.15

Description

The BMSY series motor adapts the advanced ROLORTORC gear set design with DISC distribution flow and high pressure. These motors can be supplied with various options for multifunctional operations in accordance with the application requirements. The output shaft tapered roller bearings permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
