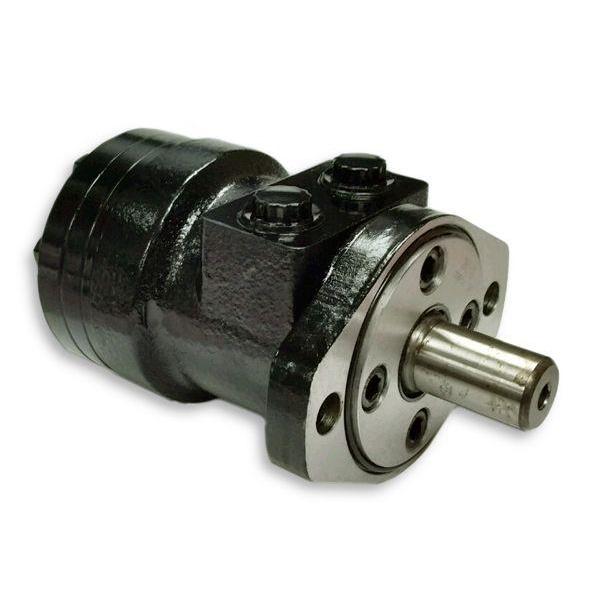

BMRS-50-H2-S-S : Dynamic LSHT Motor, 51.7cc, 960RPM, 885in-lb, 2031psi Differential, 13.21GPM, SAE A 2-Bolt Mount, 6-Tooth Shaft, Side Ported, #10 SAE (5/8")

Save $244.01
Dynamic Fluid ComponentsSKU: BMRS-50-H2-S-S
6-8 Weeks

Price:
Sale price$235.99 Regular price$480.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size #10 SAE (5/8")
Shaft Size 6-Tooth
Shaft Type Spline
Port Location Side Ported
Flow Rating 13.21
Pressure Rating 2031
Displacement 51.7
Max Speed 960
Service Parts BMRS Seal Kit
Country of Manufacture China
Height 5.17
Length 5.67
Width 3.81
Weight 16.2

Description

The BMRS series advanced ROLORTORC gear set, shaft distribution fl ow, hydraulic motor is a compact, low noise, high efficient high torque low speed design. The ROLORTORC gear set also affords a reliable smooth start up at low pressure. BMRS motors are available with optional radial needle bearings (by special order) for side load applications. The low weight advanced construction design is manufactured in accordance with the requirements of ISO 9000-2000 quality system.
