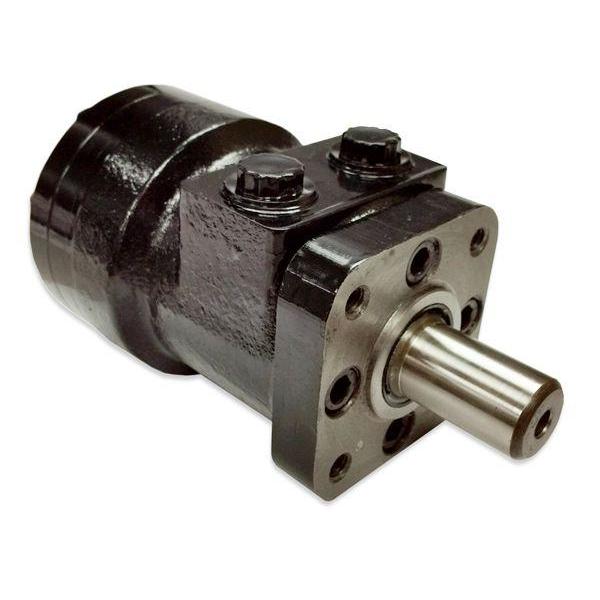

BMPH-400-H4-S-S : Dynamic LSHT Motor, 390cc, 155RPM, 3186in-lb, 1450psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 6-Tooth Shaft, Side Ported, #10 SAE (5/8")
Roll over image to zoom in Click on image to zoom
BMPH-400-H4-S-S : Dynamic LSHT Motor, 390cc, 155RPM, 3186in-lb, 1450psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 6-Tooth Shaft, Side Ported, #10 SAE (5/8")

BMPH-400-H4-S-S : Dynamic LSHT Motor, 390cc, 155RPM, 3186in-lb, 1450psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 6-Tooth Shaft, Side Ported, #10 SAE (5/8")

Save $355.46
Dynamic Fluid ComponentsSKU: BMPH-400-H4-S-S
6-8 Weeks
Price:
$289.79 $645.25

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size #10 SAE (5/8")
Shaft Size 6-Tooth
Shaft Type Spline
Port Location Side Ported
Flow Rating 15.85
Pressure Rating 1450
Displacement 390
Max Speed 155
Service Parts BMRS Seal Kit
Country of Manufacture China
Height 3.28
Length 5.67
Width 3.28
Weight 17.75

Description

The BMPH Rotortorc gear set, shaft distribution fl ow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
